ABS w/ EBD System

DIAGNOSTIC TROUBLE CODE CHART

C0200/31 - C1330/35:

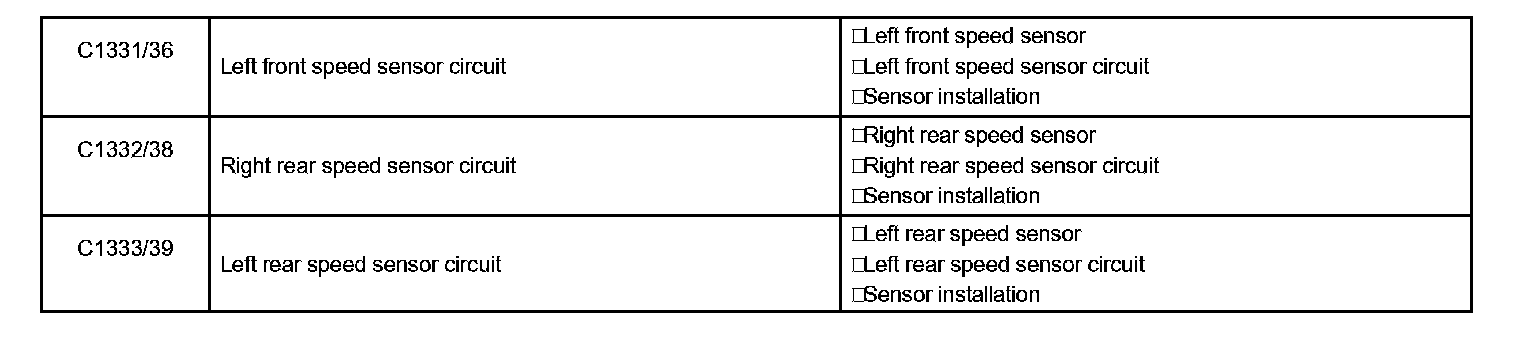

C1331/36 - C1333/39:

NOTE: When removing parts, turn the ignition switch off.

HINT:
- If an abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
- If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the respective "DTC No." in the DTC chart.
- When 2 or more DTCs are detected, perform circuit inspection one by one until the problem is identified.

C1271/71 - C1278/78:

DTC of speed sensor check function:

HINT: The codes in this table are output only in TEST MODE.
