DTC 49

DTC 49 OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This circuit recognizes brake operation by sending a stop lamp signal to the skid control ECU.

Wiring Diagram:

Step 1 - 3:

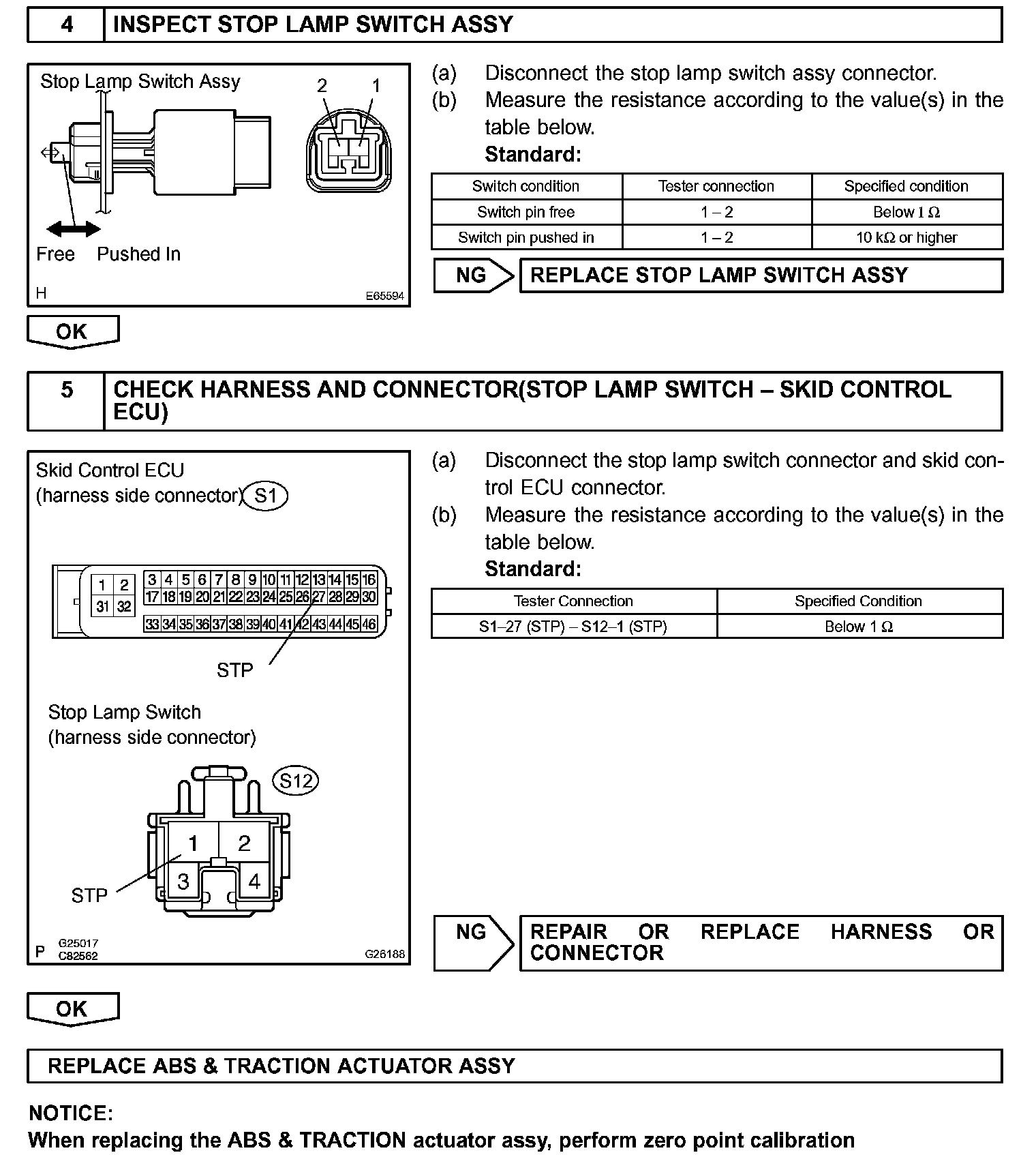

Step 4 - 5:

INSPECTION PROCEDURE
