Navigation System: Service and Repair

Audio & Visual System - Part 1:

NAVIGATION RECEIVER ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
2. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
3. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER




5. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSEMBLY
a. Remove the 4 bolts.
b. Disconnect the connector.
c. Disengage the 4 claws and remove the center cluster integration panel assembly.




6. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER
a. Remove the 4 bolts and instrument cluster finish panel assembly center.




7. REMOVE RADIO RECEIVER BRACKET NO.1
a. Remove the 6 screws and radio receiver bracket No.1.

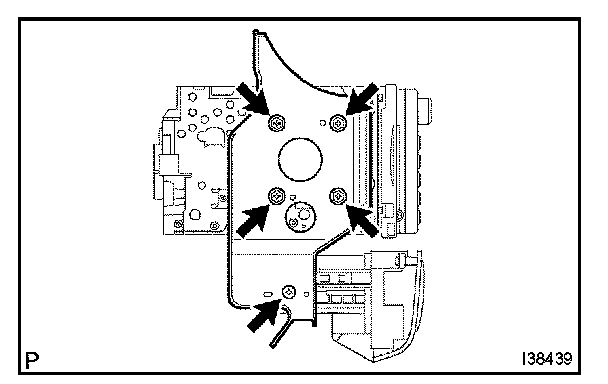

8. REMOVE RADIO RECEIVER BRACKET NO.1
a. Remove the 5 screws and radio receiver bracket No.1.

9. REMOVE NAVIGATION RECEIVER ASSEMBLY
