Home >> Toyota >> 2005 >> Solara V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> A28 - C10

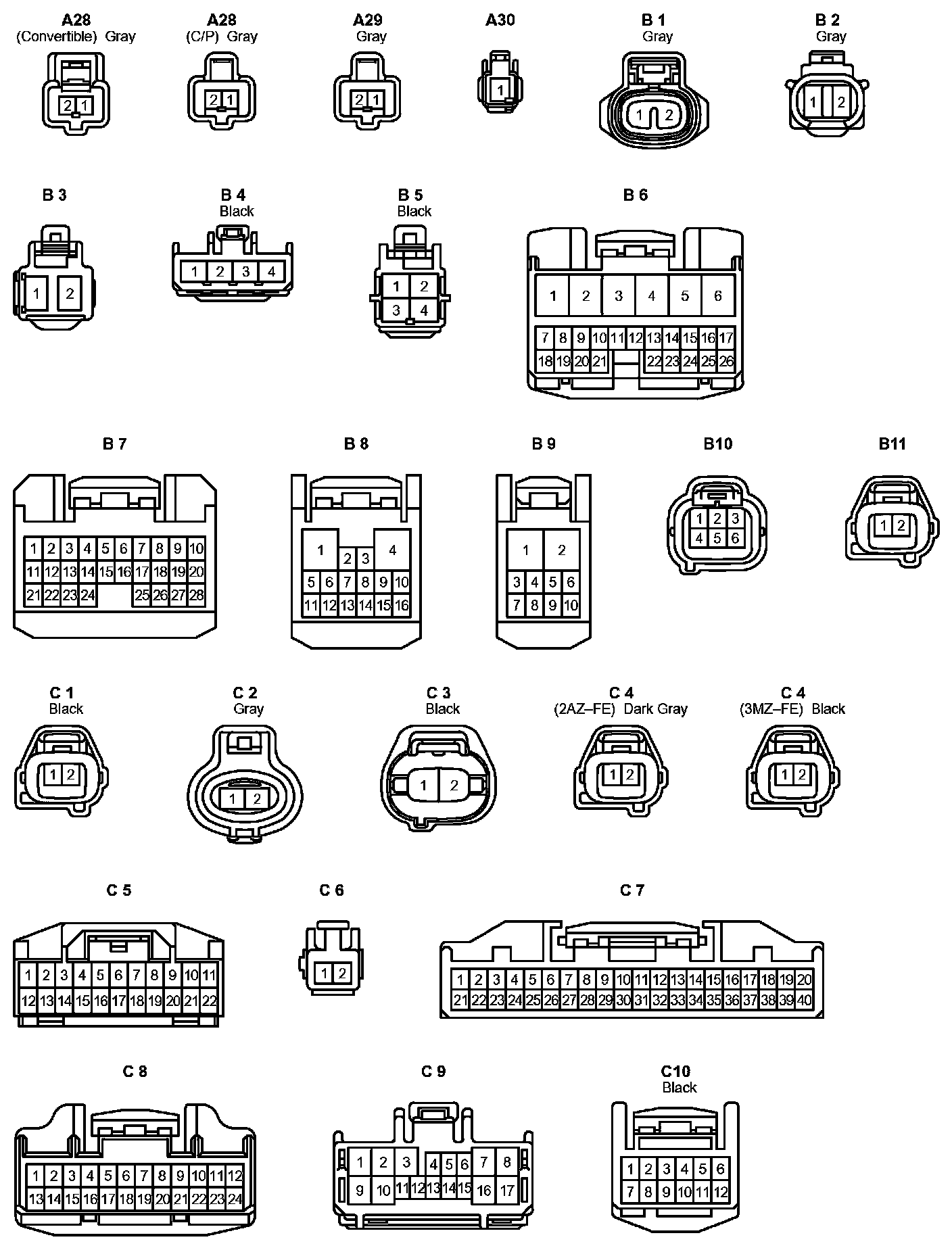

A28 - C10

A28 - C10:
