Home >> Toyota >> 2005 >> Solara V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> E1 - H2

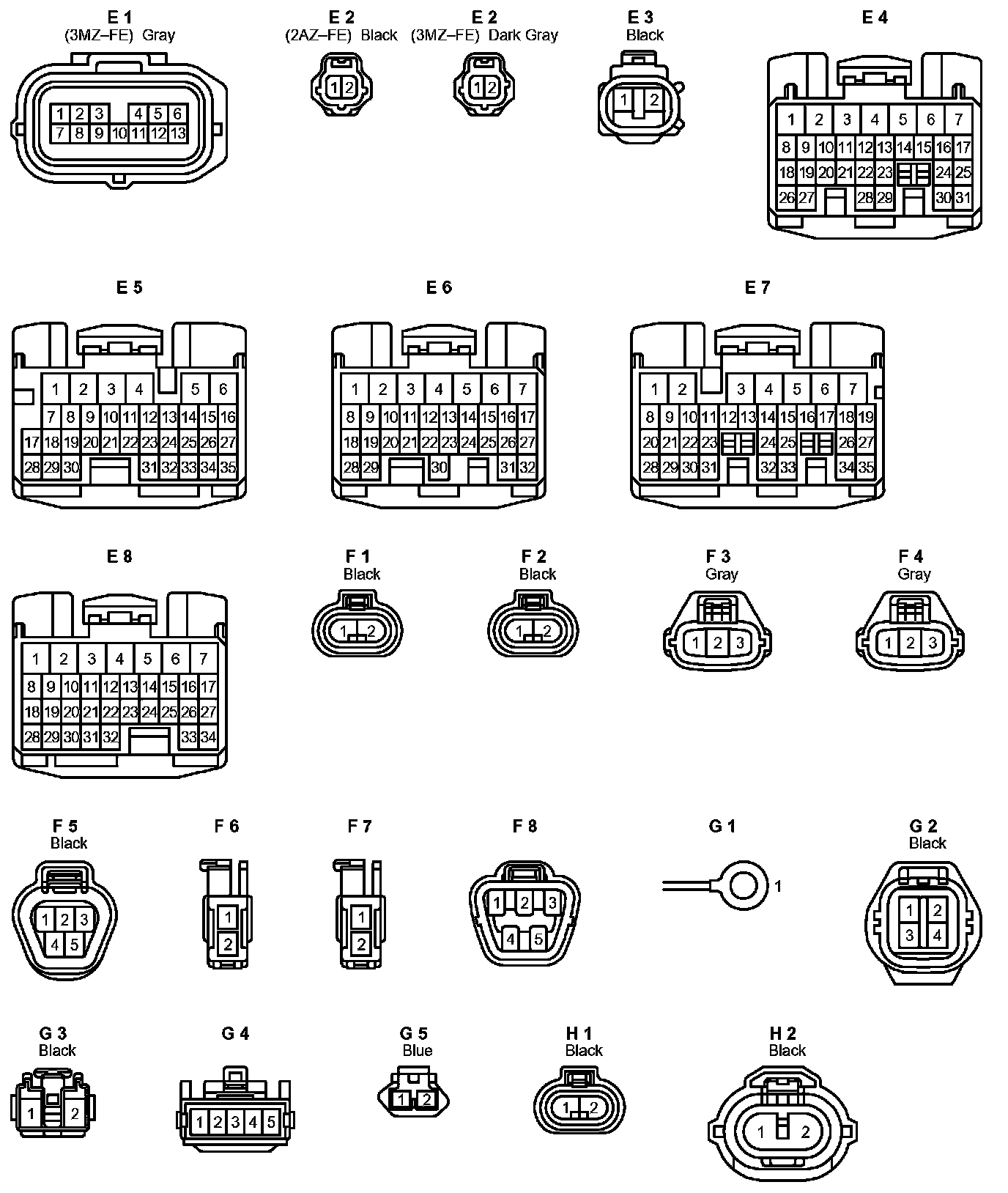

E1 - H2

E1 - H2:
