Instrument Panel, Gauges and Warning Indicators
Instrument Panel, Gauges and Warning Indicators

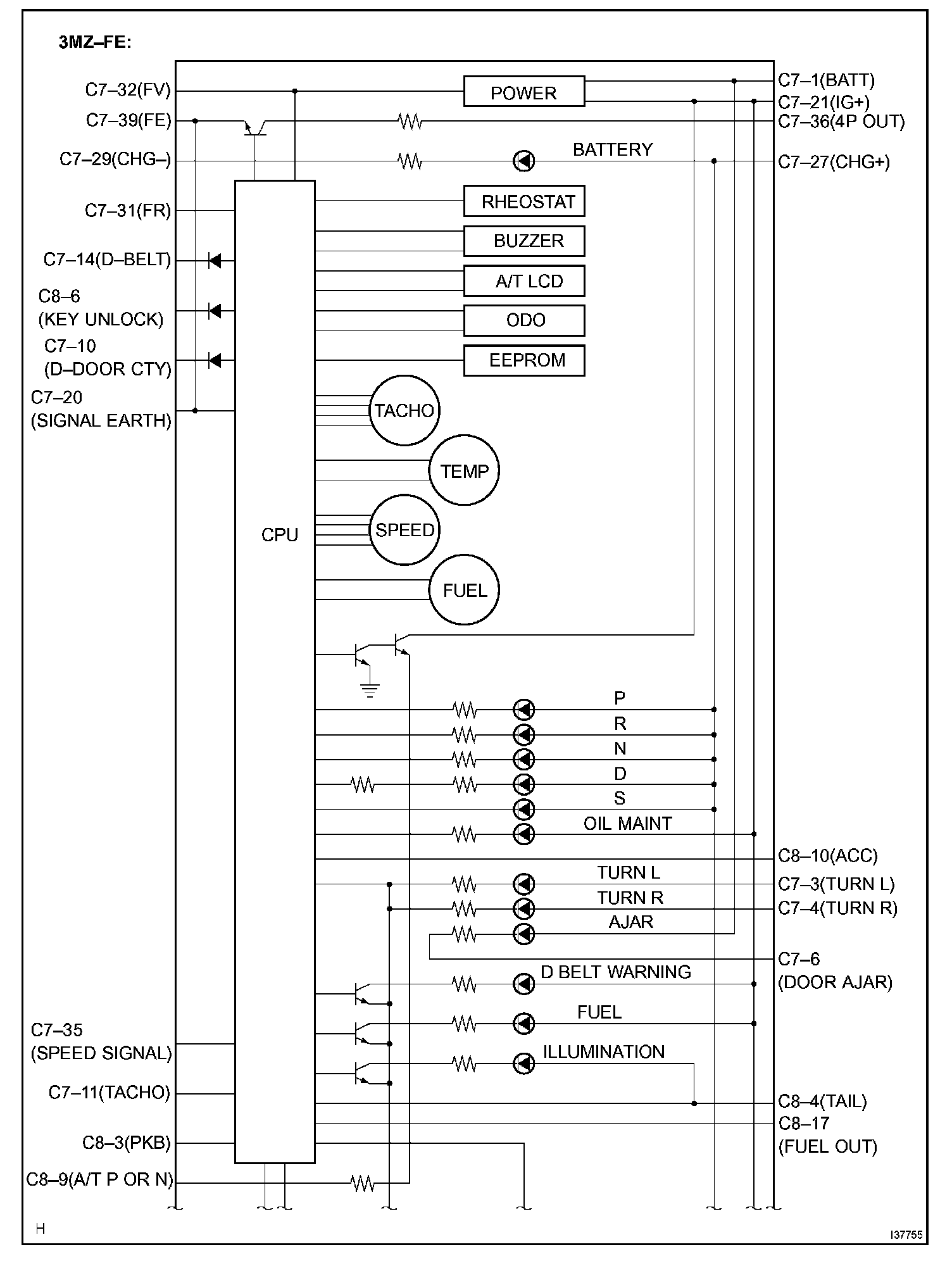

Combination Meter Part 3:
Combination Meter Part 4:
Combination Meter Part 5:
