Blower Motor Relay: Testing and Inspection
HEATER BLOWER MOTOR RELAY ASSEMBLYINSPECTION
1. INSPECT HEATER BLOWER MOTOR RELAY ASSEMBLY (MANUAL AIR CONDITIONING)
a. Remove the relay (heater blower motor relay) from the engine room R/B.

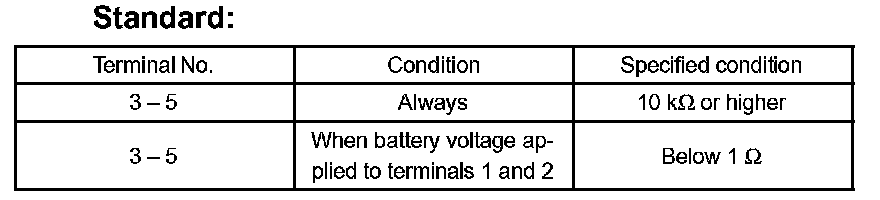

b. Measure the resistance according to the value(s) in the table.
If the resistance is not as specified, replace the blower motor relay.
