Compressor Clutch Relay: Testing and Inspection
MAGNET-CLUTCH RELAYINSPECTION

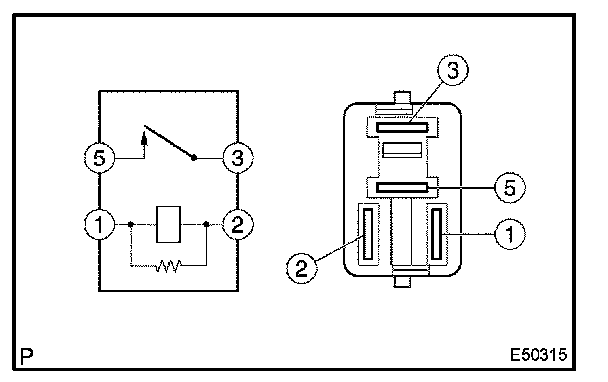

1. INSPECT MAGNET CLUTCH RELAY (MANUAL AIR CONDITIONING)
a. Remove the relay (magnet clutch relay) from the engine room R/B.

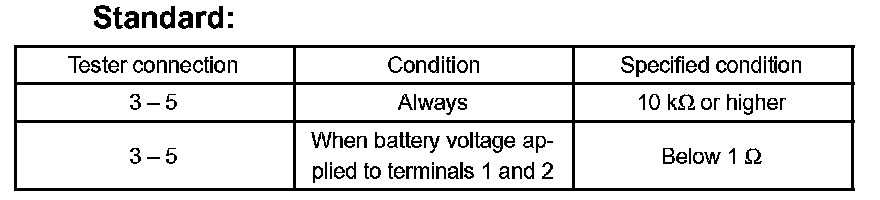

b. Measure the resistance according to the value(s) in the table.
If the resistance is not as specified, replace the magnet clutch relay.
