Compressor HVAC: Testing and Inspection

ON-VEHICLE INSPECTION




1. INSPECT COOLER COMPRESSOR ASSEMBLY

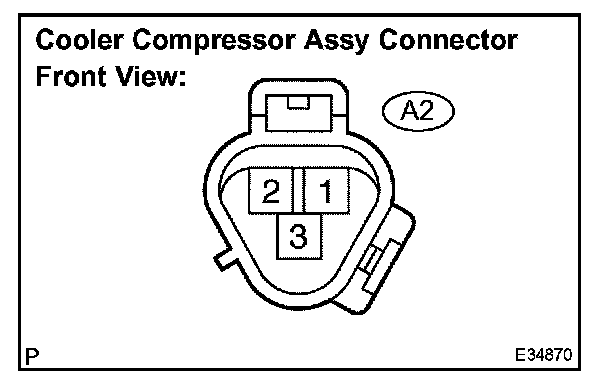

a. Disconnect the cooler compressor assembly connector.

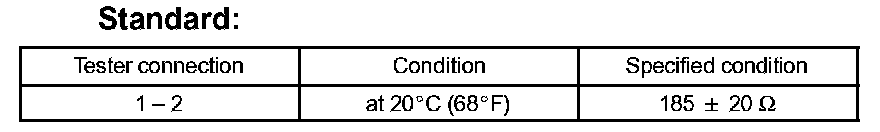

b. Measure the resistance according to the value(s) in the table.
If the resistance is not as specified, replace the cooler compressor assembly.
