Control Assembly: Testing and Inspection

AIR CONDITIONING PANEL SUB-ASSEMBLY

INSPECTION







1. INSPECT AIR CONDITIONING PANEL SUB-ASSEMBLY (MANUAL AIR CONDITIONING)

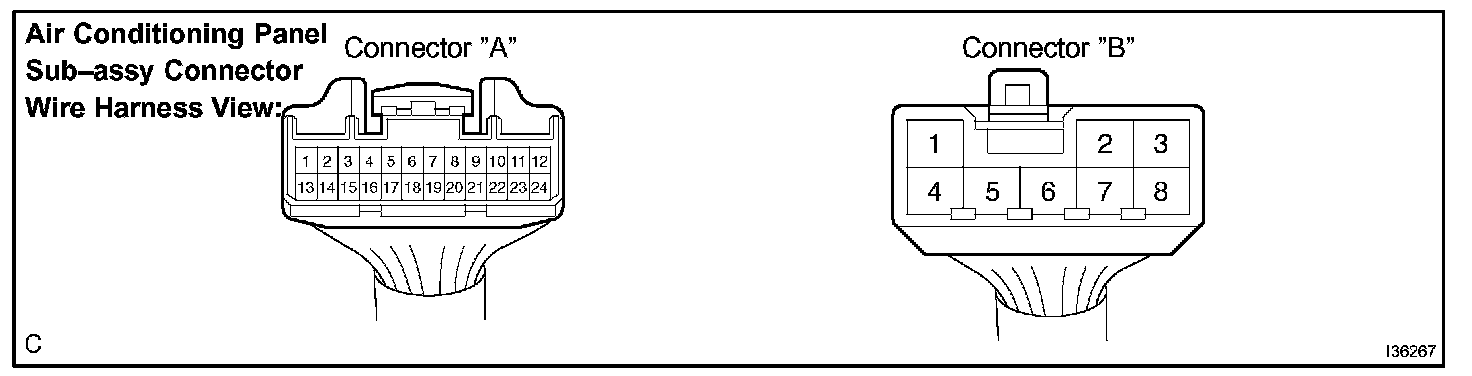

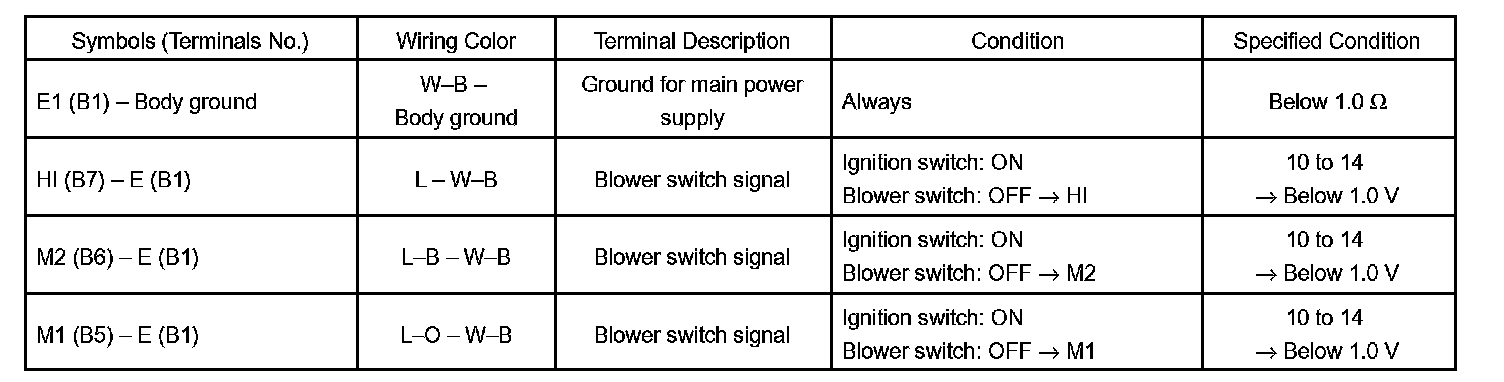

a. Disconnect the connectors from the air conditioning panel sub-assembly and inspect the connectors on the wire harness side, as shown in the chart.
If the circuit is as specified, replace the air conditioning panel sub-assembly with a new one. If the circuit is not as specified, inspect the circuits connected to other parts.

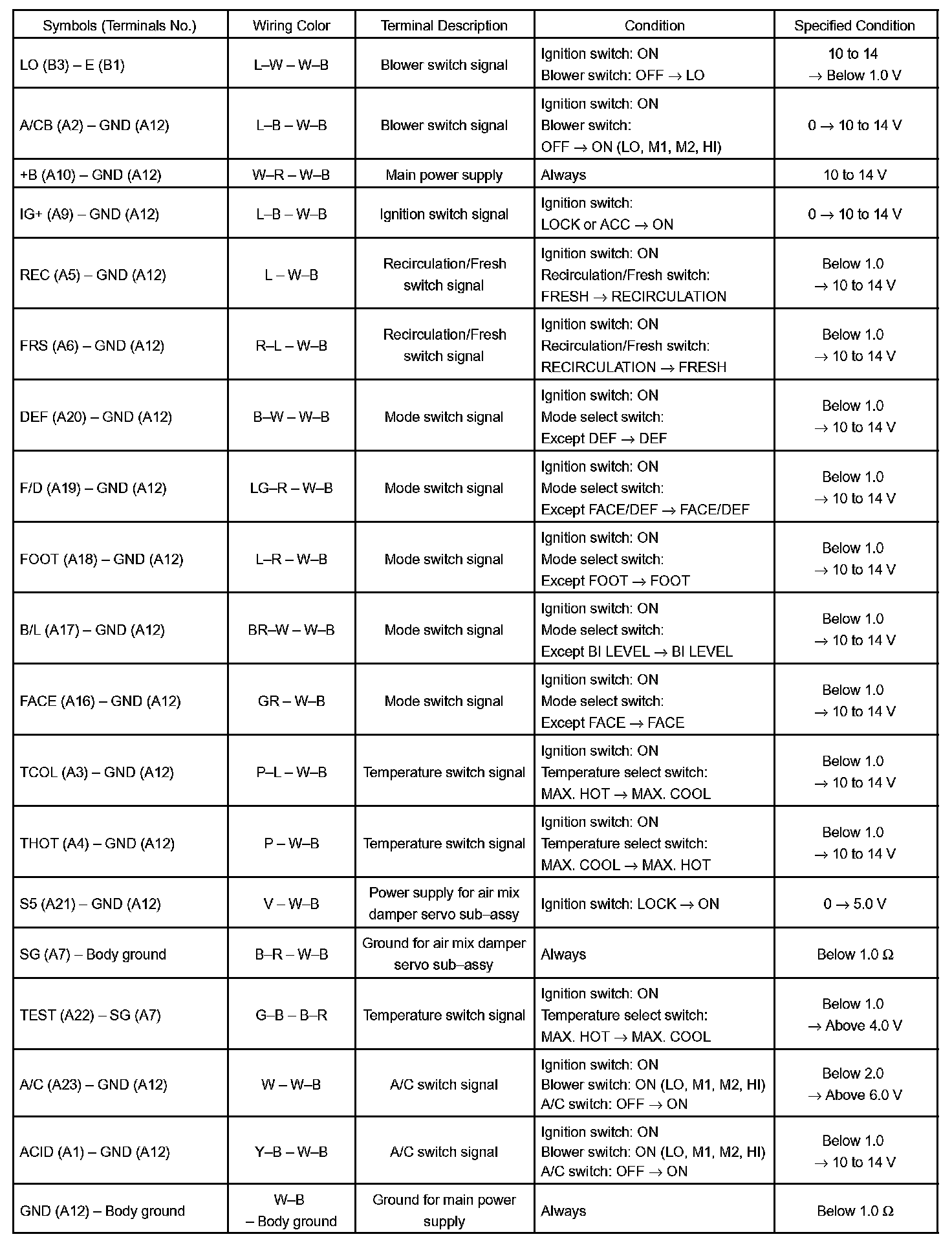

b. Connect the connectors to the heater air conditioning panel sub-assembly and inspect the back side from the wire harness side, as shown in the chart.
If the circuit is as specified, replace the air conditioning panel sub assembly with a new one. If the circuit is not as specified, inspect the circuits connected to other parts.

Waveform:

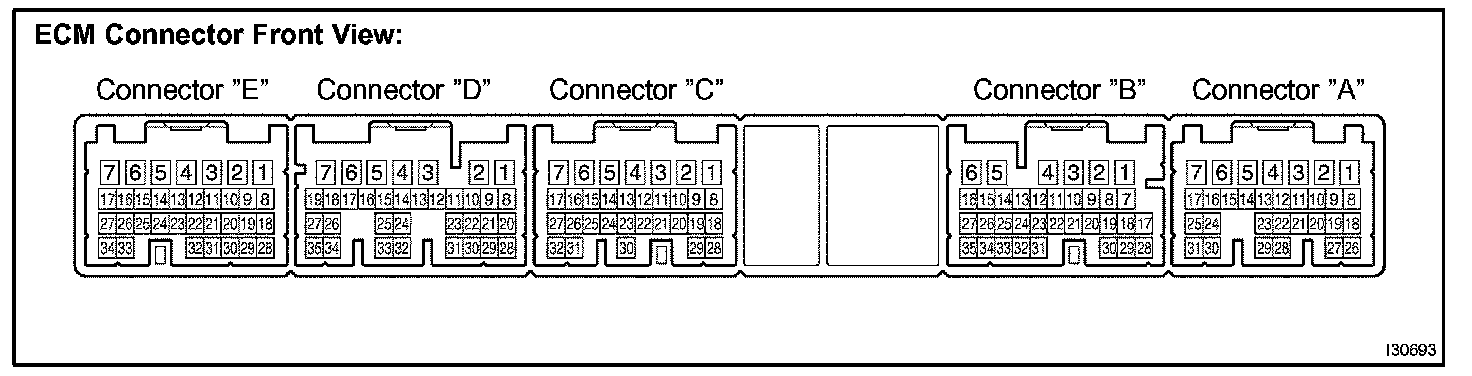

2. INSPECT ECM (MANUAL AIR CONDITIONING)
