Pinout Values and Diagnostic Parameters

Terminals Of Control Module/Pinouts - Combination Meter Assy Part 1:



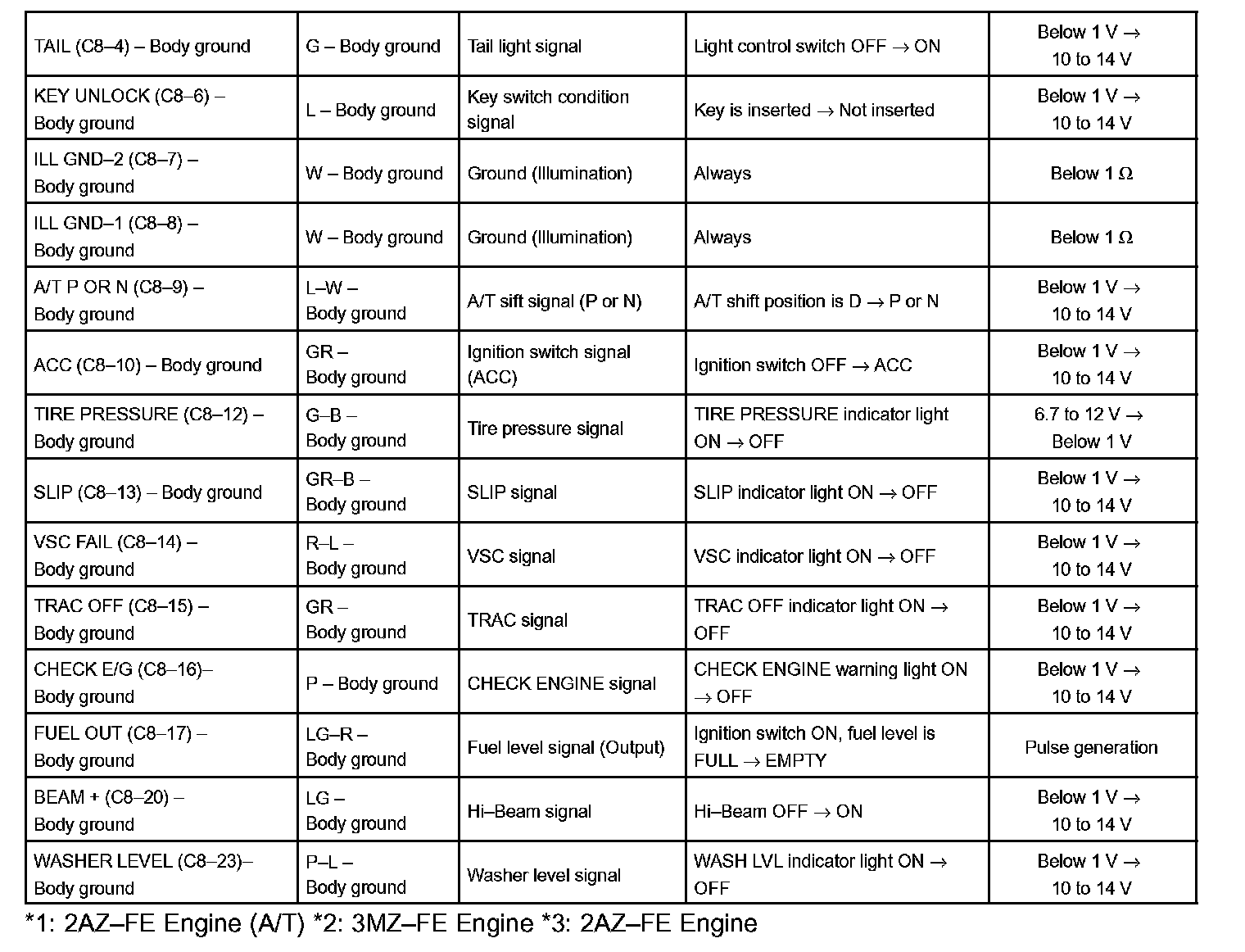

Terminals Of Control Module/Pinouts - Combination Meter Assy Part 2:



Terminals Of Control Module/Pinouts - Combination Meter Assy Part 3:

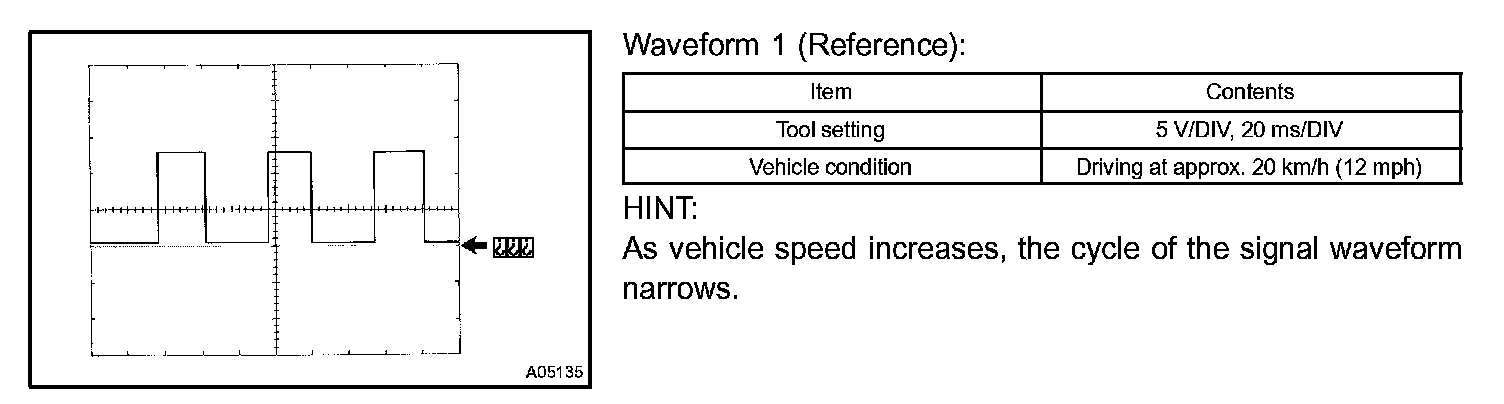

Oscilloscope Waveforms:

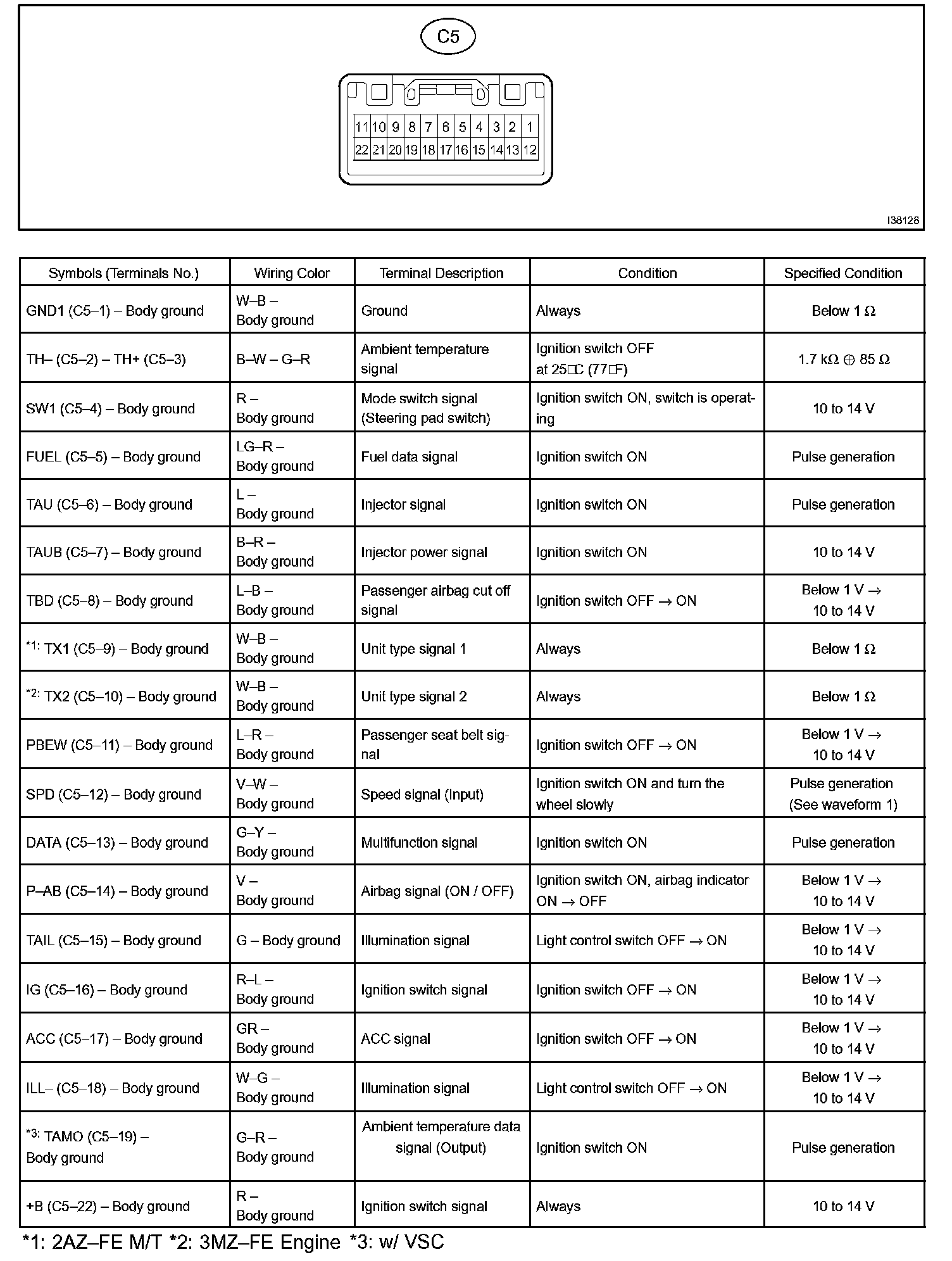

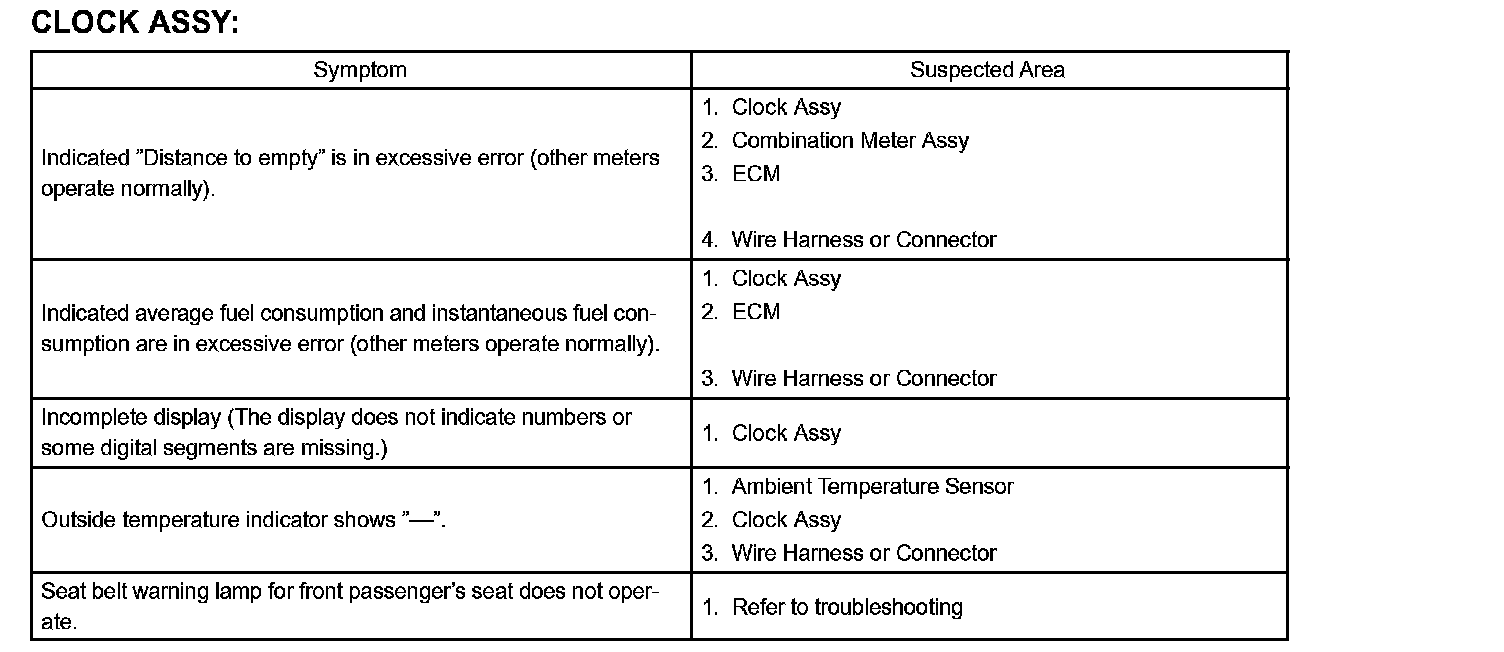

Terminals Of Control Module/Pinouts - Clock Assy:



Oscilloscope Waveforms:
