Brake Light Switch: Testing and Inspection

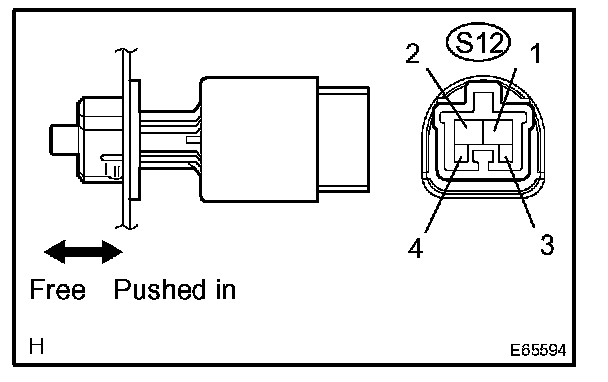

STOP LAMP SWITCH ASSEMBLY
a.

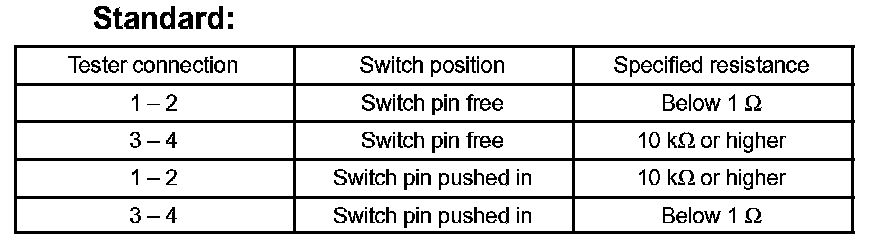

Measure the resistance according to the value(s) in the table.
