Pinout Values and Diagnostic Parameters

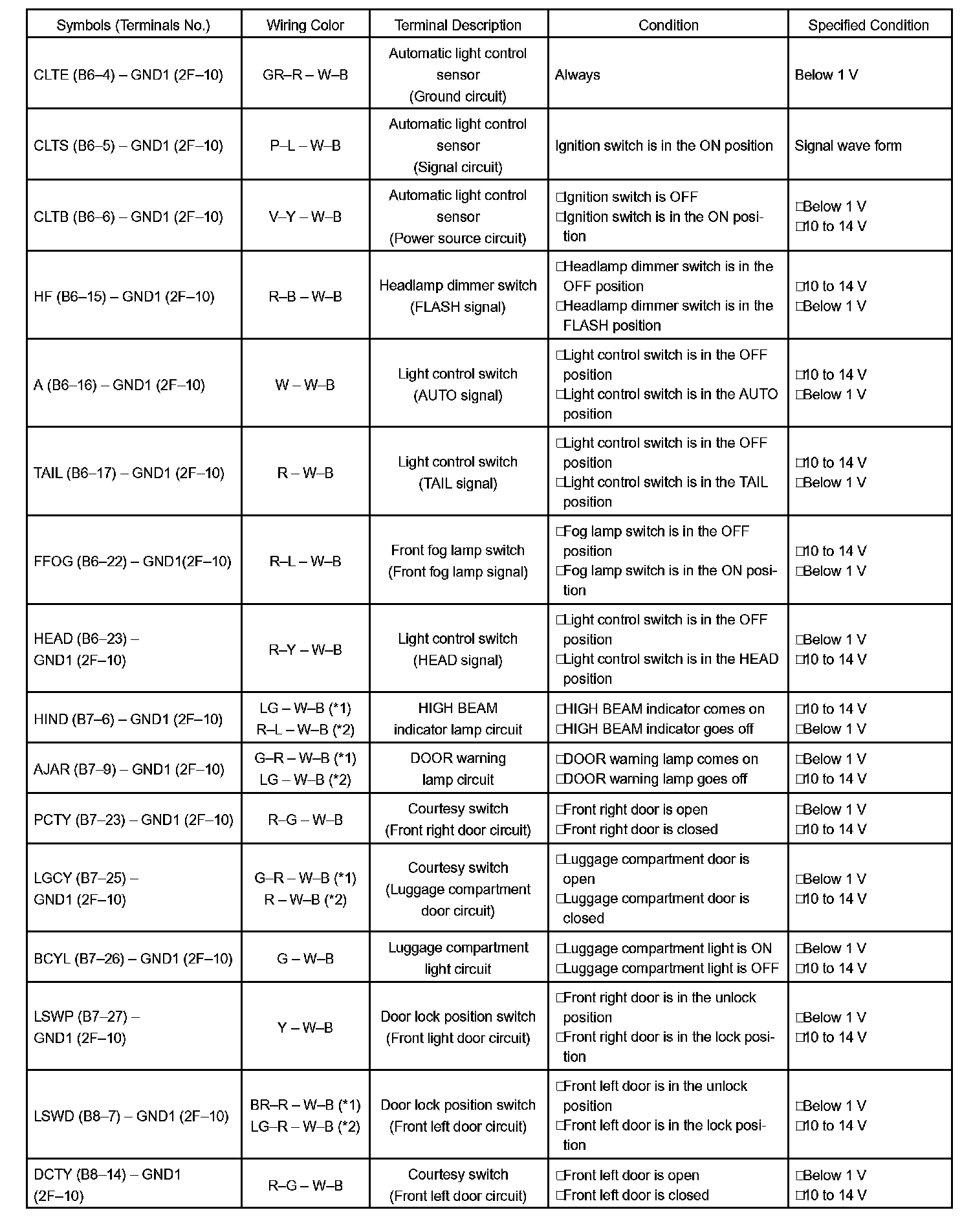

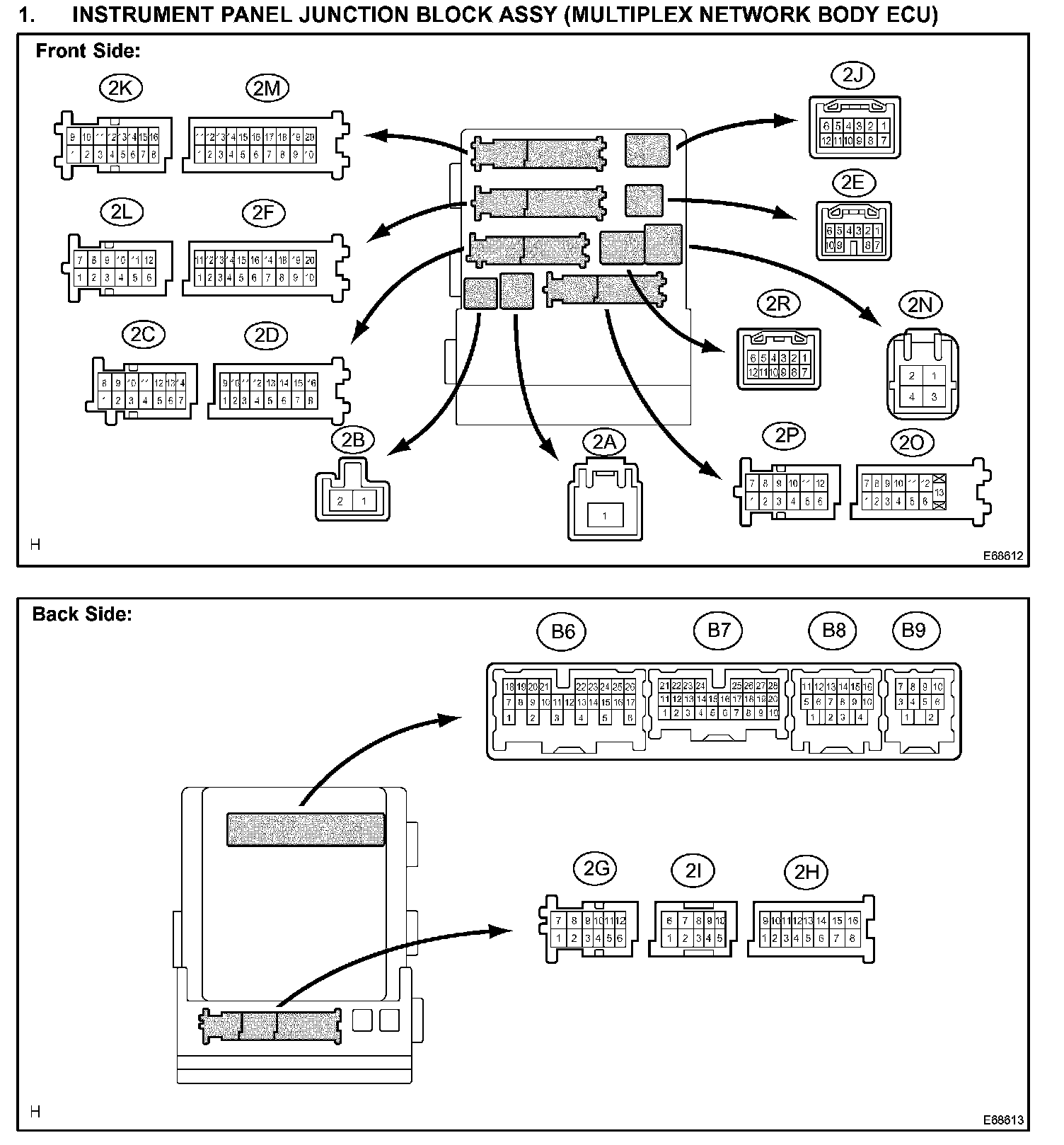

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Part 1:

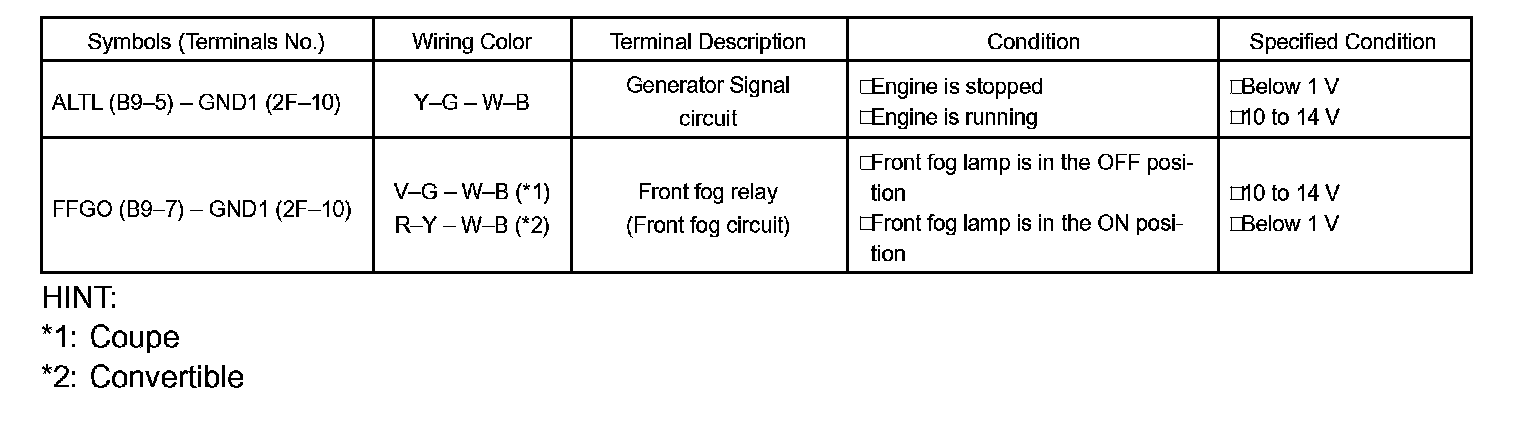

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Part 2:



Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Part 3:



Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Multiplex Network Body ECU) Part 4:
