Scan Tool Testing and Procedures

CHECK THE DLC3

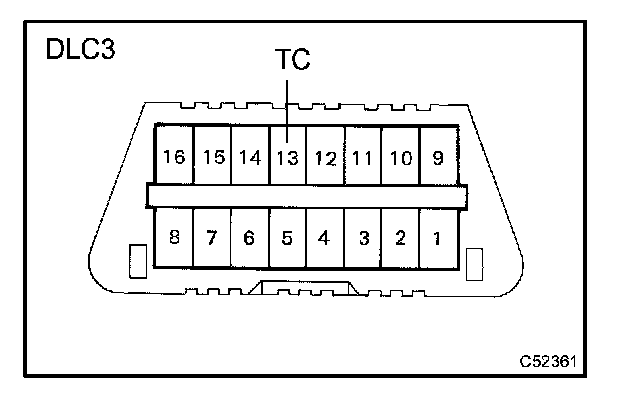

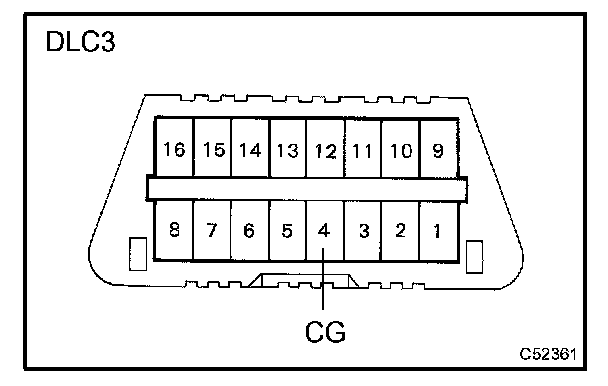

a. Measure the resistance according to the value(s) in the table.

Standard:
If the resistance is not as specified, inspect the TC terminal circuit.

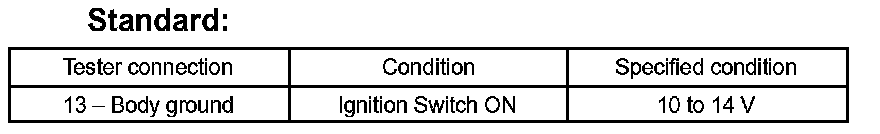

b. Measure the voltage according to the value(s) in the table.

Standard:
If the resistance is not as specified, inspect the TC terminal circuit.
