Relay Box: Locations

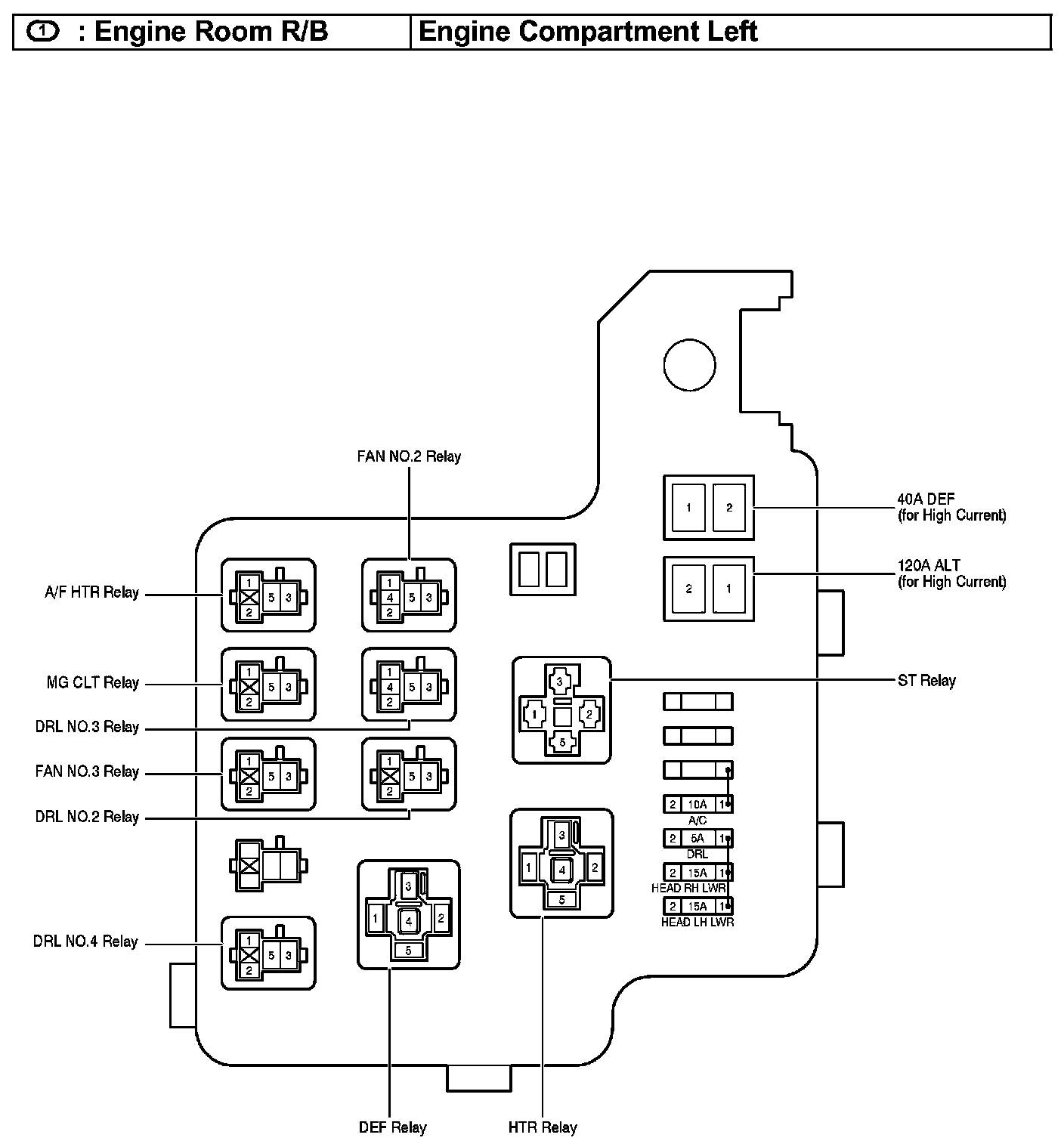

Engine Room R/B - Engine Compartment Left:

VSC R/B - Engine Compartment Left:

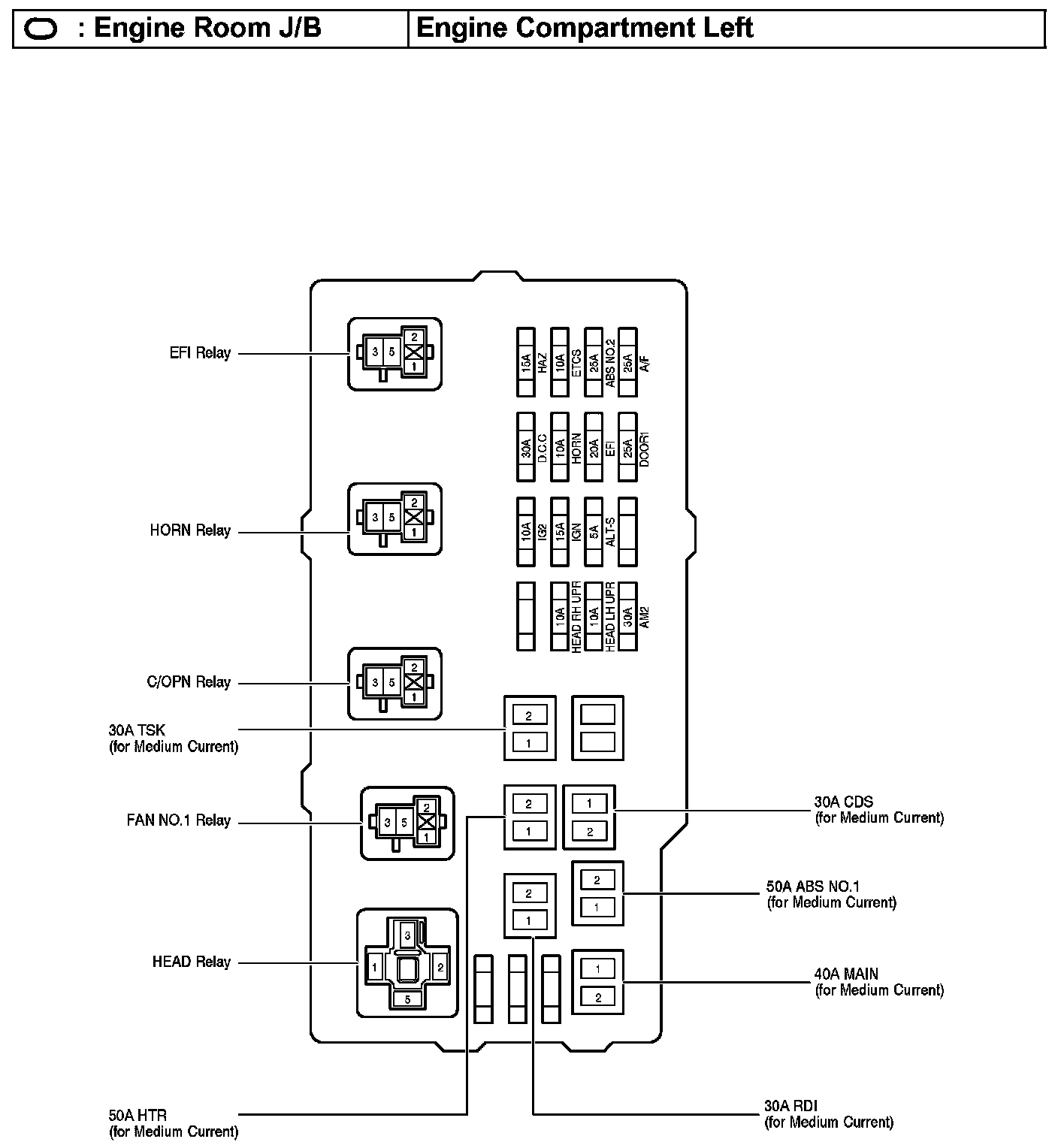

Engine Room J/B - Engine Compartment Left:

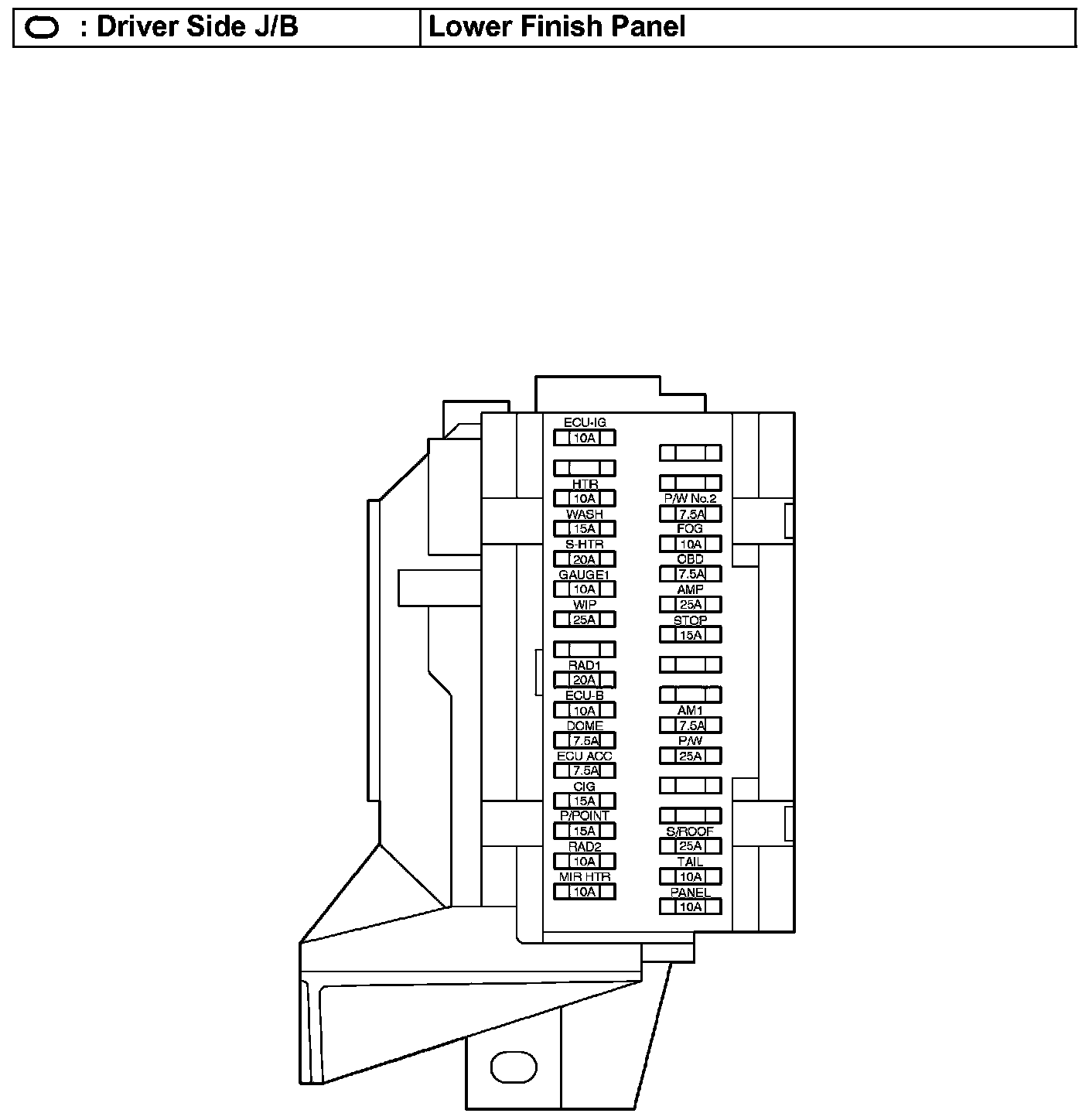

Driver Side J/B - Lower Finish Panel:

Driver Side J/B - Lower Finish Panel:

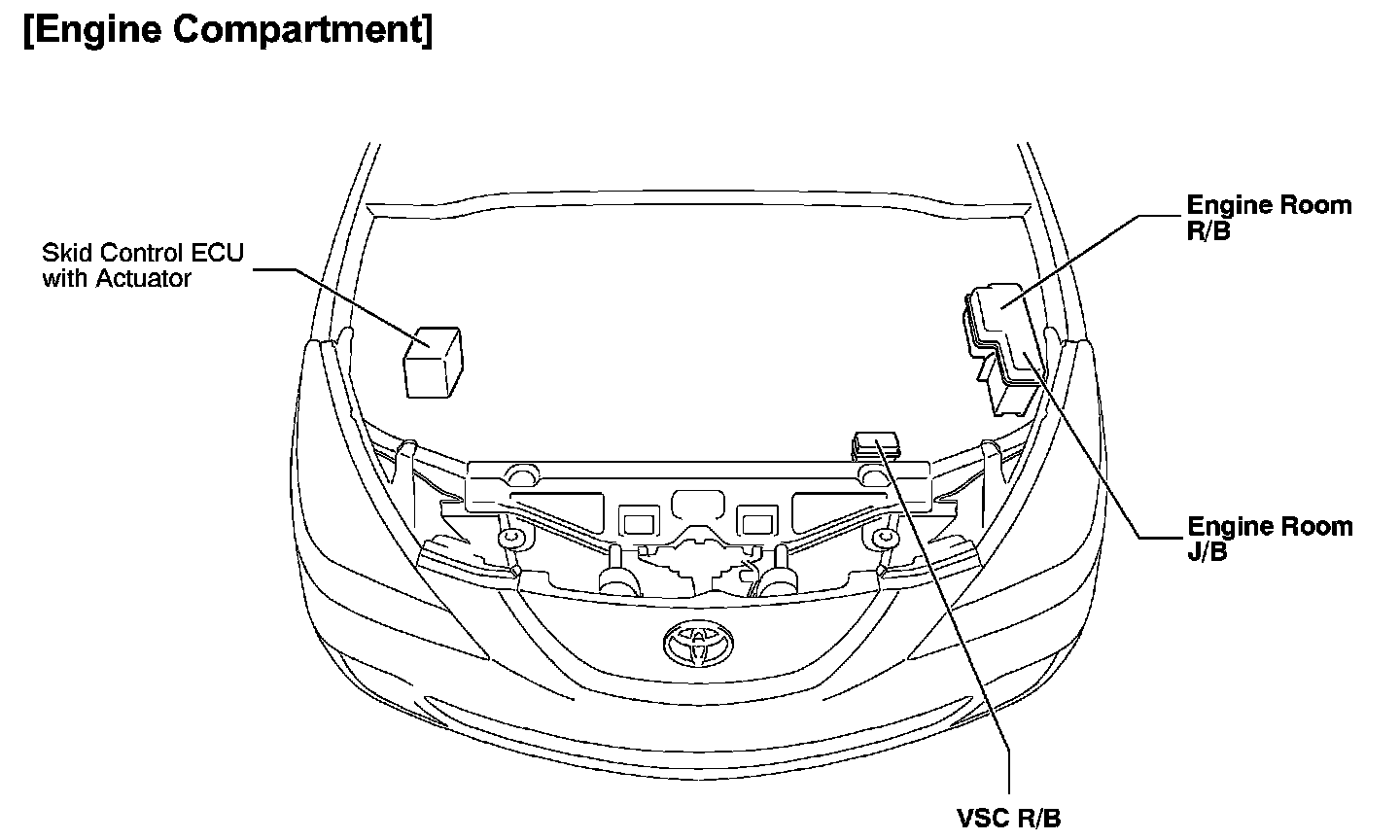

Engine Compartment:

Instrument Panel:

Body (C/P):

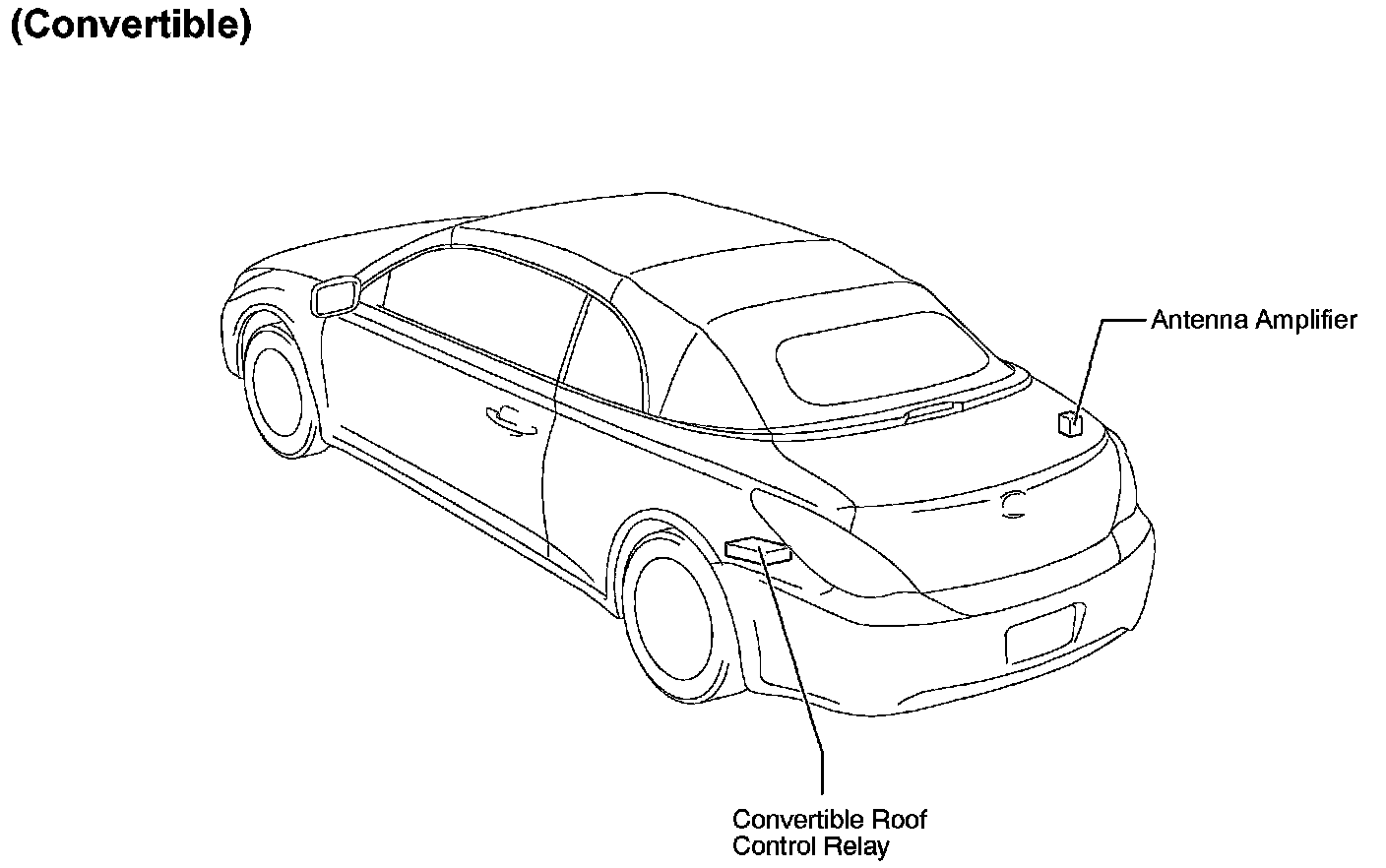

Body (Convertible):
