Home >> Toyota >> 2005 >> Solara V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Description and Operation

Starting System: Description and Operation

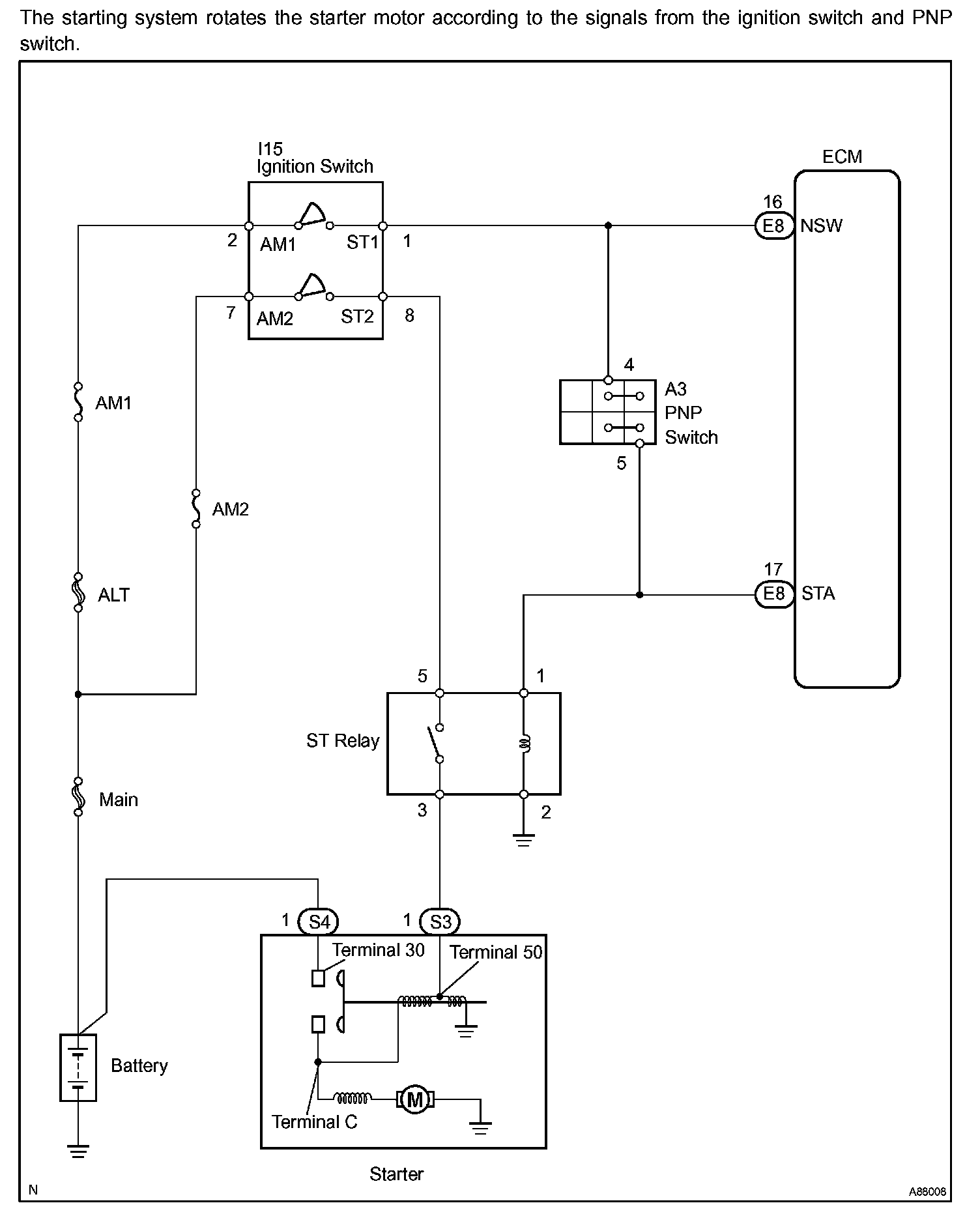

System Diagram:
