Engine Controls - A/T Downshift Lag/Gear Hunting
TRANSMISSION & CLUTCHTC006-05
Title:
ECM CALIBRATION: SHIFT FEELING
ENHANCEMENT
Models:
'04 - '05 Solara (3MZ-FE, 5-Speed A/T)
June 21, 2005
Introduction
To improve the transmission shift feeling during specific operating modes, the Engine Control Module (SAE term: Powertrain Control Module/PCM) calibration has been revised. These improvements include:
^ Reduced downshift lag when accelerating at speeds from 10 to 20 mph.
^ Less gear hunting when driving on/off accelerator pedal at 20 to 30 mph (for example: during heavy rush-hour traffic).
^ Improved response rate during heavy acceleration from a stop.
NOTE:
^ Version 12.2a or later Diagnostic Tester software is required to perform this procedure.
^ Before proceeding, verify the ECM (PCM) calibration has NOT been updated by checking for the Authorized Modifications Label (shown in step 1 of the Repair Procedure).
^ Harsh ATM shifting may result if any Repair Procedure steps are omitted (specifically steps 2 and 4 of "Flash Reprogram ECM").
Applicable Vehicles
^ 2004 - 2005 model year Solara vehicles equipped with 3MZ-FE engine and 5-speed automatic transmission.
Warranty Information
Applicable Warranty*:
This repair is covered under the Toyota Federal Emissions Warranty. This warranty is in effect for 96 months or 80,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
Parts Information
Required SSTs

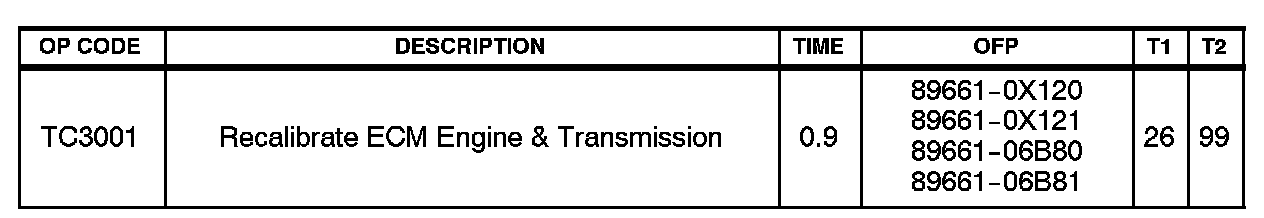

Calibration Identification Chart
Repair Procedure
1. Check for the Authorized Modifications Label affixed to the vehicle in the location shown in Figure 1. Confirm if ECM (PCM) calibration has been updated. If not the latest ECM (PCM) calibration go to step 2.
2. Connect the Diagnostic Tester to the vehicle and select CURRENT ECU CAL from the ECU REPROGRAM MAIN MENU. Determine the vehicle's current ECU calibration (see Figure 2).
- The sample screen prints seen below are the 12.2a software version and may differ from subsequent software versions.
3. If ECU calibration ID is not the same as the "New Calibration ID" listed previously, proceed to Flash Reprogram ECM (PCM).
Flash Reprogram Procedure
Flash Reprogram ECM (PCM)

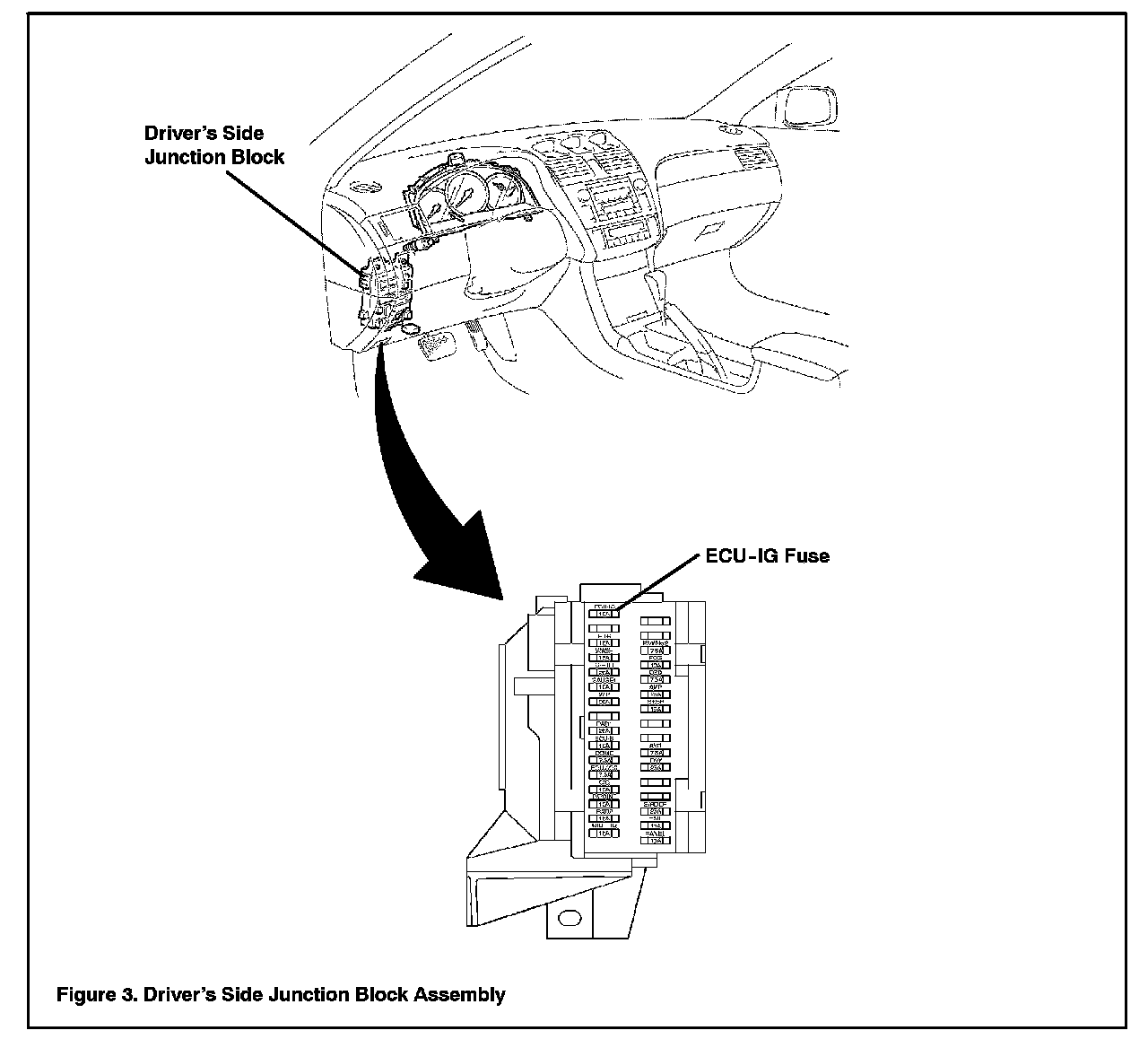

1. Remove the 10A ECU-IG fuse from the driver's side Junction Block assembly. This action prevents possible activation of the ABS relay, resulting in ECM Reprogramming failure.
NOTE:
ECU damage may occur if 1OA fuse is NOT removed.
2. Follow the procedures outlined in Toyota TSB No. SS002-01, "ECU Flash Reprogramming Process," and flash the ECM (PCM) with new calibration file update.
3. Reinstall the 10A ECU-IG fuse in the driver's side Junction Block assembly.
4. Reset the ECM (PC M) learned values using the Diagnostic Tester. Refer to the procedures below.
- The sample screen prints seen below are the 1 2.2a software version and may differ from subsequent software versions.
NOTE:
Failure to reset the ECM (PCM) memory will result in continued ATM shifting complaints.
5. Follow the procedures outlined in TSB No. EG045-04, "Entering VIN During ECM (PCM) Replacement and/or DTC P0630," and write the VIN to the ECM (PCM).
6. Start the engine and warm it up to normal operating temperature before test-driving.
7. Test drive vehicle to confirm proper vehicle operation.
8. Enter the required information on the Authorized Modifications Label and affix it to the vehicle at the location shown in Figure 1. The Authorized Modifications Label is available through the MDC, P/N 00451-00001-LBL.
9. Calibration update is complete.
NOTE:
^ Select premium unleaded gasoline with an Octane Rating of 91 (Research Octane Number 96) or higher for optimum engine performance.
^ The effect of the new calibration may become more apparent after several days of driving as the ECM (PCM) "learned values" are re-established from the customer's driving.
