Wiper Switch: Service and Repair

WINDSHIELD WIPER SWITCH ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE STEERING COLUMN COVER LWR
2. REMOVE STEERING COLUMN COVER




3. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
a. Disconnect the connector.

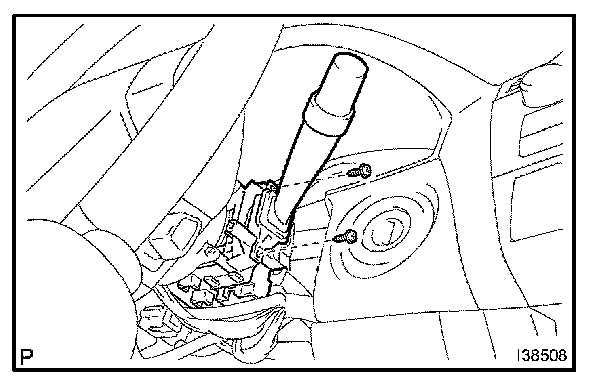

b. Remove the 2 screws and the windshield switch assembly.
