ABS w/ EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

C0200/31-C1235/35:

C1236/36-U0124/95:

HINT: If a DTC is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the respective "DTC No." in the DTC chart.


Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed.

- *1:
1. Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
2. Clear the DTC.

- *2:
1. Keep the vehicle in the stationary condition for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.
2. Drive the vehicle at the vehicle speed of 31 mph (50 km/h) and keep depressing the brake pedal strongly for approximately 3 seconds.
3. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
4. Clear the DTC.

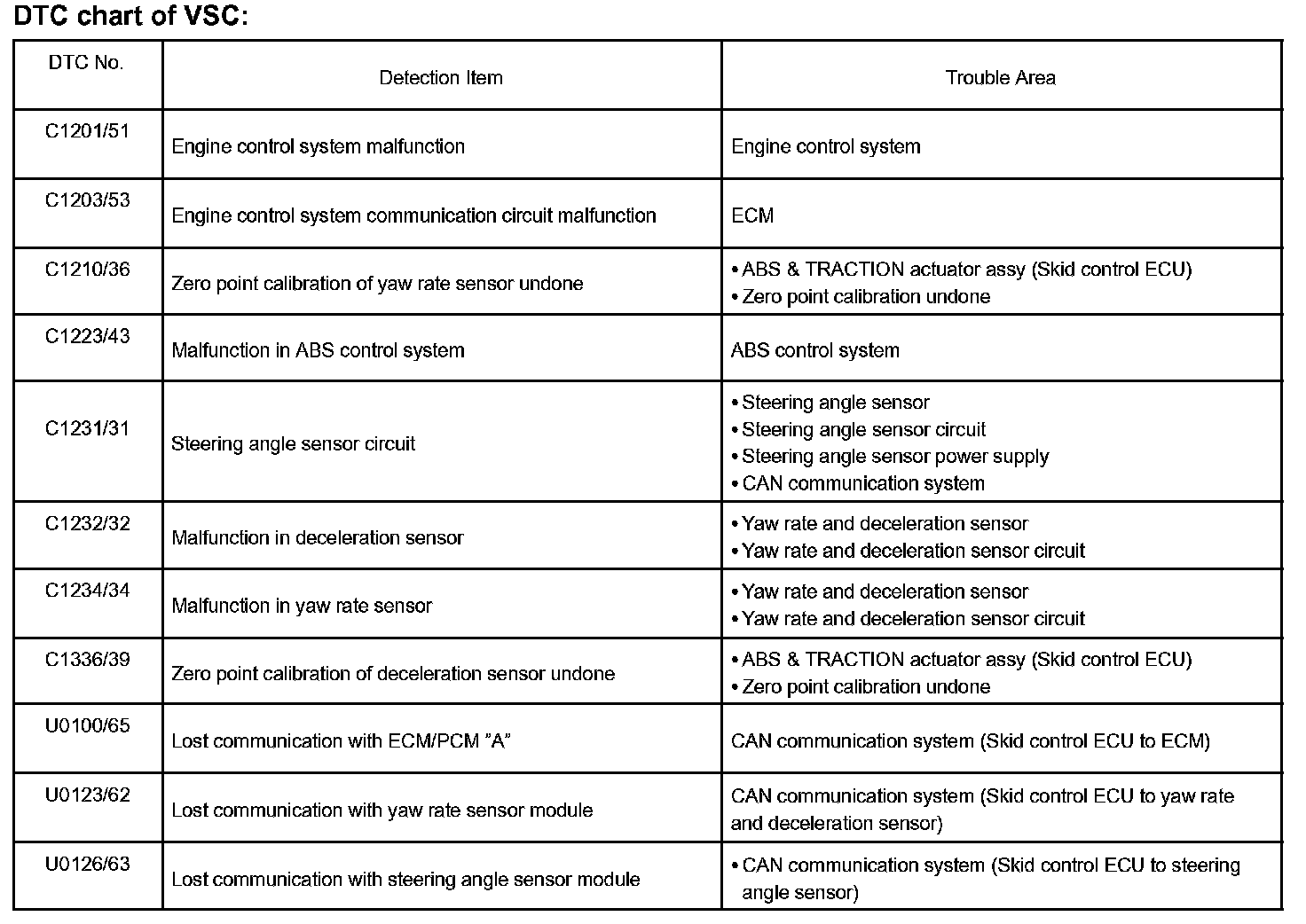

DTC Chart of VSC:






HINT: In some cases, the hand-held tester cannot be used when the ABS warning light remains on.

DTC OF TEST MODE FUNCTION (SIGNAL CHECK)

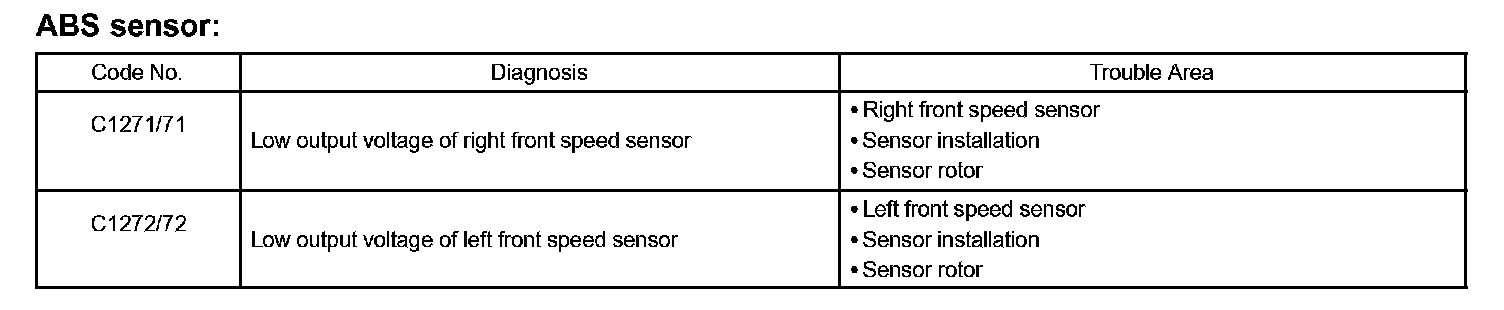

ABS sensor:

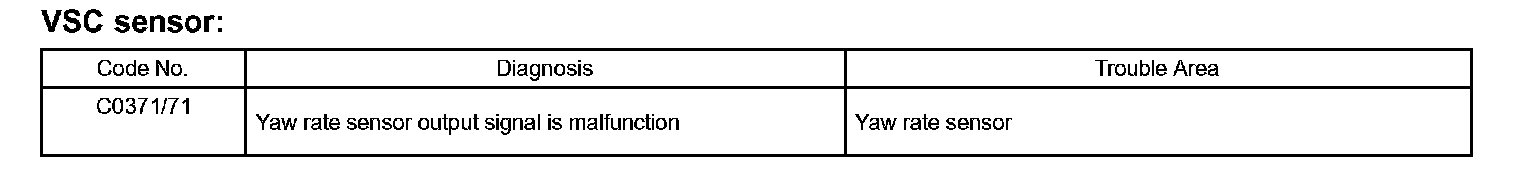

VSC sensor:





HINT:
- The codes in this table are output only in test mode (SIGNAL CHECK).
- See the referred to in the table to proceed with troubleshooting.
- After troubleshooting is completed, check that no DTCs are output.
