Air Conditioning System

DIAGNOSTIC TROUBLE CODE CHART

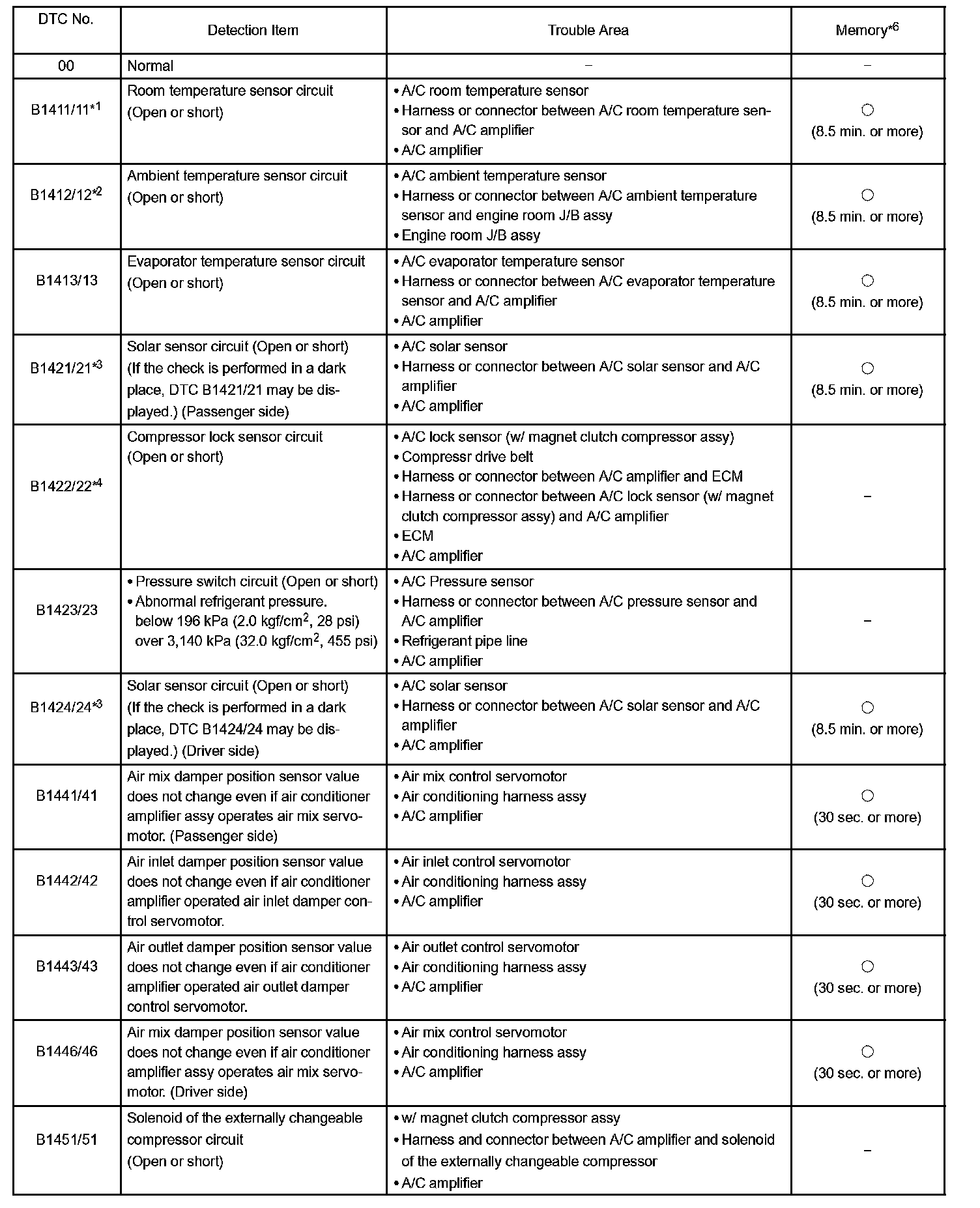

B1411/11-B1451/51:

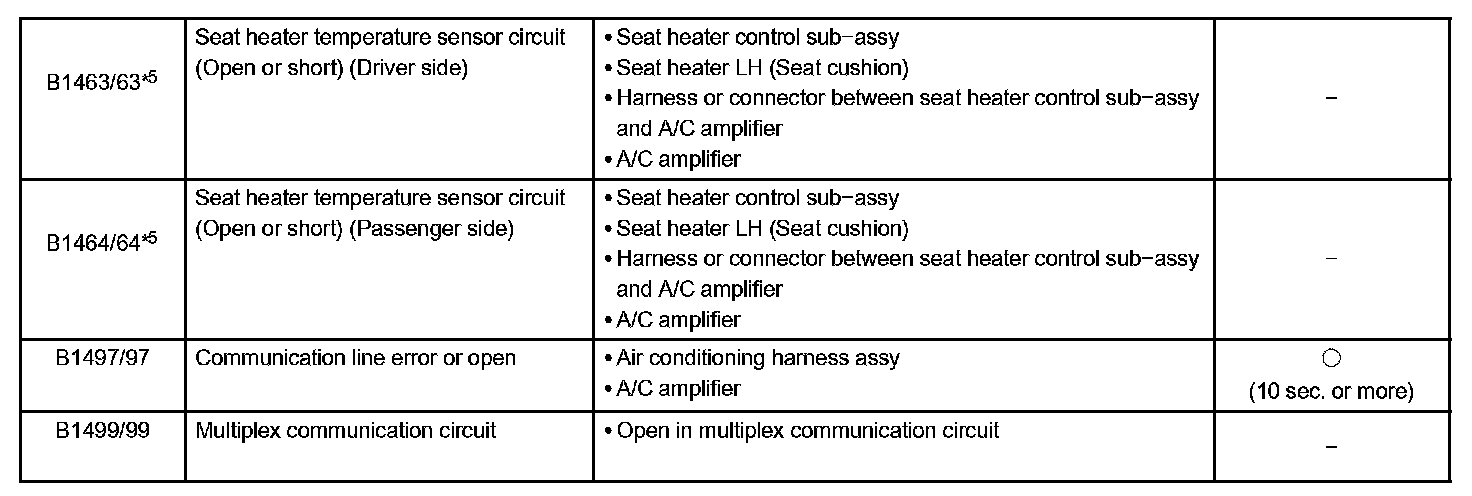

B1463/63-B1499/99:

If a trouble code is displayed during the DTC check (sensor check), check the circuit listed for that code in the table given (proceed to the DTC No. given for that circuit).

HINT:
- *1: If the cabin temperature is approx. -18.6 degree C (-1.48 degree F) or lower, DTC B1411/11 may be output even though the system is normal.
- *2: If the ambient temperature is approx. -52.9 degree C (-63.22 degree F) or lower, a malfunction code may be output even though the system is normal.
- *3: If the check is performed in a dark place, DTC B1421/21 or B1424/24 (solar sensor circuit abnormal) could be displayed.
- *4: Compressor lock (DTC B1422/22) is indicated only for a current occurring malfunction.

To confirm DTC B1422/22, perform the following steps:
1. With the engine ON, enter the DTC check mode.
2. Press the R/F (Recirculation/Fresh) switch to enter actuator check mode, and set the operation to Step No.3.
3. Press the AUTO switch to return to DTC check mode.
4. The DTC is displayed after approx. 3 sec.

- *5: Even though the system is in good condition, DTC is output when the seat sensor temperature senses -40 degree C (-40 degree F) and over 99 degree C (210.2 degree F).
- *6: The A/C amplifier memorizes the DTC of the respective malfunction that has occurred for a period of the time indicated in the brackets.
