Theft Deterrent System

SYSTEM DIAGRAM

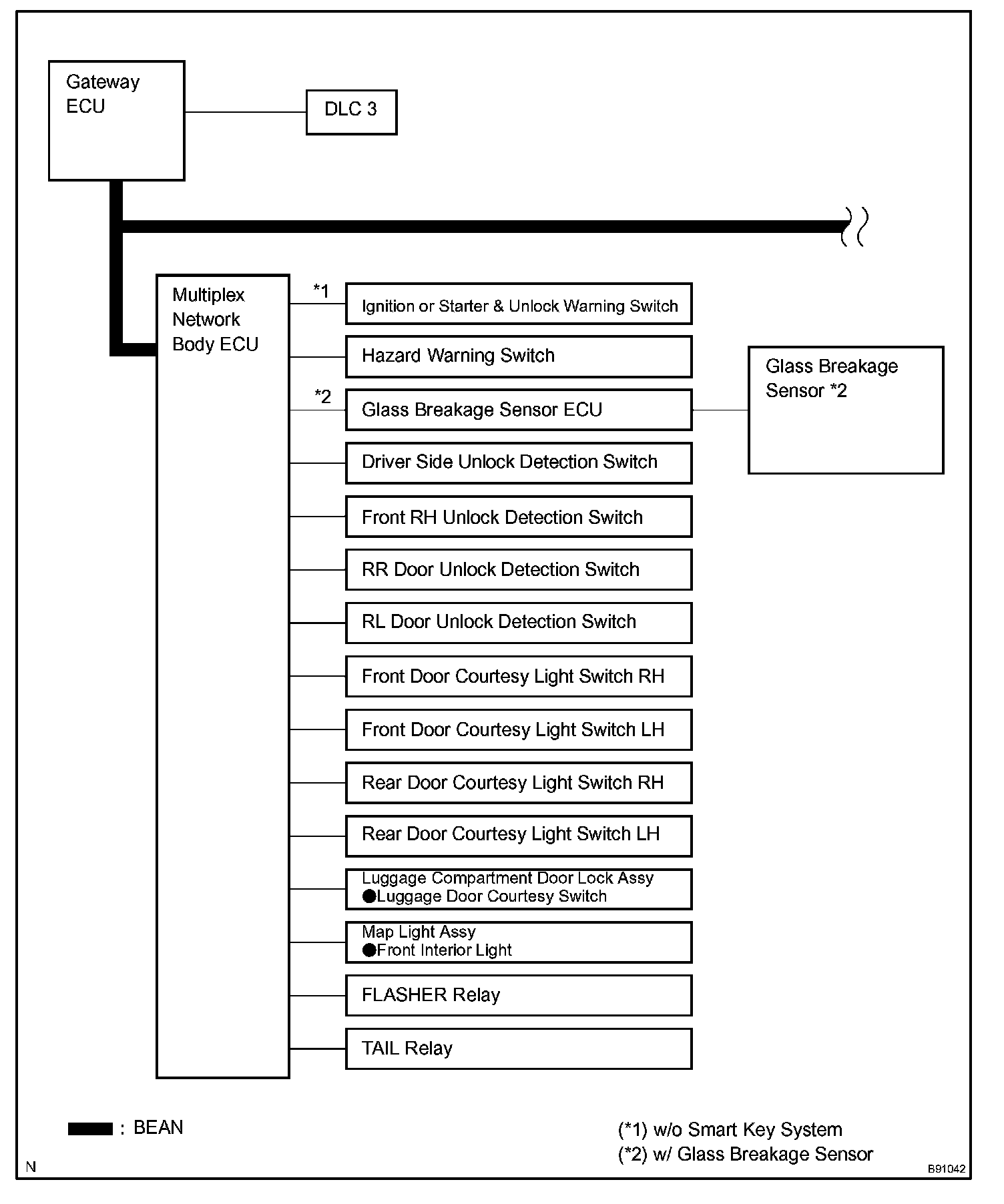

System Diagram (Part 1):

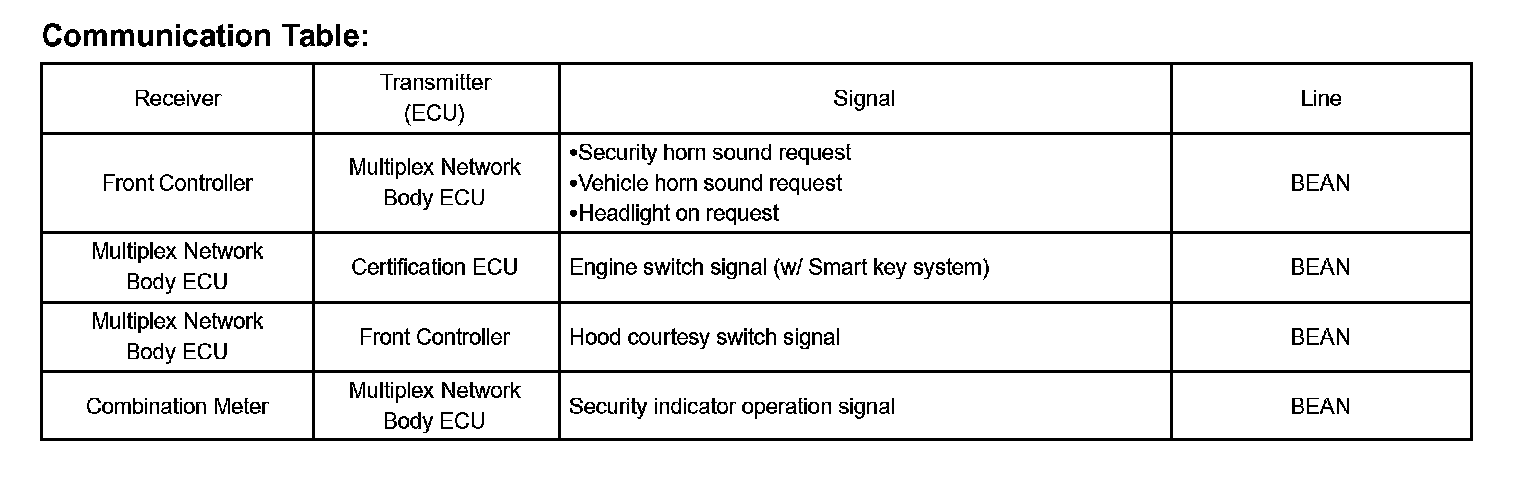

System Diagram (Part 2):

SYSTEM DESCRIPTION
The theft deterrent system will operate when somebody attempts to forcibly enter the vehicle, open the engine hood or the luggage compartment door, or unlock any door or the luggage compartment door without using the key, or when the battery terminals are removed and reconnected.
- The system consists of door lock control system parts, wireless door lock remote control system parts, and smart key system parts, security horn, and security indicator light.
- The body ECU controls this system.
