Antitheft and Alarm Systems: Locations

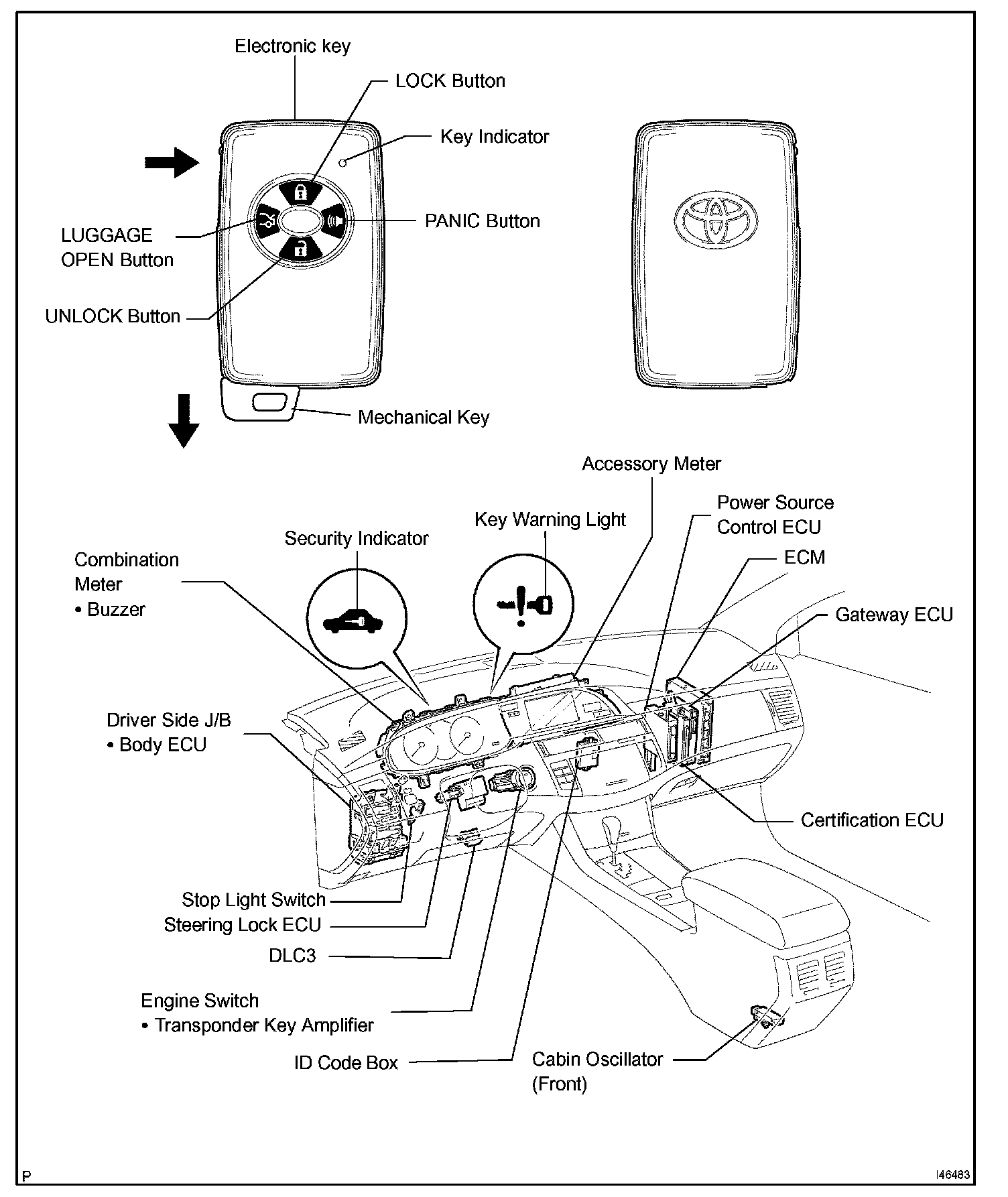

Smart Key System:

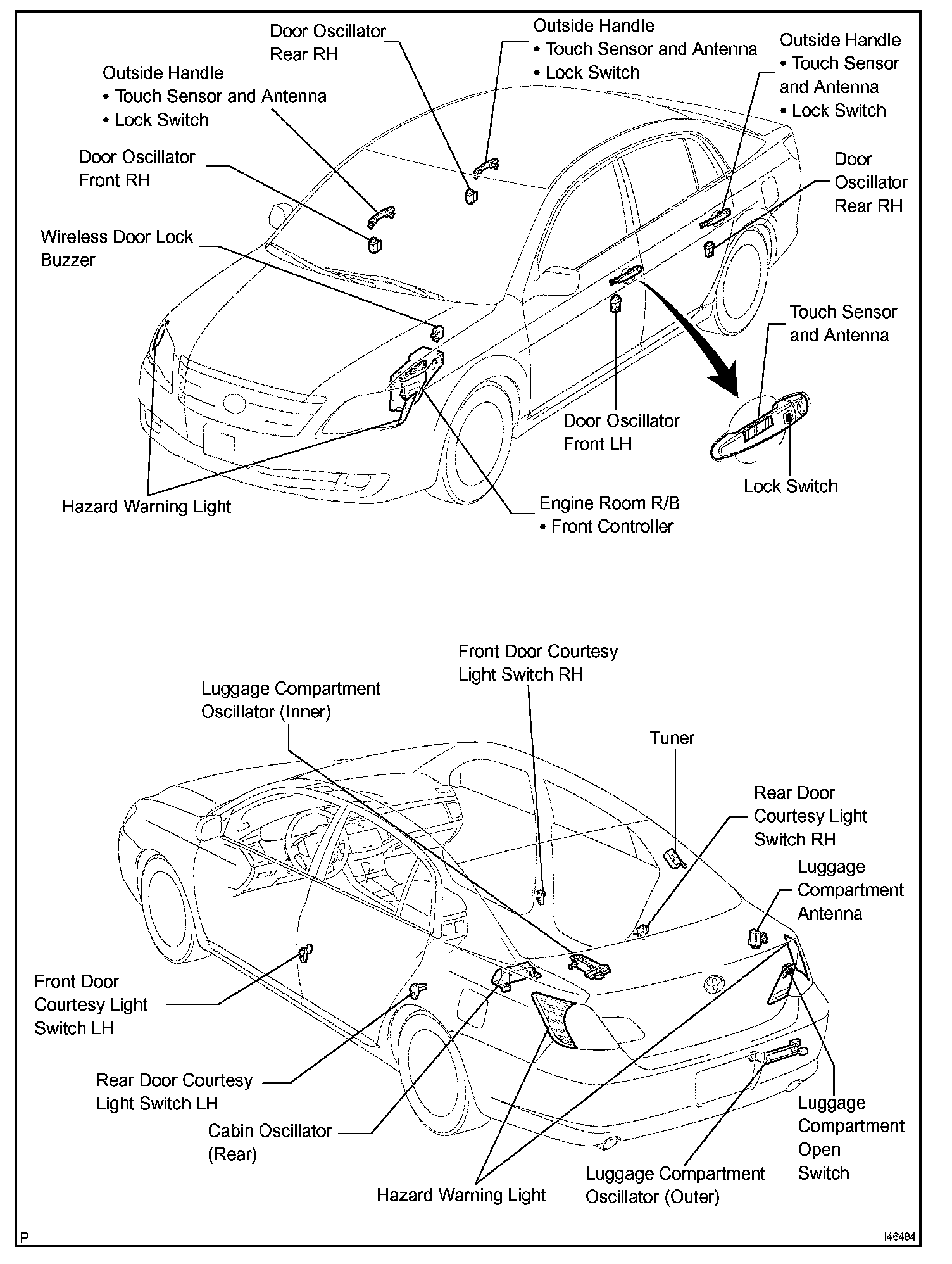

Smart Key System:



Engine Immobilizer System (W/O Smart Key System):



Push Button Start:



Push Button Start:

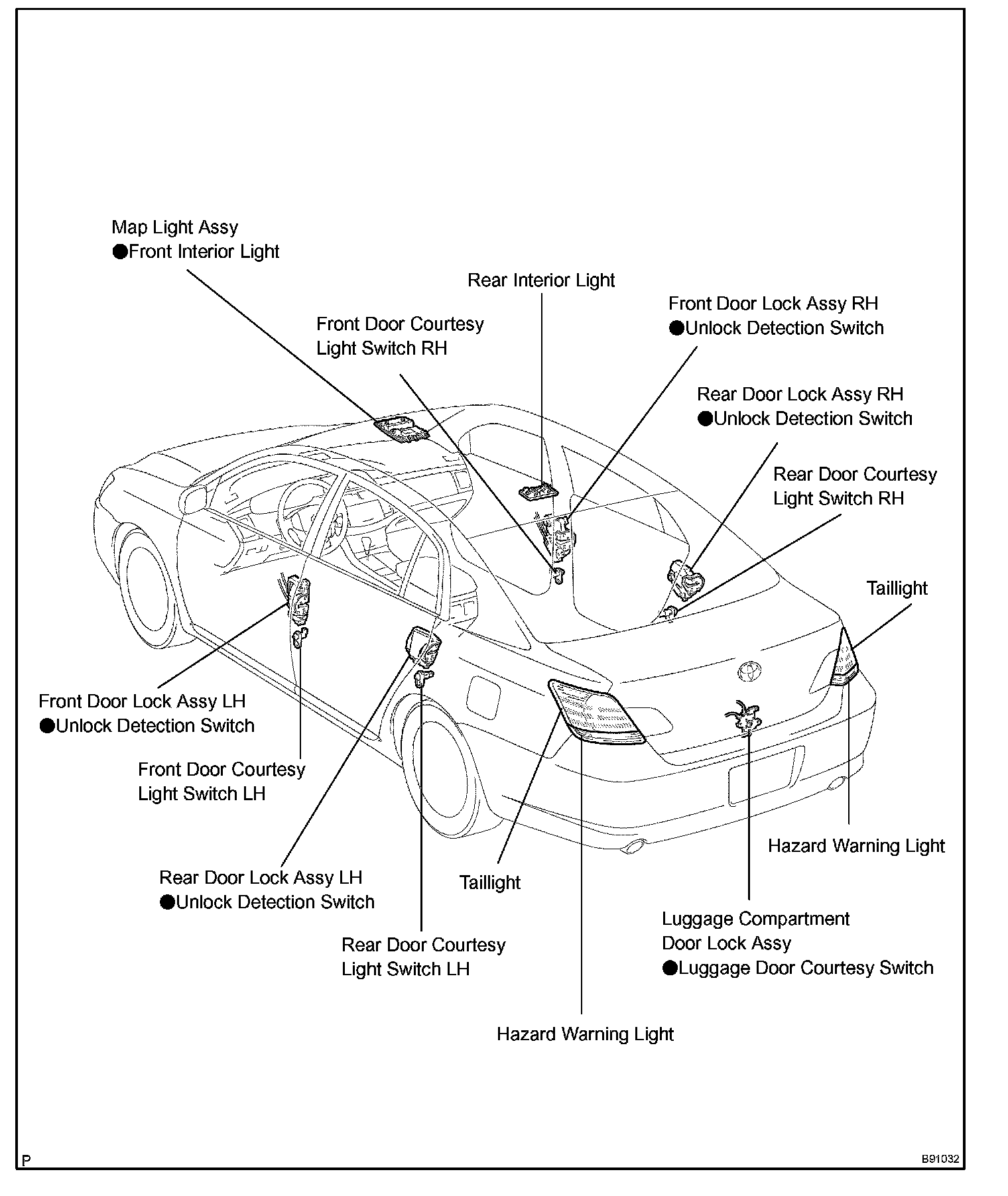

Theft Deterrent System:



Theft Deterrent System:
