Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

1. MULTI DISPLAY

Terminals Of Control Module/Pinouts - Multi-Display (Part 1):

Terminals Of Control Module/Pinouts - Multi-Display (Part 2):

2. NAVIGATION ECU

Terminals Of Control Module/Pinouts - Navigation ECU (Part 1):

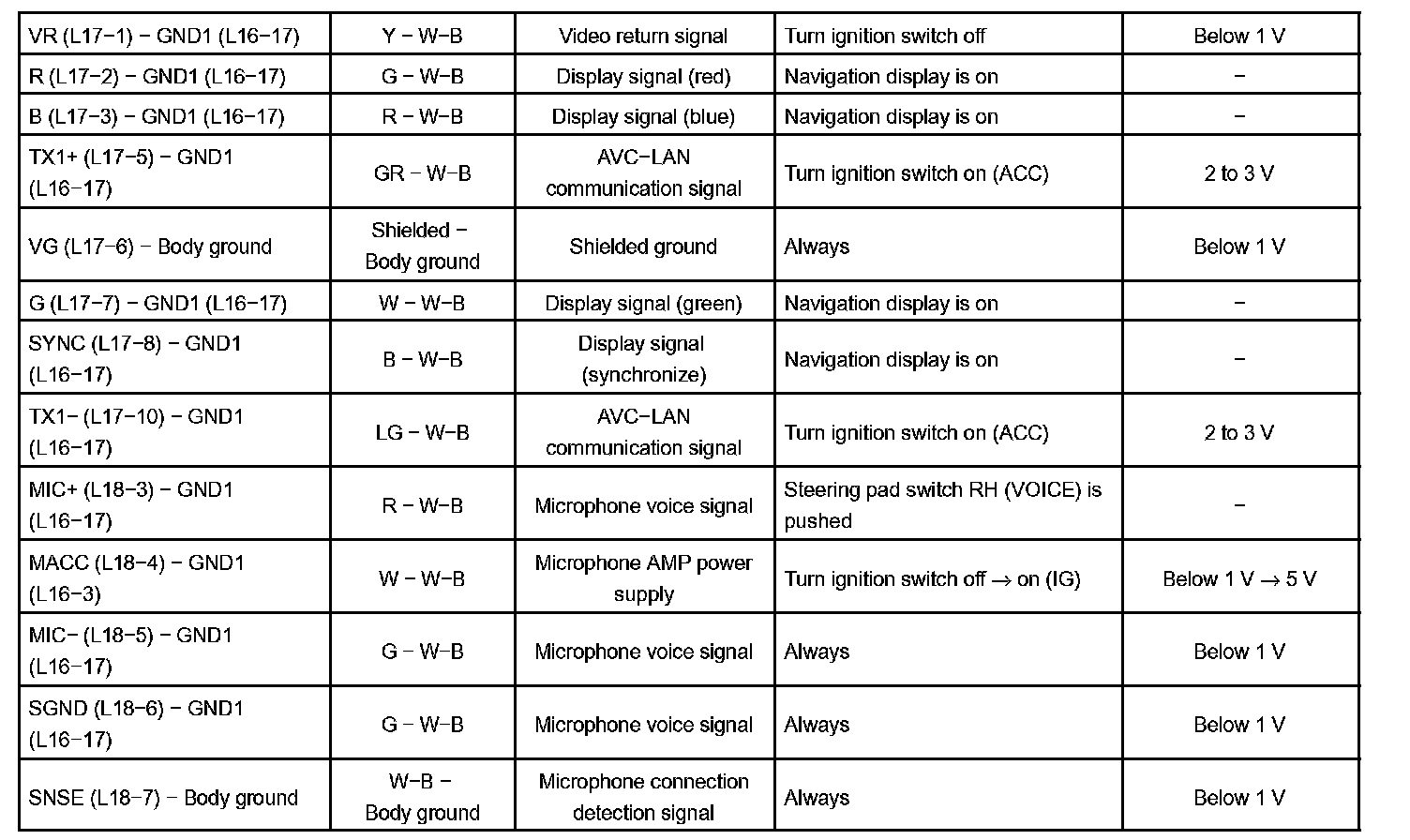

Terminals Of Control Module/Pinouts - Navigation ECU (Part 2):

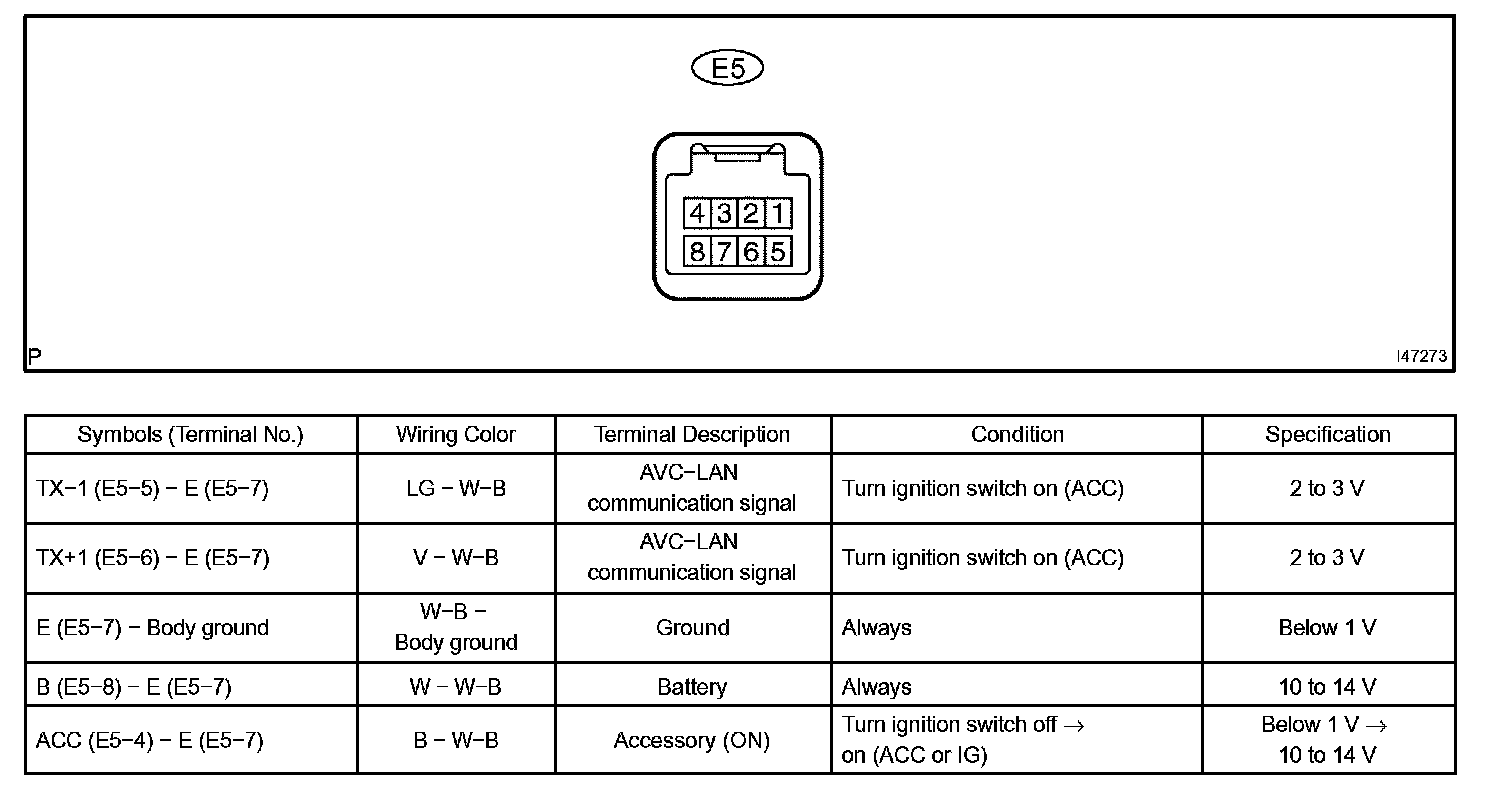

3. CLOCK ASSEMBLY

Terminals Of Control Module/Pinouts - Clock Assy:

4. NAVIGATION CONTROLLER ASSEMBLY

Terminals Of Control Module/Pinouts - Navigation Controller Assy:

5. RADIO RECEIVER ASSEMBLY

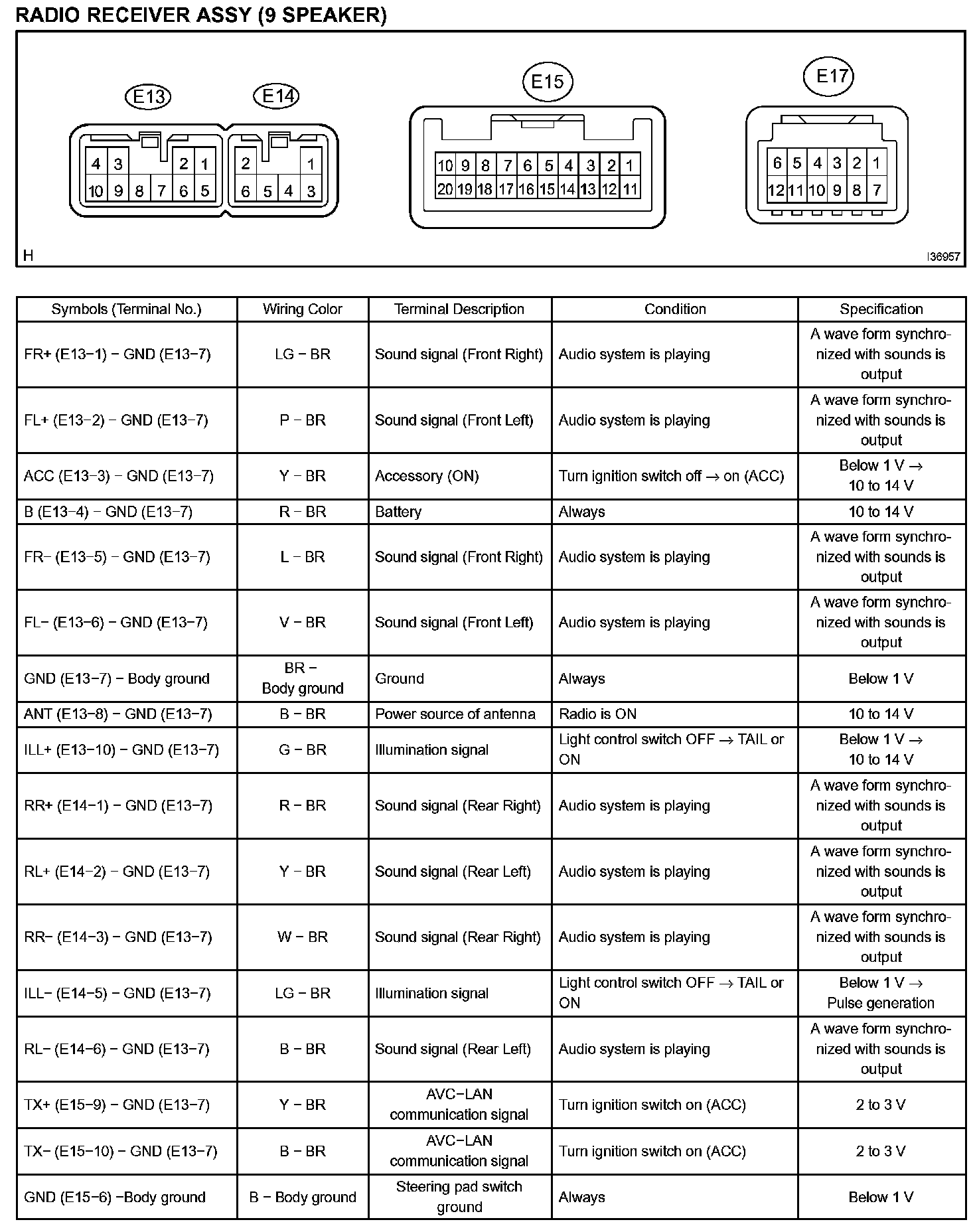

Terminals Of Control Module/Pinouts - Radio Receiver Assy (9 Speaker) (Part 1):

Terminals Of Control Module/Pinouts - Radio Receiver Assy (9 Speaker) (Part 2):

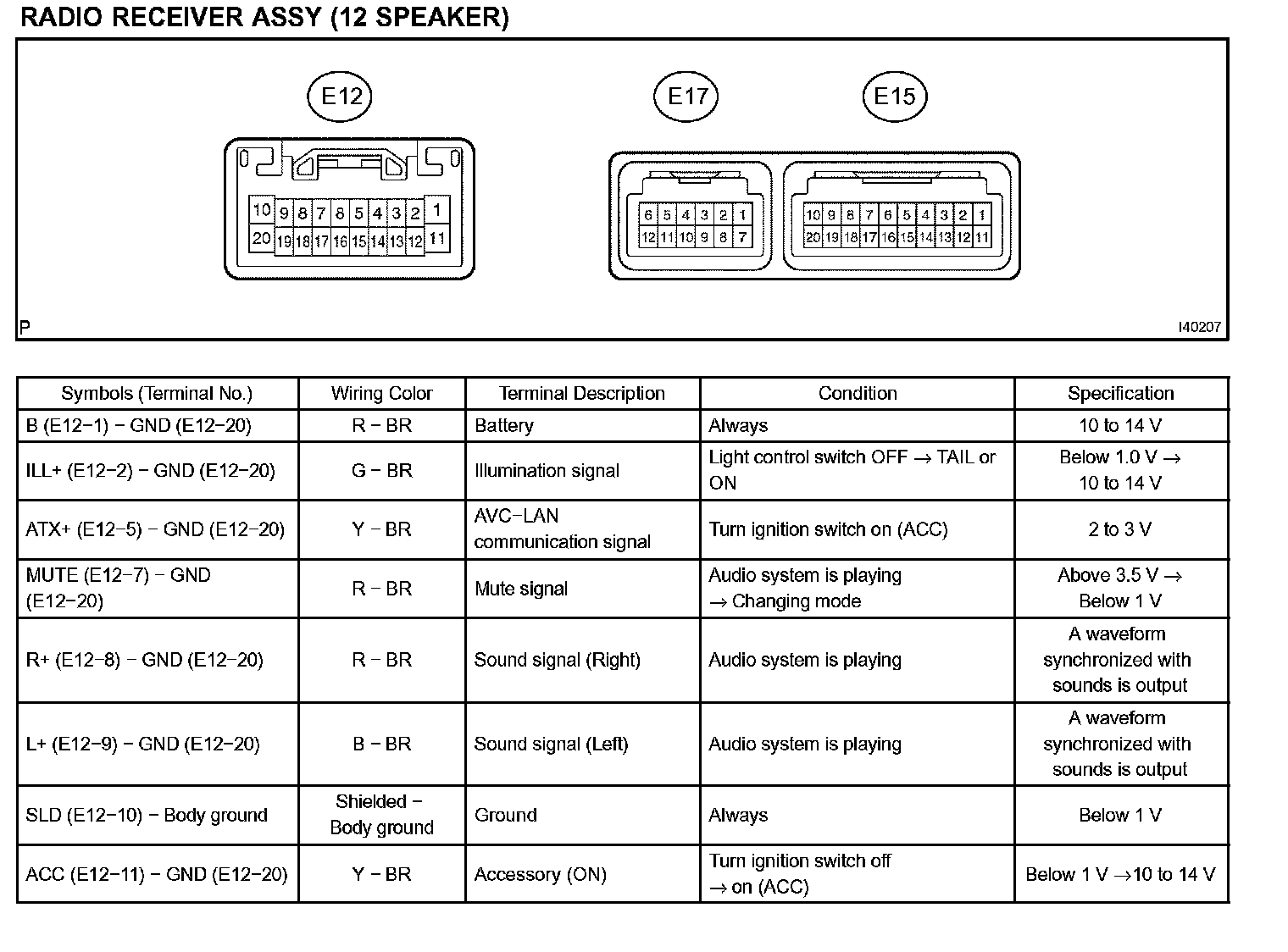

Terminals Of Control Module/Pinouts - Radio Receiver Assy (12 Speaker) (Part 1):

Terminals Of Control Module/Pinouts - Radio Receiver Assy (12 Speaker) (Part 2):

6. STEREO COMPONENT AMPLIFIER ASSEMBLY

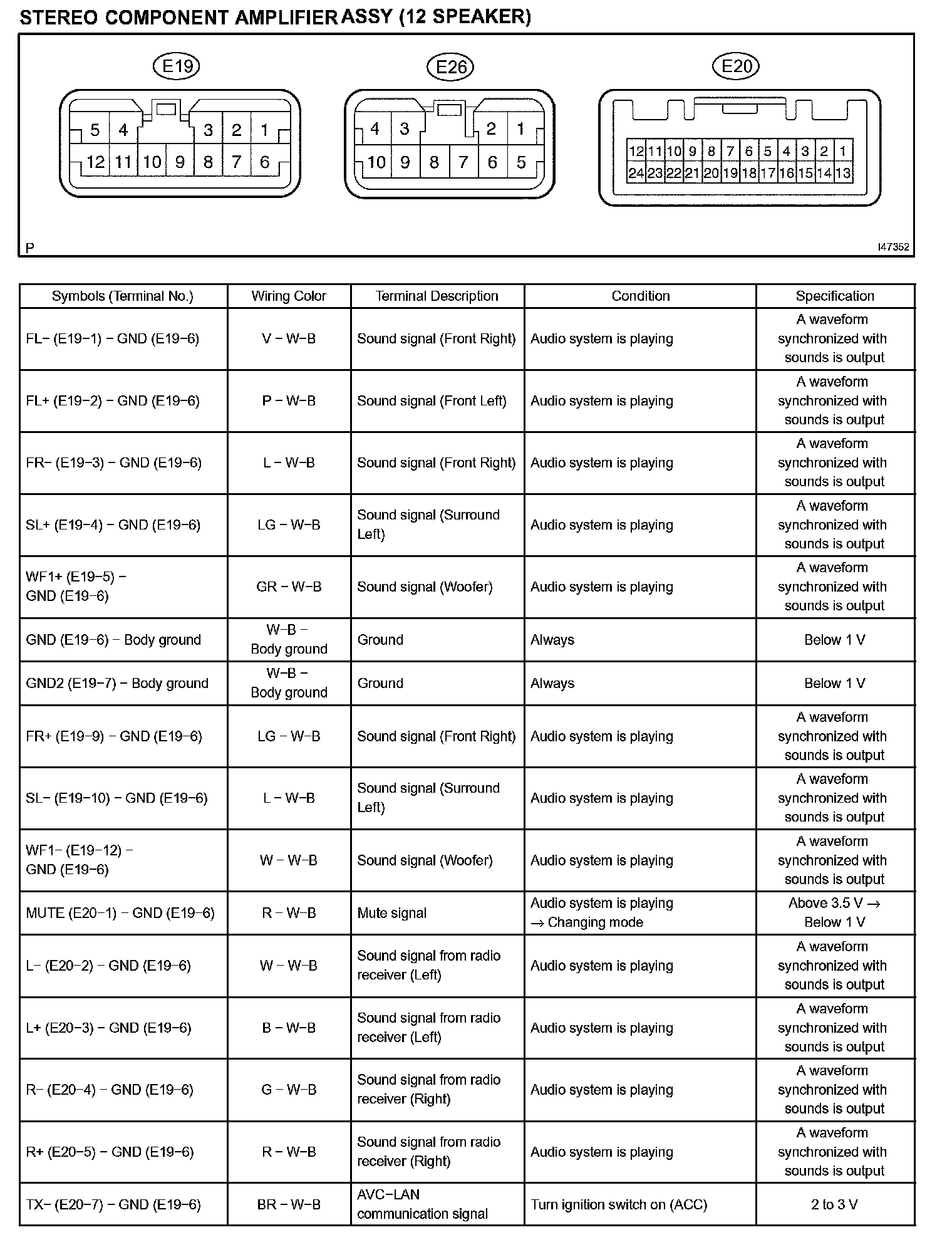

Terminals Of Control Module/Pinouts - Stereo Component Amplifier Assy (Part 1):

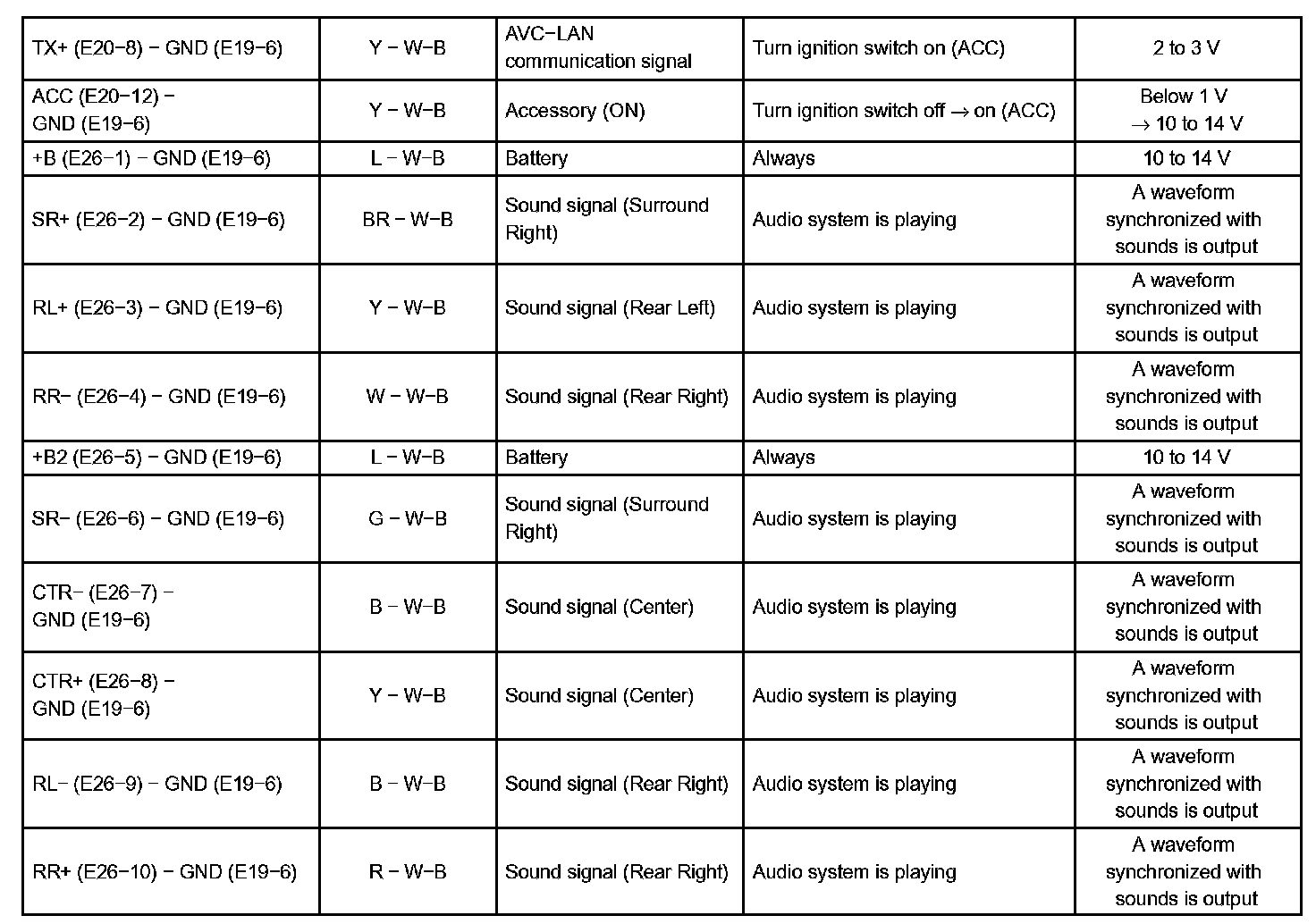

Terminals Of Control Module/Pinouts - Stereo Component Amplifier Assy (Part 2):

7. NETWORK GATEWAY ECU

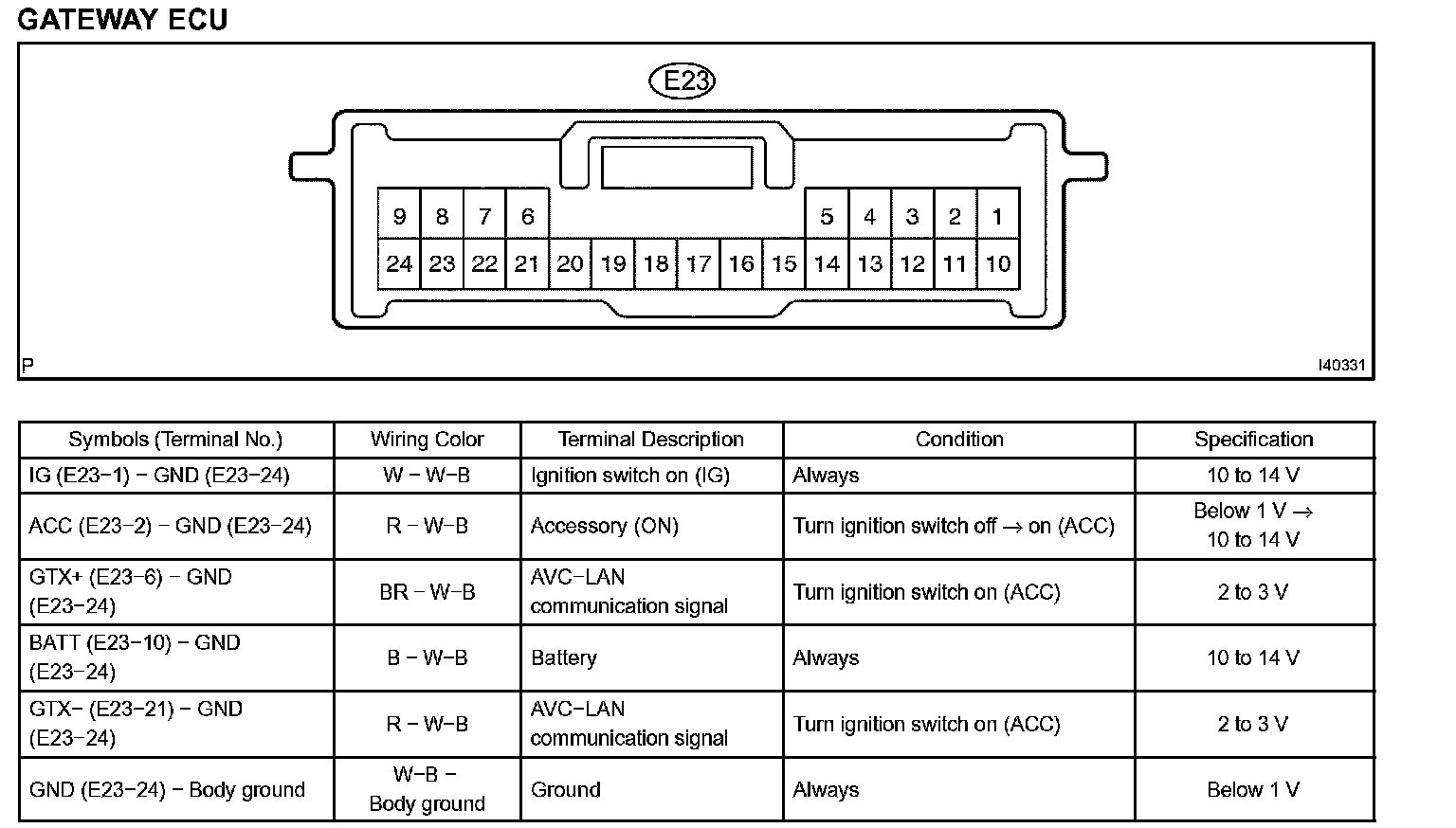

Terminals Of Control Module/Pinouts - Gateway ECU:
