Radio/Stereo: Service and Repair

RADIO RECEIVER ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2
3. REMOVE INSTRUMENT PANEL FINISH PLATE (W/O SMART KEY SYSTEM)
4. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER




6. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
a. Remove the 4 bolts and pull the radio receiver assembly w/bracket toward you.
b. Disconnect all connectors and remove the radio receiver assembly w/ bracket.

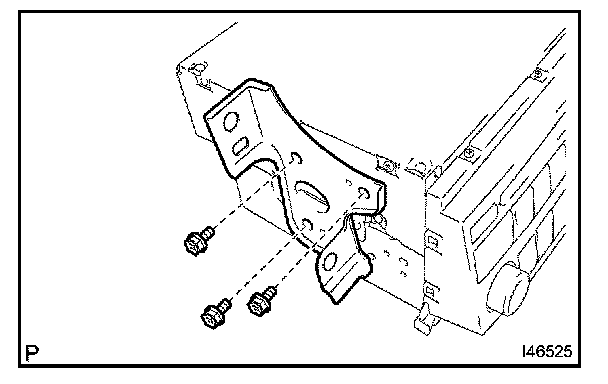

7. REMOVE RADIO BRACKET NO.1
a. Remove the 3 bolts and radio bracket No.1 from the radio receiver assembly w/ bracket.

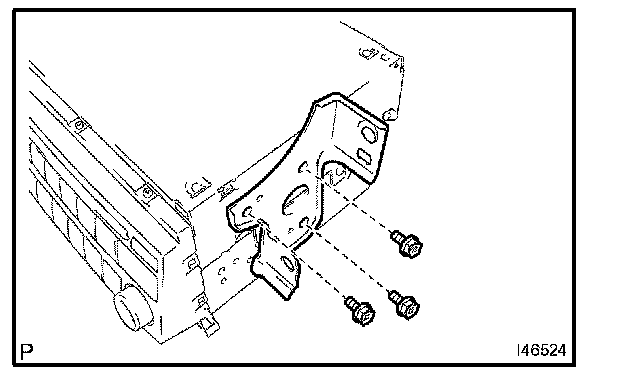

8. REMOVE RADIO BRACKET NO.2
a. Remove the 3 bolts and radio bracket No.2 from the radio receiver assembly w/ bracket.

9. REMOVE RADIO RECEIVER ASSEMBLY
