Front Bumper: Service and Repair

REPLACEMENT

Front Bumper:

HINT:
- Installation is in the reverse order of removal.

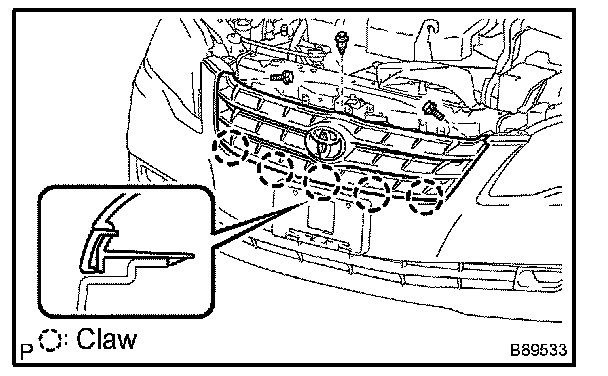

1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY




a. Remove the 2 bolts and clip.
b. Disengage the 5 claws and remove the radiator grille sub-assembly.

2. REMOVE FRONT BUMPER ASSEMBLY

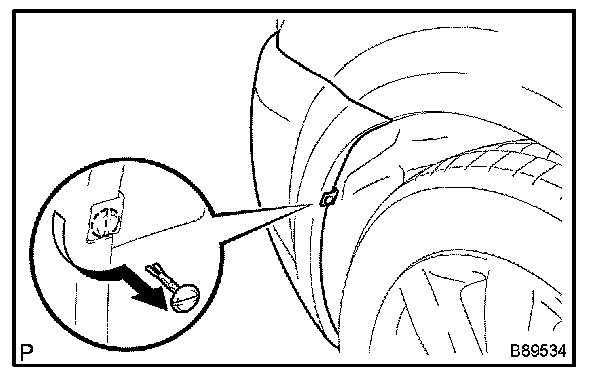

a. Turn the pin hold clip 90 degrees as shown in the illustration and remove it. (LH side)

HINT: Remove the RH side by following the same procedure as for the LH side.

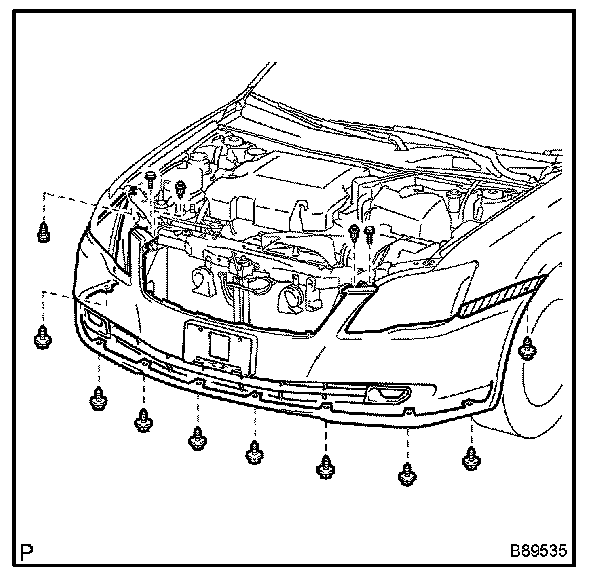

b. Remove the 2 bolts, 10 screws and 2 clips.




c. Disengage the 4 claws by pulling the left side of the front bumper cover in the direction shown by the arrow. (LH side)

HINT: Disengage the RH side by following the same procedure as for the LH side.

d. Disconnect the fog light connector (w/ fog light) and remove the front bumper assembly.

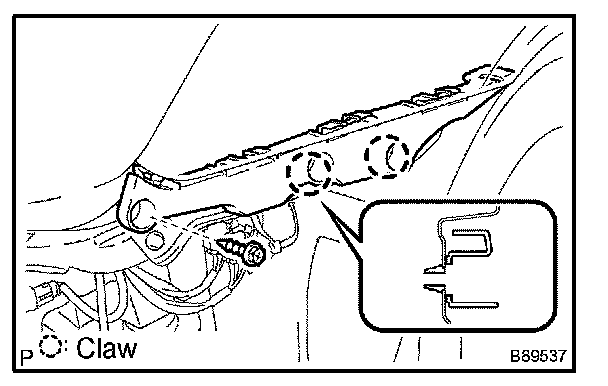

3. REMOVE FRONT BUMPER STAY NO.2 LH




a. Remove the screw.
b. Disengage the 2 claws and remove the front bumper stay No.2 LH.

4. REMOVE FRONT BUMPER STAY NO.2 RH

HINT: Removal of the front bumper stay No.2 RH is the same as the front bumper stay No.2 LH.

5. REMOVE FRONT BUMPER ENERGY ABSORBER




a. Remove the front bumper energy absorber.

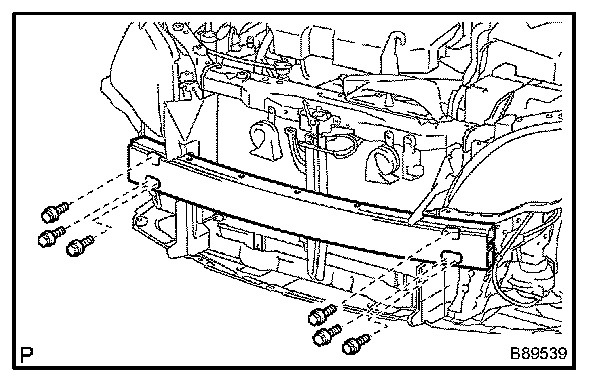

6. REMOVE FRONT BUMPER REINFORCEMENT




a. Remove the 6 bolts and the front bumper reinforcement.

7. REMOVE LASER SENSOR (W/ RADAR CRUISE)
8. REMOVE FOG LIGHT ASSEMBLY LH (W/ FOG LIGHT)
9. REMOVE FOG LIGHT ASSEMBLY RH (W/ FOG LIGHT)
10. REMOVE FRONT BUMPER HOLE COVER LH
11. REMOVE FRONT BUMPER HOLE COVER RH (W/O RADAR CRUISE)
12. REMOVE FRONT BUMPER COVER LOWER (W/ RADAR CRUISE)
13. INSTALL FOG LIGHT ASSEMBLY RH (W/ FOG LIGHT)
14. INSTALL FOG LIGHT ASSEMBLY LH (W/ FOG LIGHT)

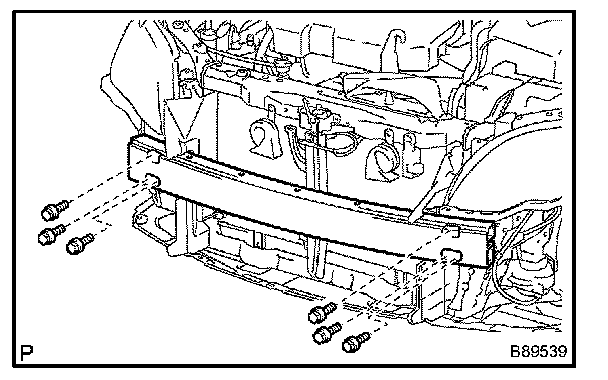

15. INSTALL FRONT BUMPER REINFORCEMENT




a. Install the front bumper reinforcement with the 6 bolts.

Torque: 92 N.m (938 kgf.cm, 68 ft.lbf)

16. INSTALL FRONT BUMPER ASSEMBLY




a. Install the front bumper assembly with the 2 bolts, 10 screws and 2 clips.

Torque:
Bolt: 23 N.m (235 kgf.cm, 17 ft.lbf)

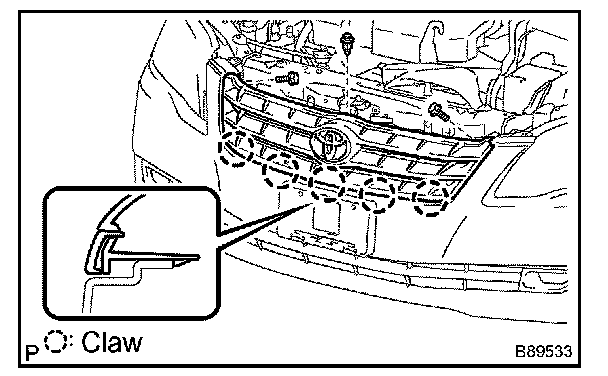

17. INSTALL RADIATOR GRILLE SUB-ASSEMBLY




a. Engage the 5 claws.
b. Install the radiator grille sub-assembly with the 2 bolts and clip.

Torque:
Bolt: 23 N.m (235 kgf.cm, 17 ft.lbf)

18. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT
19. PREPARATION FOR FOG LIGHT AIMING
20. FOG LIGHT AIMING INSPECTION
21. FOG LIGHT AIMING ADJUSTMENT
22. ADJUST LASER SENSOR
