Trunk / Liftgate: Service and Repair
OVERHAULHINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- A bolt without a torque specification is shown in the standard bolt chart.
1. REMOVE LUGGAGE COMPARTMENT DOOR COVER
a. Using a clip remover, remove the 7 clips (A).
b. Disengage the 6 clips (B) and remove the luggage compartment door cover.
2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

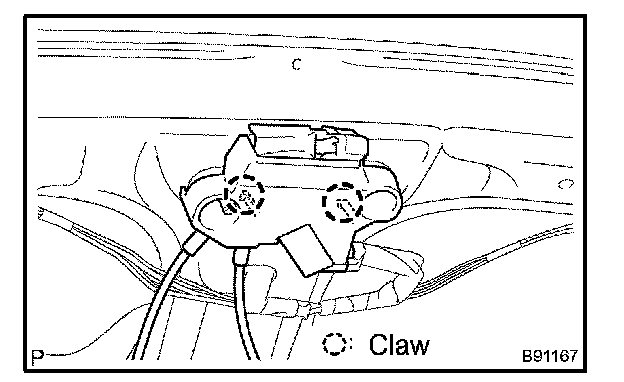

a. Disengage the claw and remove the cover.
b. Disconnect the connector and control cable.
c. Remove the 2 bolts and the luggage compartment door lock assembly.
3. REMOVE LUGGAGE COMPARTMENT DOOR HANDLE INSIDE
4. REMOVE REAR LIGHT ASSEMBLY LH
5. REMOVE REAR LIGHT ASSEMBLY RH
6. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
a. Install the luggage compartment door lock assembly with the 2 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
b. Install the control cable.
c. Connect the connector.
d. Install the cover.
