Mirrors: Description and Operation

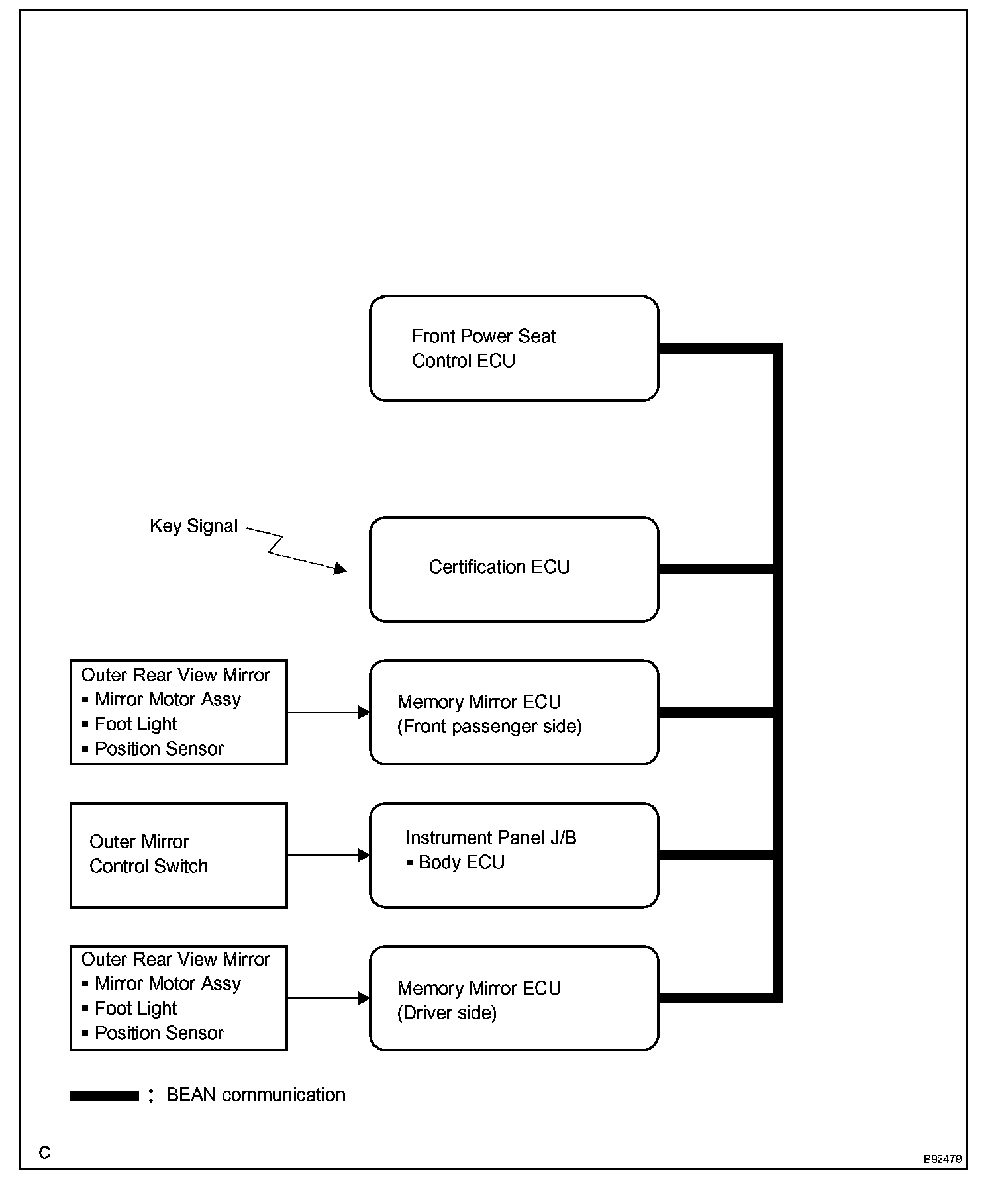

SYSTEM DIAGRAM

System Diagram:

SYSTEM DESCRIPTION
1. POWER MIRROR CONTROL SYSTEM DESCRIPTION
This system has these functions: automatic glare-resistant electrochromic (EC) mirror, electrical remote control type mirror, memory function, foot light function, and rear window defogger-linked mirror defogger.




2. FUNCTION OF MAIN COMPONENT




3. SYSTEM OPERATION

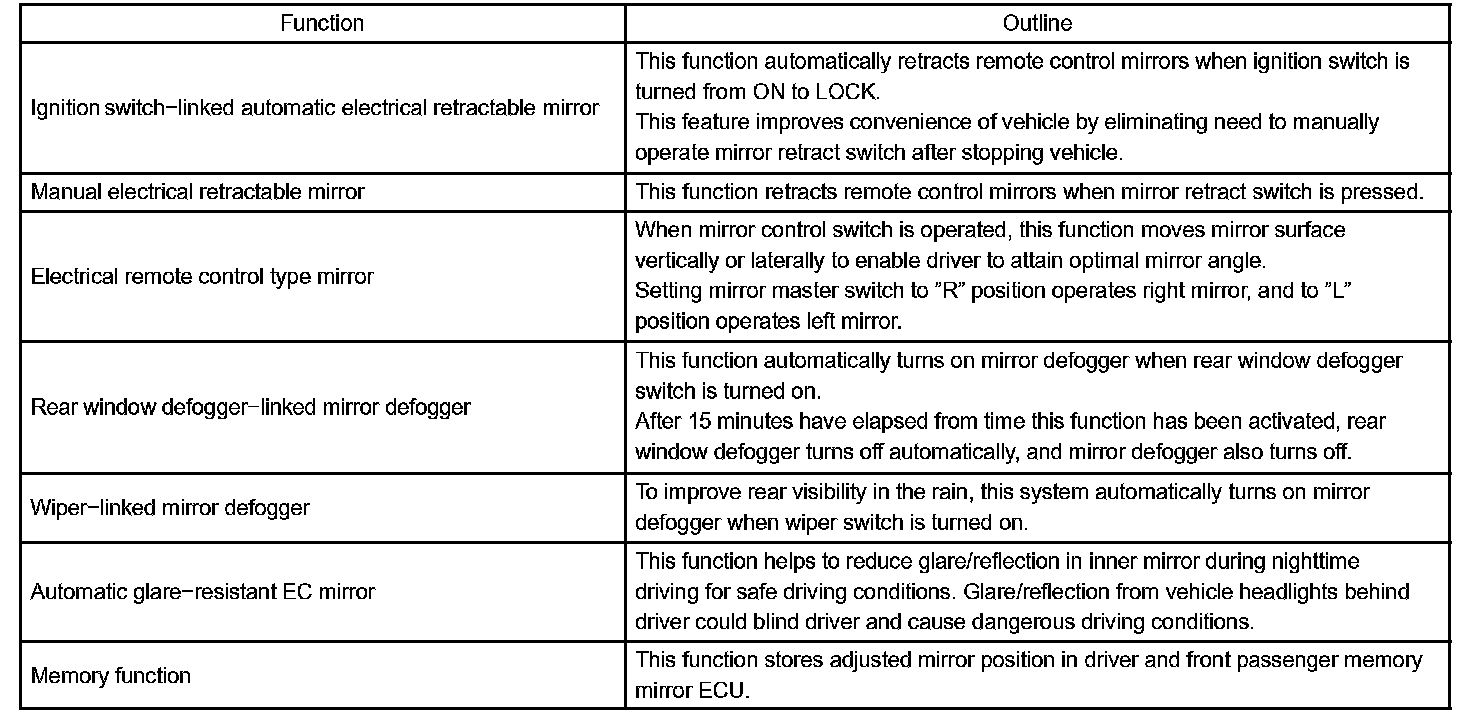

The remote control mirror has the given features:
