Inner Rear View Mirror Assy

REPLACEMENT

HINT: Installation is in the reverse order of removal.




1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
a. Release the 2 claws and remove the rain sensor cover.

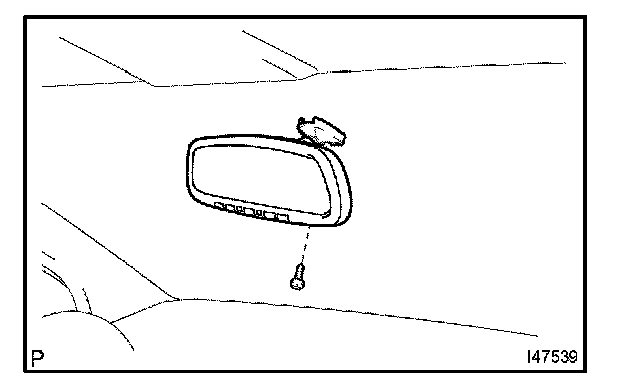

2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY
a. Remove the screw.
b. Remove the inner rear view mirror cover.
c. Disconnect the connector.
d. Remove the inner rear view mirror assembly.
