Exploded Views

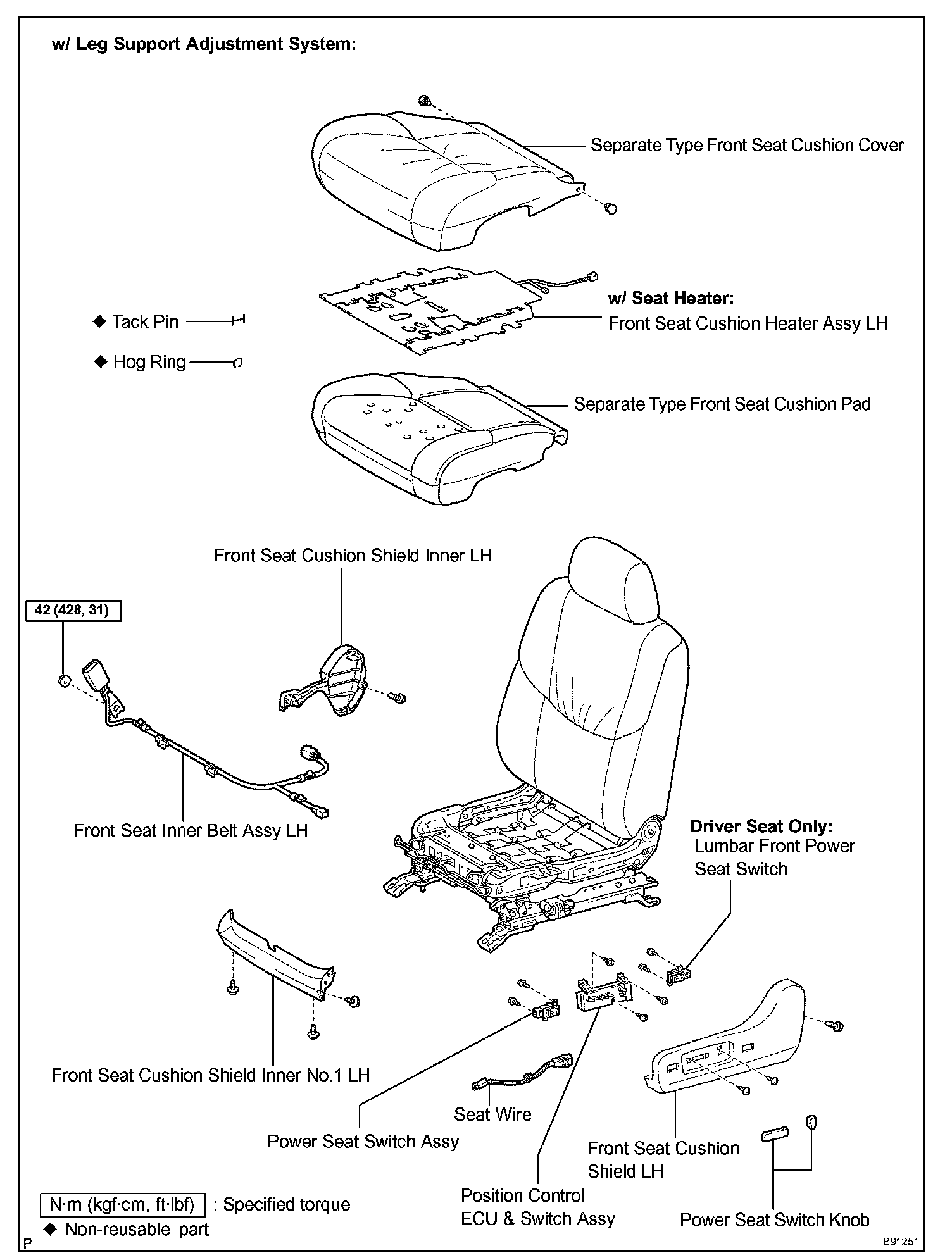

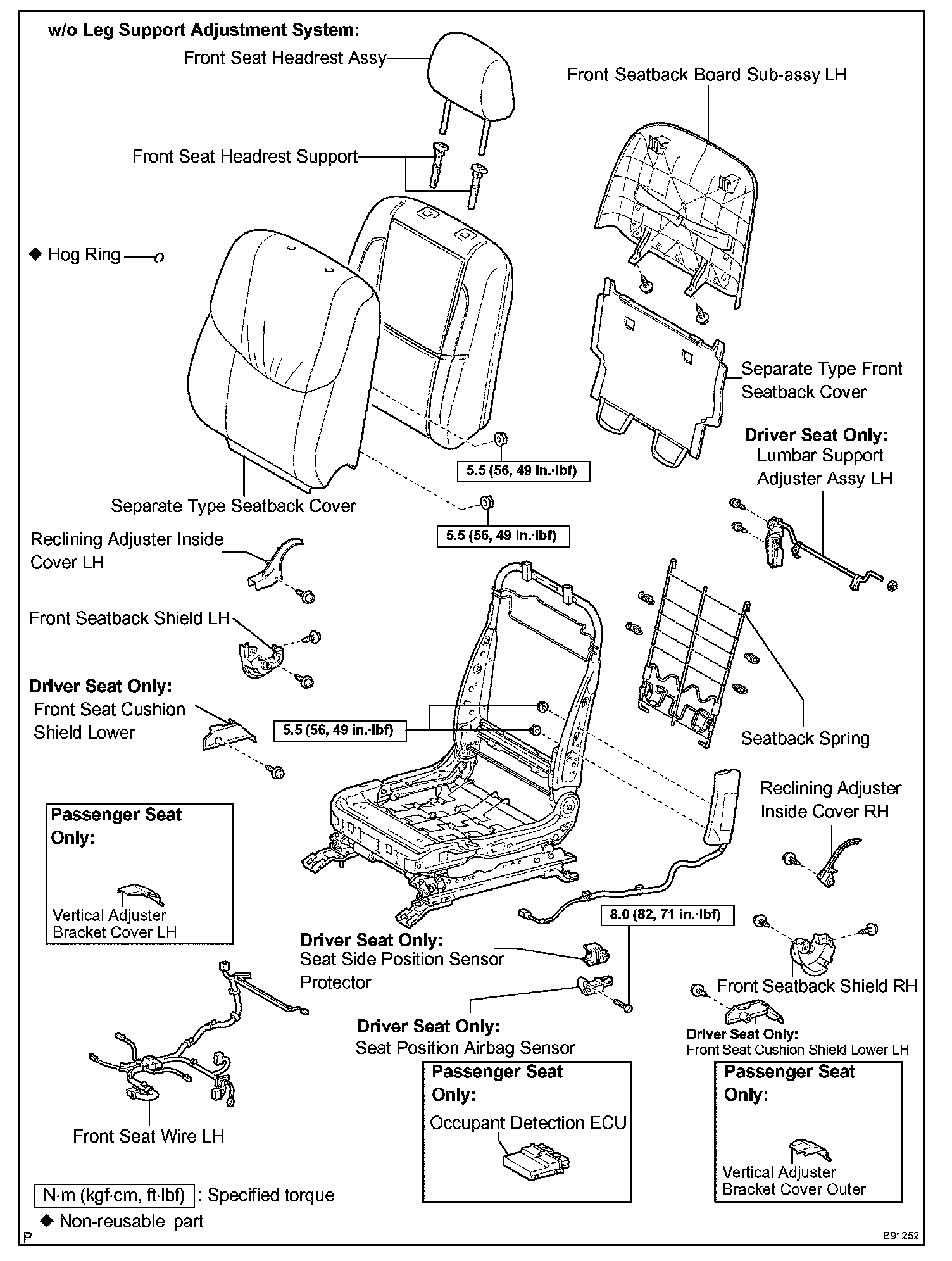

Front Seat Assy LH (Power Seat Type) Part 1:

Front Seat Assy LH (Power Seat Type) Part 2:

Front Seat Assy LH (Power Seat Type) Part 3:

Front Seat Assy LH (Power Seat Type) Part 4:

Front Seat Assy LH (Power Seat Type) Part 5:

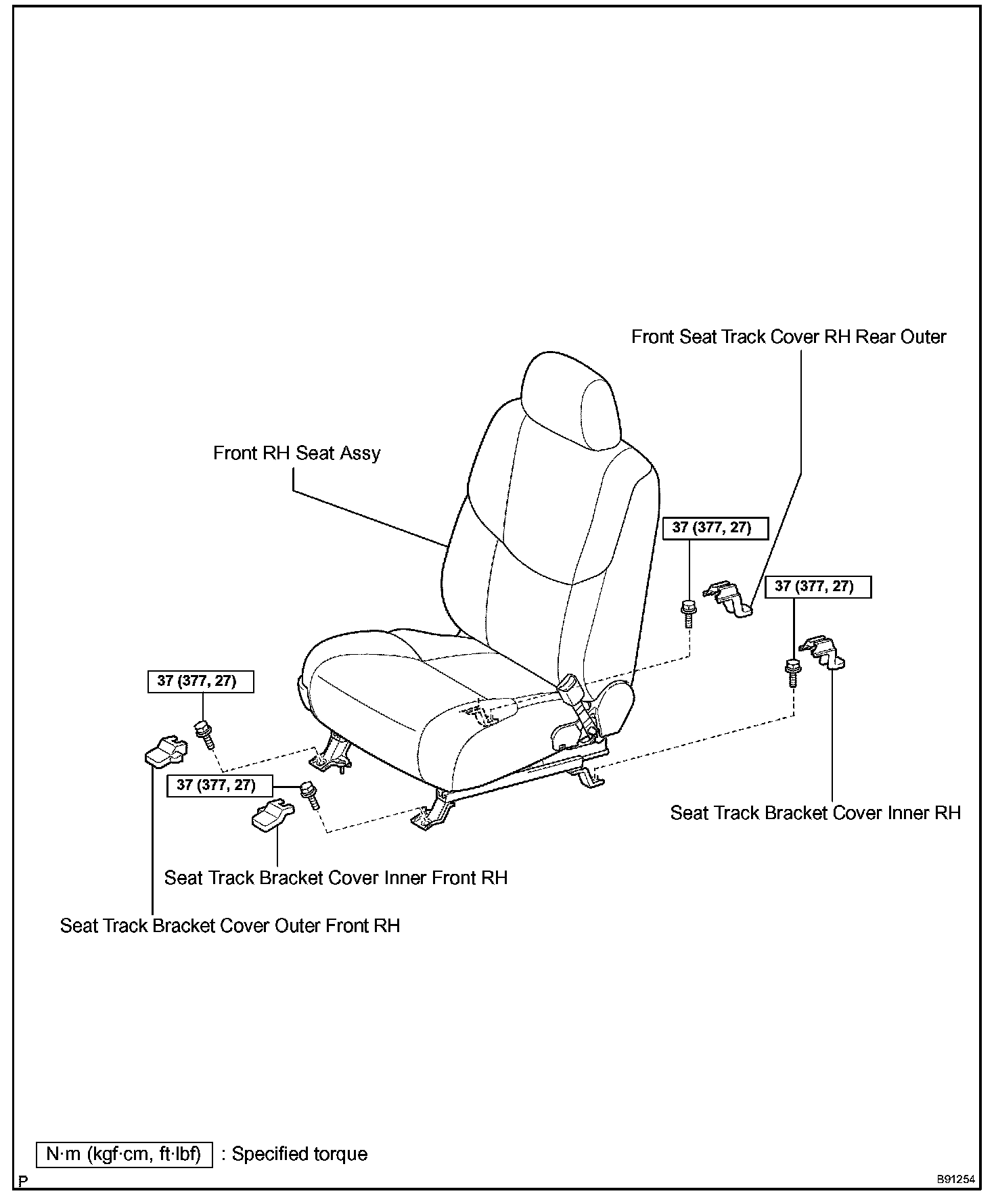

Front Seat Assy RH (Manual Seat Type) Part 1:

Front Seat Assy RH (Manual Seat Type) Part 2:

Front Seat Assy RH (Manual Seat Type) Part 3:

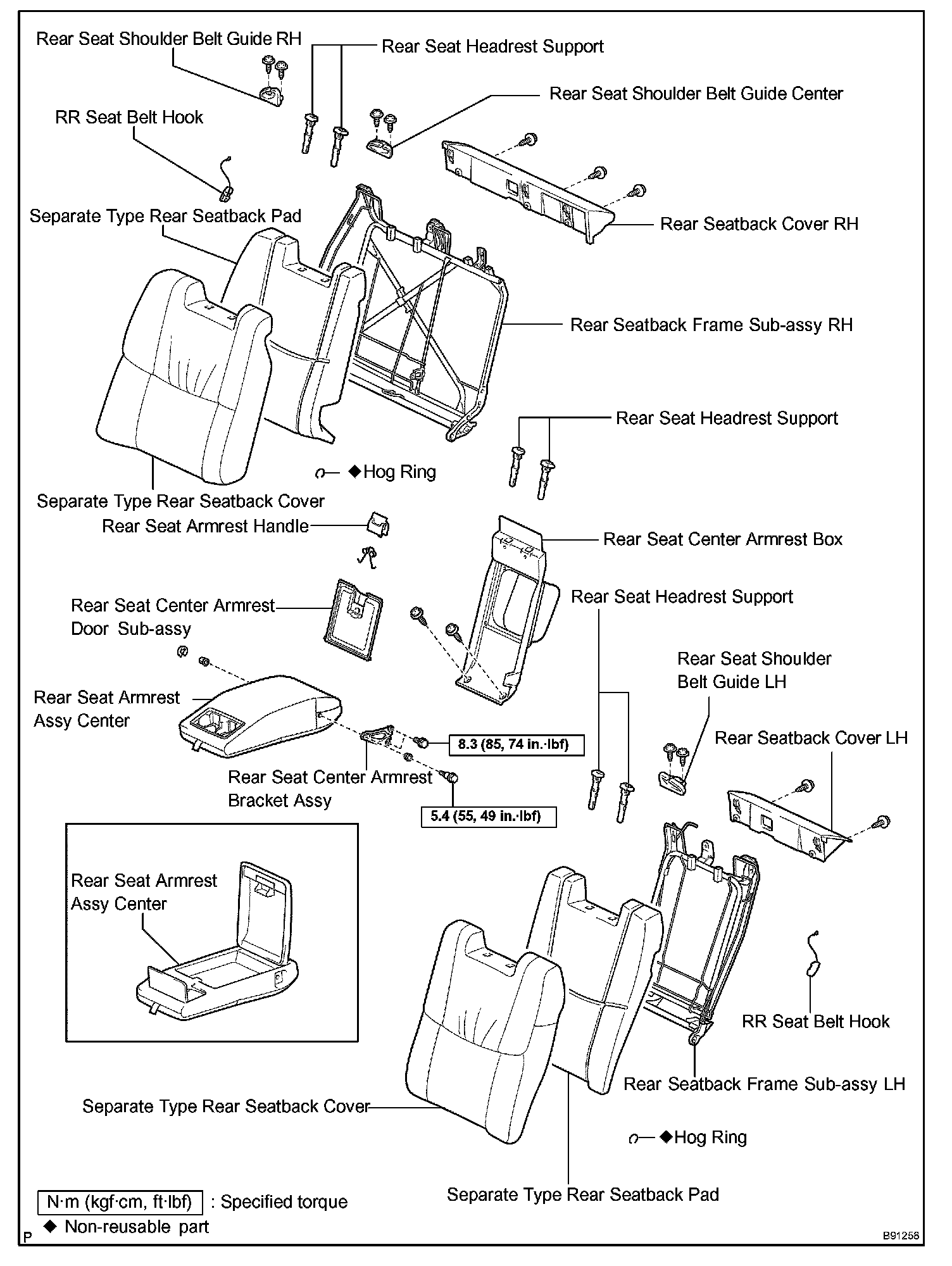

Rear Seat Assy Part 1:

Rear Seat Assy Part 2:

Rear Seat Assy Part 3:
