Front Seat Assy RH

Front Seat Assy RH (Manual Seat Type) Part 1:

Front Seat Assy RH (Manual Seat Type) Part 2:

Front Seat Assy RH (Manual Seat Type) Part 3:

OVERHAUL

CAUTION:
- Always wear safety gloves because the edges of the seatback frame and seat adjuster are sharp and may cause injury.
- Work must be started more than 90 seconds after the ignition switch is turned off and the negative (-) terminal cable is disconnected from the battery.
(The SRS is equipped with a back-up power source. If work is started within 90 seconds after disconnecting the negative (-) terminal cable of the battery, the SRS may deploy.)

HINT:
- Installation is in the reverse order of removal. However, special points concerning installation are indicated.
- Use the same procedures for the RH side and LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT RH
a. Disengage the 2 claws and remove the seat track bracket cover outer front RH.

3. REMOVE SEAT TRACK BRACKET COVER INNER FRONT RH
a. Disengage the 2 claws and remove the seat track bracket cover inner front RH.

4. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER
a. Disengage the 2 claws and remove the front seat track cover RH rear outer.

5. REMOVE SEAT TRACK BRACKET COVER INNER RH
a. Disengage the 2 claws and remove the seat track bracket cover inner RH.

6. REMOVE FRONT RH SEAT ASSEMBLY
a. Remove the 4 bolts.
b. Disconnect the connectors and clamp.
c. Remove the front RH seat assembly.

7. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH
8. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH
a. Using a screwdriver, pry out the reclining adjuster release handle RH.

HINT: Tape the screwdriver tip before use.

9. REMOVE FRONT SEAT CUSHION SHIELD RH
a. Remove the screw and the front seat cushion shield RH.

10. REMOVE FRONT SEAT CUSHION SHIELD INNER RH
a. Remove the screw and the front seat cushion shield inner RH.

11. REMOVE SEAT CUSHION COVER W/PAD
a. Disengage the hook and remove the 2 clips and the seat cushion cover together with the pad.

12. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER
a. Remove the hog rings and separate type front seat cushion cover.

13. REMOVE FRONT SEAT HEADREST ASSEMBLY
14. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY RH
a. Remove the 2 screws.
b. Disengage the 2 claws and remove the front seatback board sub-assembly RH.

15. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
a. Disengage the hooks and remove the separate type front seatback cover.

16. REMOVE FRONT SEAT HEADREST SUPPORT
a. Disengage the 2 claws and remove the front seat headrest support (LH side).

17. REMOVE FRONT SEAT HEADREST SUPPORT

HINT: Use the same procedures for the RH side and LH side.

18. REMOVE SEATBACK COVER W/PAD
a. Remove the 2 nuts and disconnect the separate type front seatback cover bracket.
b. Remove the seatback cover with pad.

19. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
a. Remove the hog rings and the separate type front seatback cover.

20. REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER
a. Remove the screw and the RH seat reclining adjuster inside cover.

21. REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER

HINT: Use the same procedures for the RH side and LH side.

22. REMOVE RECLINING ADJUSTER INSIDE COVER RH
a. Remove the screw and the reclining adjuster inside cover RH.

23. REMOVE RECLINING ADJUSTER INSIDE COVER LH

HINT: Use the same procedures for the RH side and LH side.

24. REMOVE OCCUPANT DETECTION ECU
25. REMOVE FRONT SEAT WIRE RH
26. INSTALL OCCUPANT DETECTION ECU




27. INSTALL SEPARATE TYPE FRONT SEATBACK COVER
a. Install the seatback pad.
b. Cover the top of the seatback pad with the separate type front seatback cover.

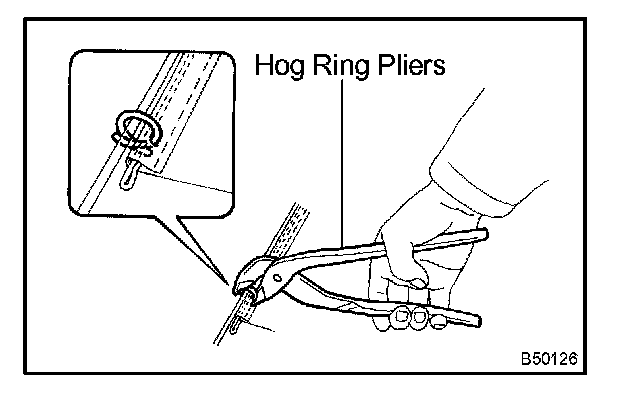

c. Using hog ring pliers, install the separate type front seatback cover to the seatback pad with new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

28. INSTALL SEATBACK COVER W/PAD
a. Install the seatback cover with pad.
b. Install the separate type front seatback cover bracket with the 2 nuts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

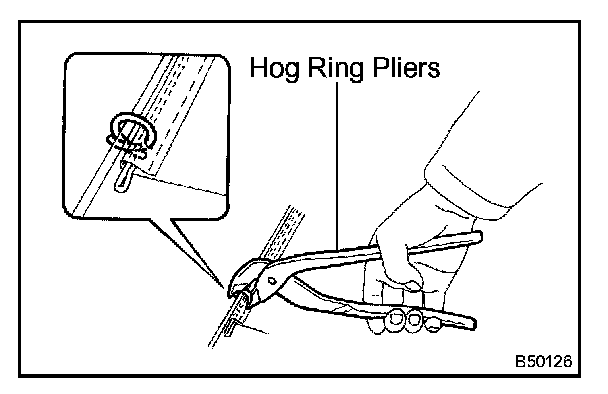

c. Using hog ring pliers, install the separate type front seatback cover.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

d. Engage the hooks.

29. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER
a. Install the front seat cushion pad to the seat cushion cover.




b. Using hog ring pliers, install the separate type front seat cushion cover to the seat cushion pad with new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

30. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH
31. INSTALL FRONT RH SEAT ASSEMBLY
a. Connect the connectors under the front seat assembly LH.
b. Install the front seat assembly LH with the 4 bolts.

Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

32. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
33. PERFORM INITIALIZATION
34. CHECK SEAT SLIDE ADJUSTER LOCKS
a. When sliding the front seat assembly LH, check that both sides of the adjuster lock simultaneously.

35. INITIALIZE FRONT PASSENGER OCCUPANT CLASSIFICATION SYSTEM
36. INSPECT SRS WARNING LIGHT
