Rear Seat Assy
Rear Seat Assy Part 1:
Rear Seat Assy Part 2:
Rear Seat Assy Part 3:
OVERHAUL
HINT:
- Installation is in the reverse order of removal.
- Only installation procedures requiring additional information are included.
1. REMOVE REAR SEAT CUSHION ASSEMBLY

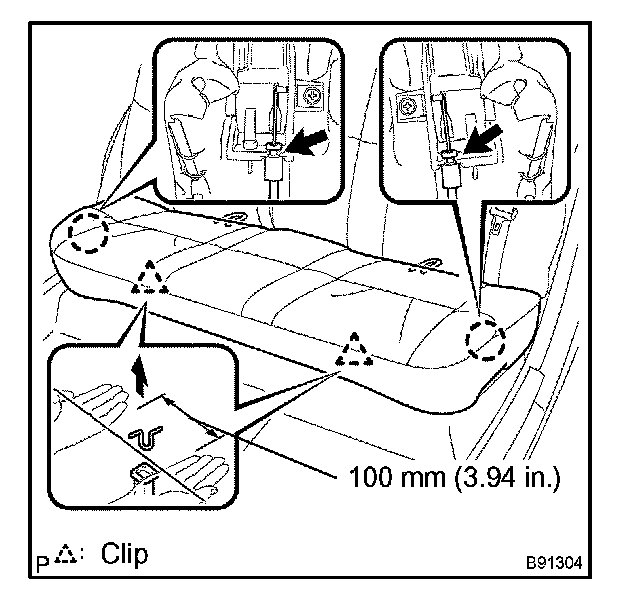

a. Pull up the 2 portions of the rear seat cushion assembly as shown in the illustration and remove it.
A: 100 mm (3.94 in.) or less
NOTE: In this case, hold the base of the clip up to prevent the cushion frame from being distorted.
b. Disconnect each wire of the reclining adjuster arm sub-assembly RH and remove the rear seat cushion assembly.
2. REMOVE REAR SEAT HEADREST ASSEMBLY

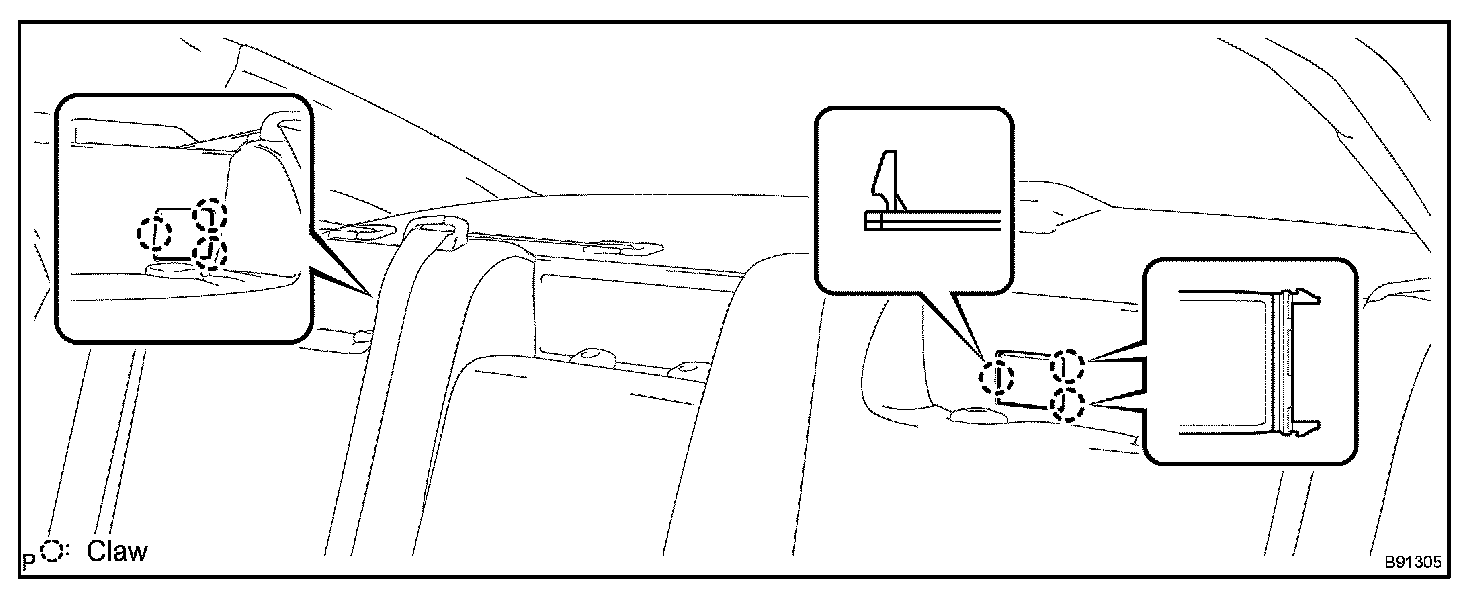

3. REMOVE RR SHELF COVER CAP
a. Disengage the 6 claws and remove the 2 RR shelf cover caps.
4. REMOVE REAR SEATBACK ASSEMBLY LH

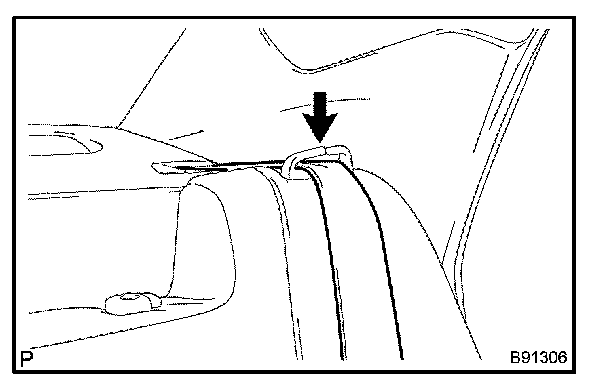

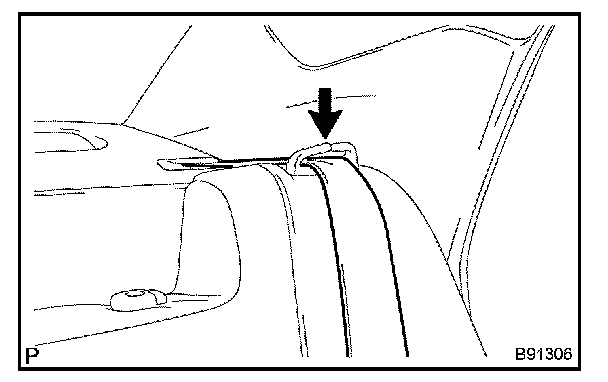

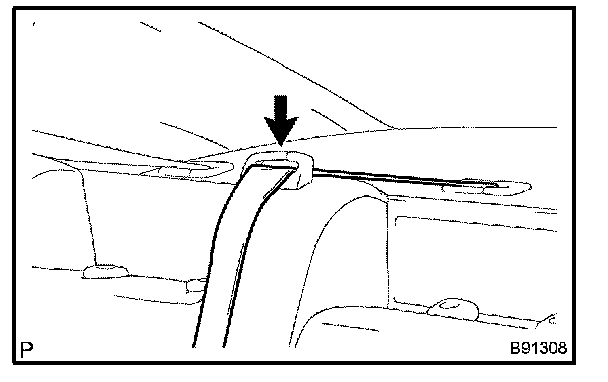

a. Remove the rear seat belt from the rear seat shoulder belt guide LH.

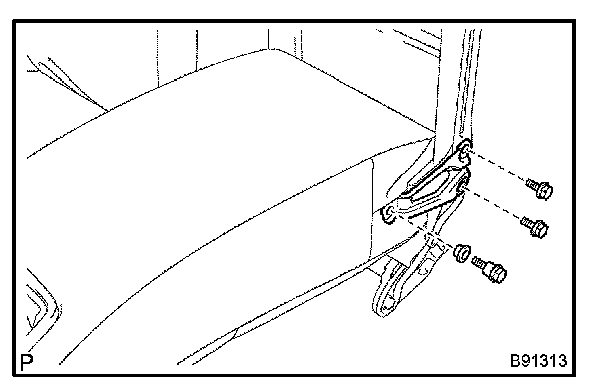

b. Remove the bolt, 2 nuts and the rear seatback assembly LH.
5. REMOVE REAR SEATBACK ASSEMBLY RH

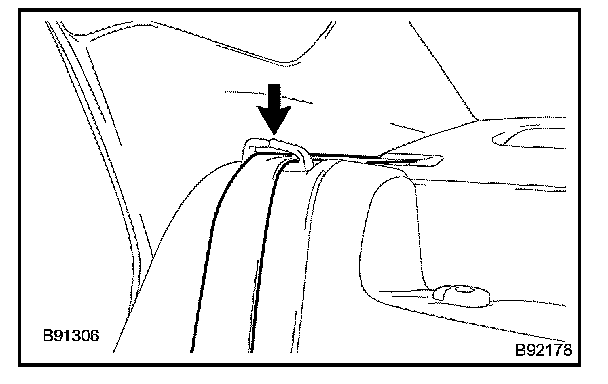

a. Remove the rear seat belt from the rear seat shoulder belt guide RH.
b. Remove the rear seat belt from the rear seat shoulder belt guide center.
c. Remove the bolt, 2 nuts and the rear seatback assembly RH.

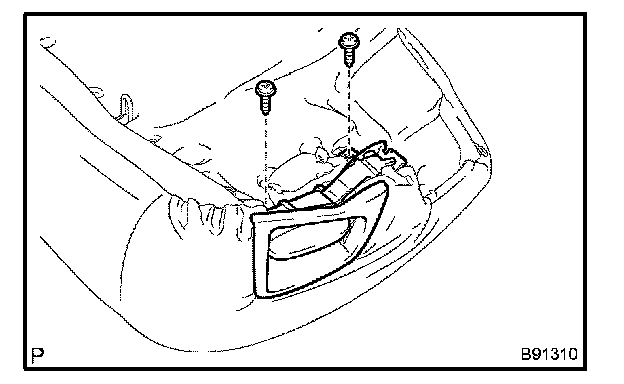

6. REMOVE RECLINING RELEASE HANDLE SUB-ASSEMBLY LH
a. Remove the 2 screws and the reclining release handle sub-assembly LH.
7. REMOVE RECLINING RELEASE HANDLE SUB-ASSEMBLY RH
HINT: Use the same procedures for the RH side and LH side.
8. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

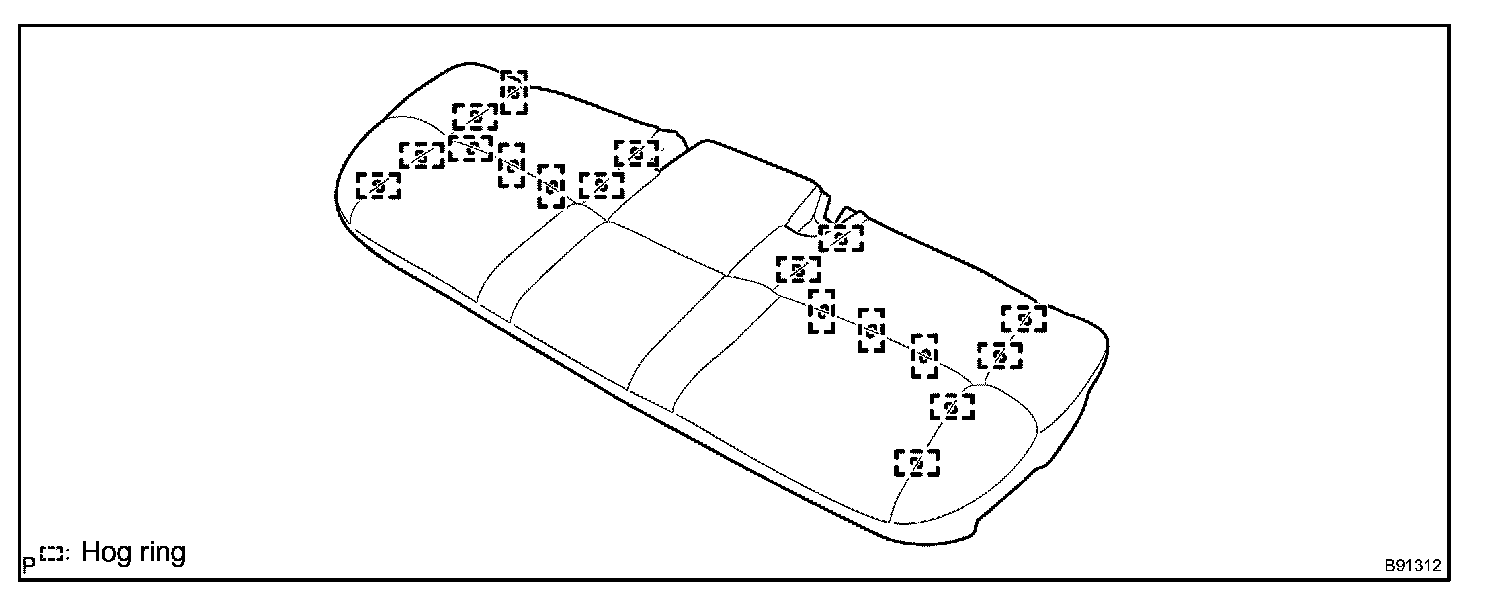

a. Remove the 65 hog rings and the bench type rear seat cushion cover.
9. REMOVE BRACKET
a. Remove the 3 bolts, E-ring and the rear seat center armrest bracket LH.
10. REMOVE REAR SEAT ARMREST ASSEMBLY CENTER
a. Remove the rear seat armrest assembly center.
11. REMOVE REAR SEAT ARMREST HANDLE
a. Open the rear seat center armrest door sub-assembly as shown in the illustration.

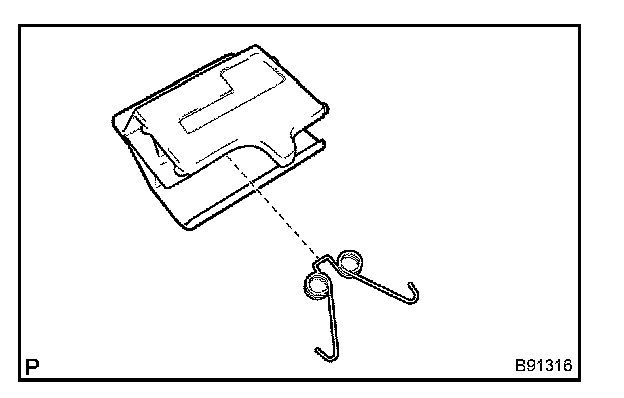

b. Remove the ring and remove the rear seat armrest handle and spring as a unit.
c. Remove the rear seat armrest handle.

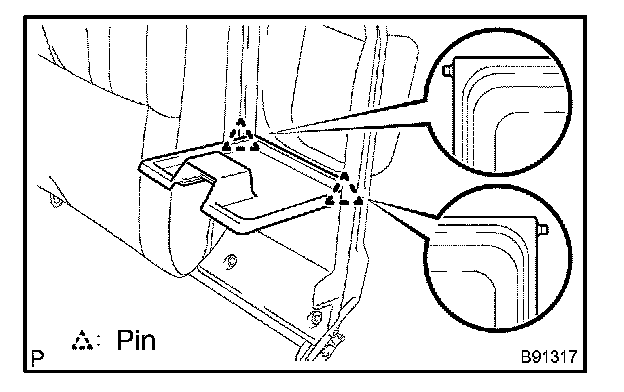

12. REMOVE REAR SEAT CENTER ARMREST DOOR SUB-ASSEMBLY
a. Disengage the RH side pin.
b. Disengage the LH side pin and remove the rear seat center armrest door sub-assembly.
13. REMOVE REAR SEAT HEADREST SUPPORT
a. Disengage the 6 claws and remove the 3 rear seat headrest supports (LH side).
14. REMOVE REAR SEAT HEADREST SUPPORT
HINT: Use the same procedures for the RH side and LH side.

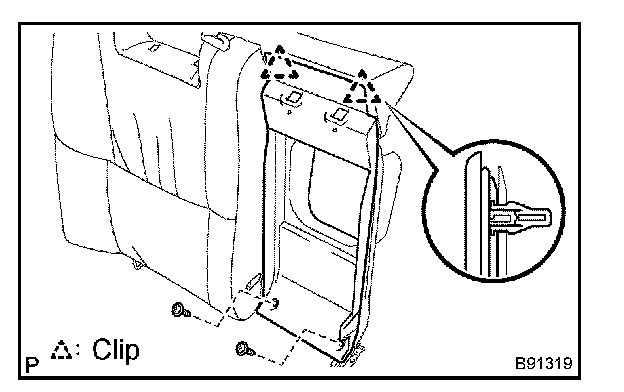

15. REMOVE REAR SEAT CENTER ARMREST BOX
a. Remove the 2 screws.
b. Disengage the 2 clips and remove the rear seat center armrest box.
16. REMOVE REAR SEAT SHOULDER BELT GUIDE LH
a. Remove the 2 screws and the rear seat shoulder belt guide LH.
17. REMOVE REAR SEAT SHOULDER BELT GUIDE RH
HINT: Use the same procedures for the RH side and LH side.
18. REMOVE REAR SEAT SHOULDER BELT GUIDE CENTER
a. Remove the 2 screws and the rear seat shoulder belt guide center.
19. REMOVE REAR SEATBACK COVER LH
a. Remove the 2 screws.
b. Disengage the 2 claws and remove the rear seatback cover LH.
20. REMOVE REAR SEATBACK COVER RH
a. Remove the 3 screws.
b. Disengage the 2 claws and remove the rear seatback cover RH.
21. REMOVE RR SEAT BELT HOOK
a. Remove the 5 hog rings and the RR seat belt hook.
HINT: Use the same procedures for the RH side and LH side.
22. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH

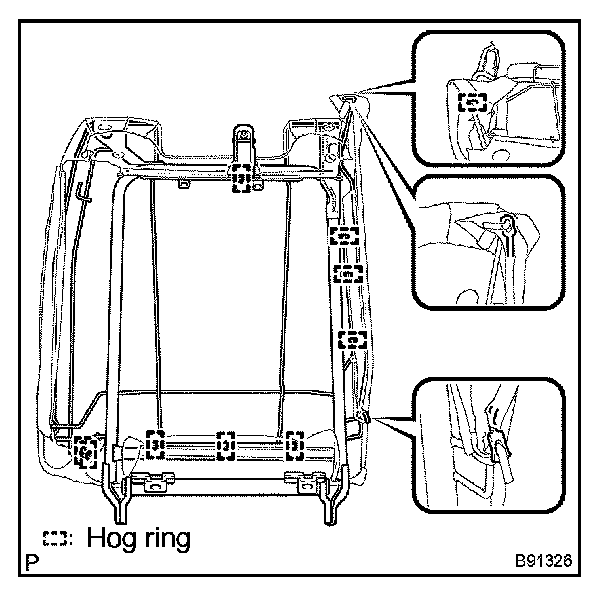

a. Disengage the 2 J-clips.

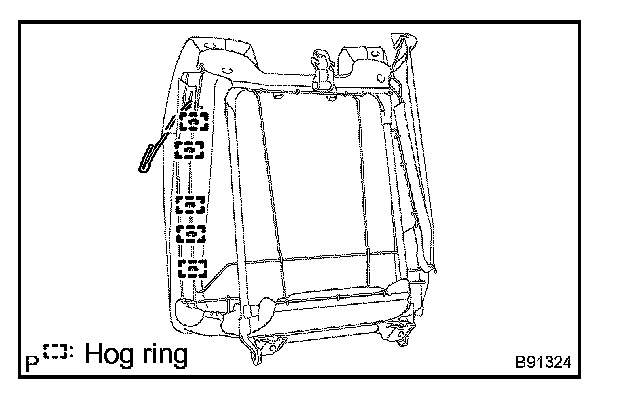

b. Remove the 10 hog rings.
c. Disengage the 2 hooks and remove the rear seatback frame sub-assembly LH.
23. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH
a. Disengage the 2 J-clips.

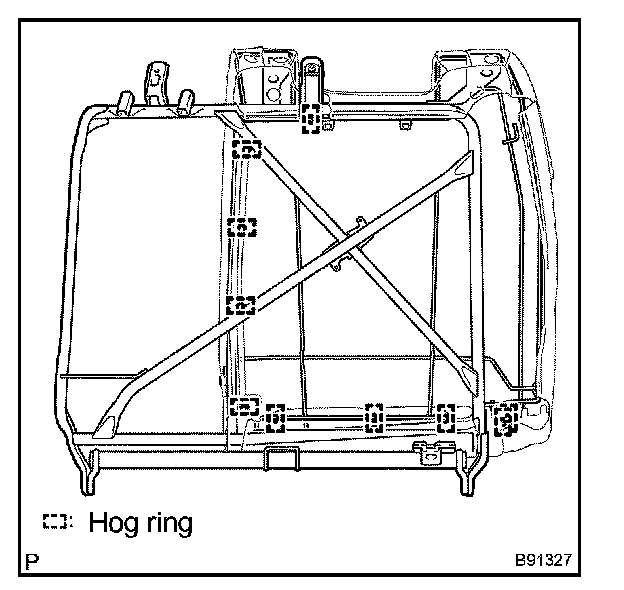

b. Remove the 10 hog rings and the rear seatback frame sub-assembly RH.
24. REMOVE SEPARATE TYPE REAR SEATBACK COVER

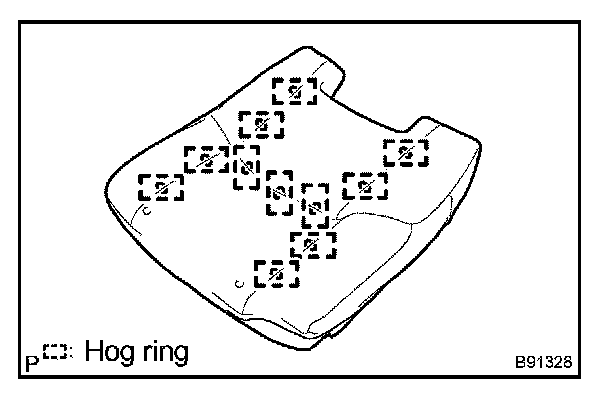

a. Remove the 11 hog rings and the separate type rear seatback cover.
25. REMOVE SEPARATE TYPE REAR SEATBACK COVER
HINT: Use the same procedures for the RH side and LH side.
26. REMOVE RECLINING ADJUSTER ARM SUB-ASSEMBLY LH

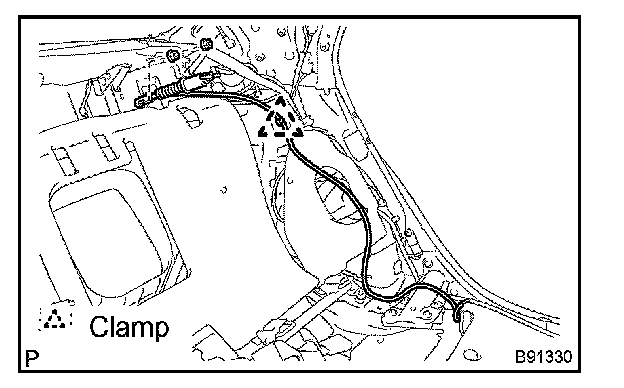

a. Disengage the clamp and remove the 2 nuts and the reclining adjuster arm sub-assembly LH.
27. REMOVE RECLINING ADJUSTER ARM SUB-ASSEMBLY RH
HINT: Use the same procedures for the RH side and LH side.
28. INSTALL RECLINING ADJUSTER ARM SUB-ASSEMBLY LH
a. Install the reclining adjuster arm sub-assembly LH with the 2 nuts.
Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)
b. Engage the clamp.
29. INSTALL RECLINING ADJUSTER ARM SUB-ASSEMBLY RH
HINT: Use the same procedures for the RH side and LH side.
30. INSTALL SEPARATE TYPE REAR SEATBACK COVER
a. Using hog ring pliers, install the separate type rear seat back cover with 13 new hog rings.
NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.
31. INSTALL SEPARATE TYPE REAR SEATBACK COVER
HINT: Use the same procedures for the RH side and LH side.
32. INSTALL BRACKET

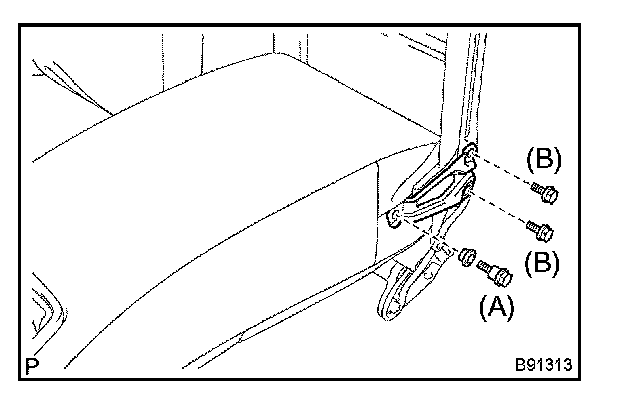

a. Install the rear seat center armrest bracket LH with the 3 bolts.
Torque:
5.4 N.m (55 kgf.cm, 48 in.lbf) (Bolt A)
8.3 N.m (85 kgf.cm, 74 in.lbf) (Bolt B)
b. Install the E-ring.
33. INSTALL BENCH TYPE REAR SEAT CUSHION COVER
a. Using hog ring pliers, install the bench type rear seat cushion cover with 65 new hog rings.
NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.
34. INSTALL REAR SEATBACK ASSEMBLY RH
a. Engage the rear seatback frame sub-assembly RH with the end of the reclining adjuster arm sub-assembly RH.

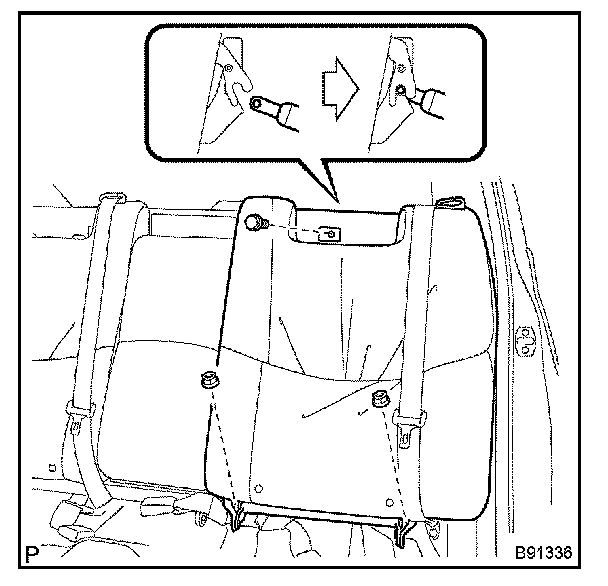

b. Install the rear seatback assembly RH with the bolt and 2 nuts.
Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)
HINT: Compress completely adjuster arm sub-assembly before engage rear seatback frame sub-assembly.
c. Install the rear seat belt to the rear seat shoulder belt guide center.
d. Install the rear seat belt to the rear seat shoulder belt guide RH.
35. INSTALL REAR SEATBACK ASSEMBLY LH
a. Engage the rear seatback frame sub-assembly LH with the end of the reclining adjuster arm sub-assembly LH.
b. Install the rear seatback assembly LH with the bolt and 2 nuts.
Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)
HINT: Compress completely adjuster arm sub-assembly before engage rear seatback frame sub-assembly.
c. Install the rear seat belt to the rear seat shoulder belt guide LH.
