ABS Without VSC

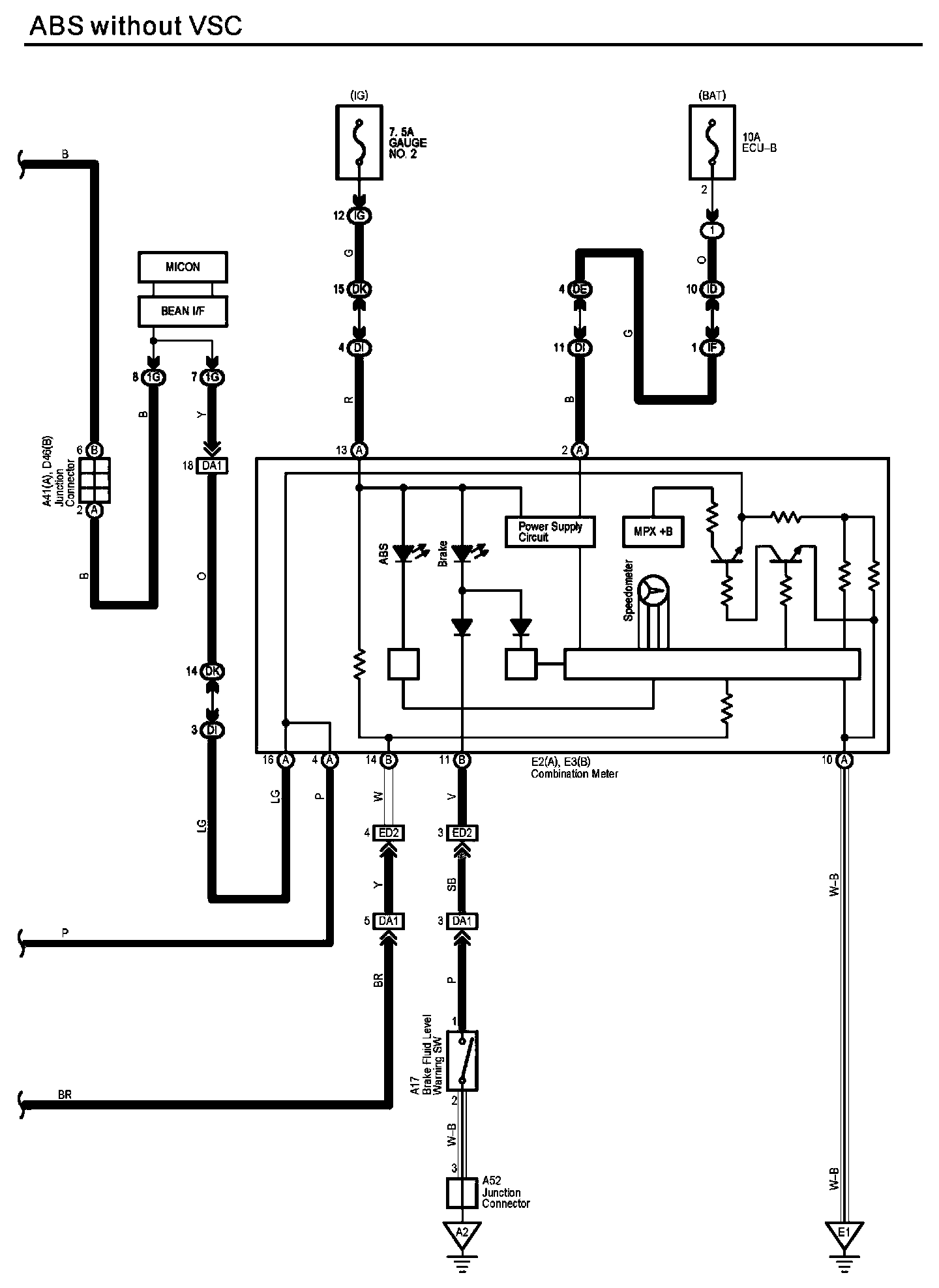

ABS Without VSC Part 1:

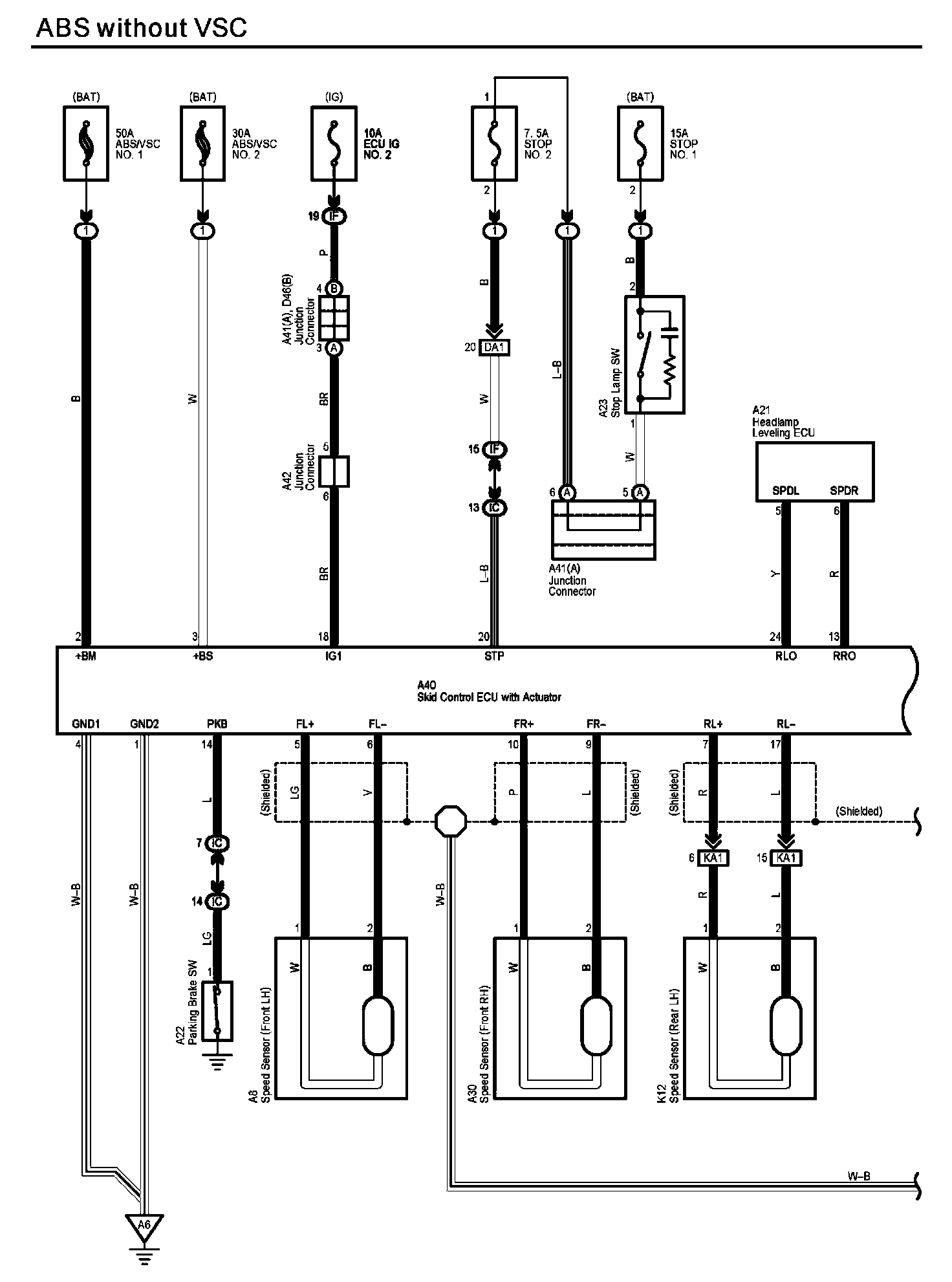

ABS Without VSC Part 2:

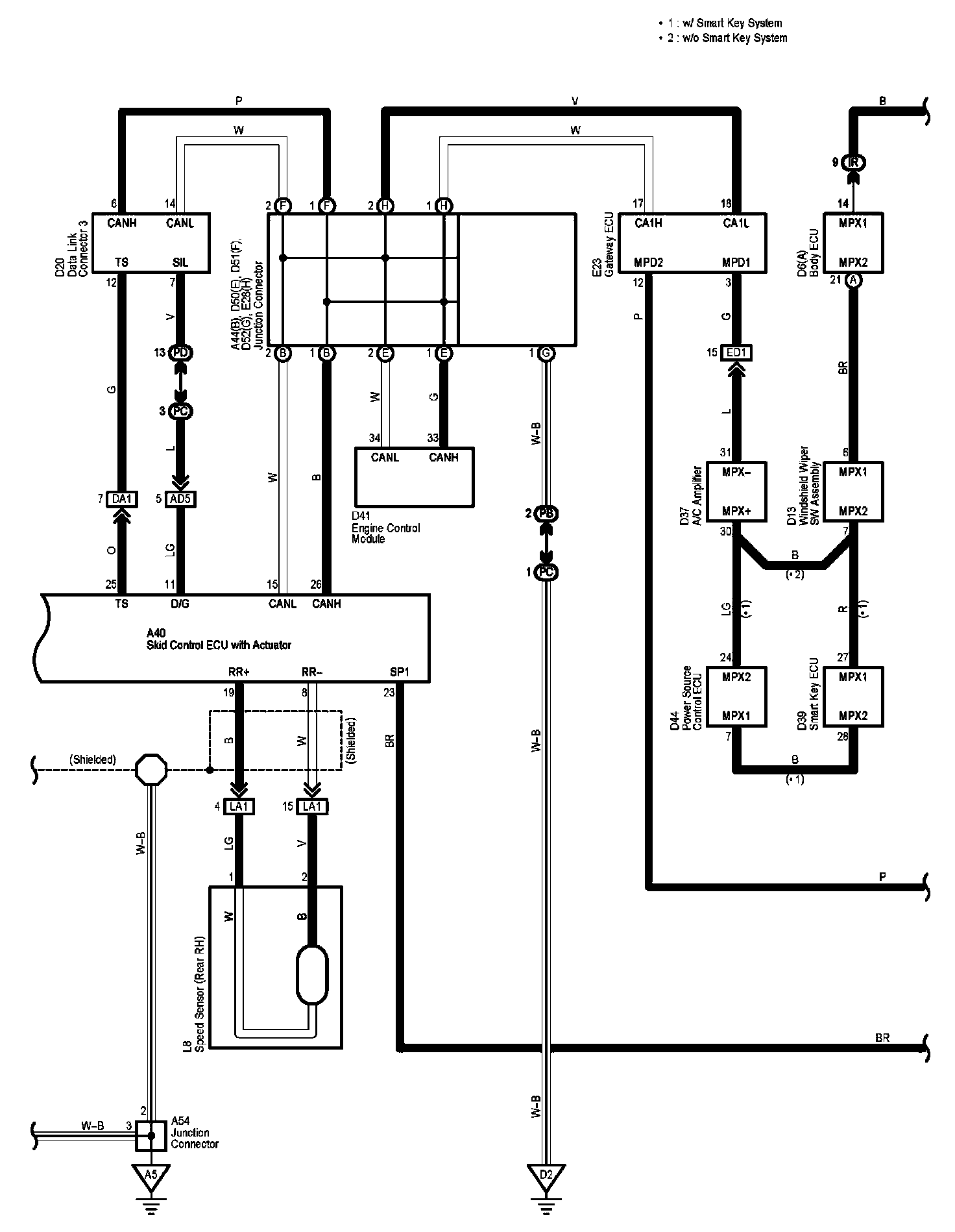

ABS Without VSC Part 3:

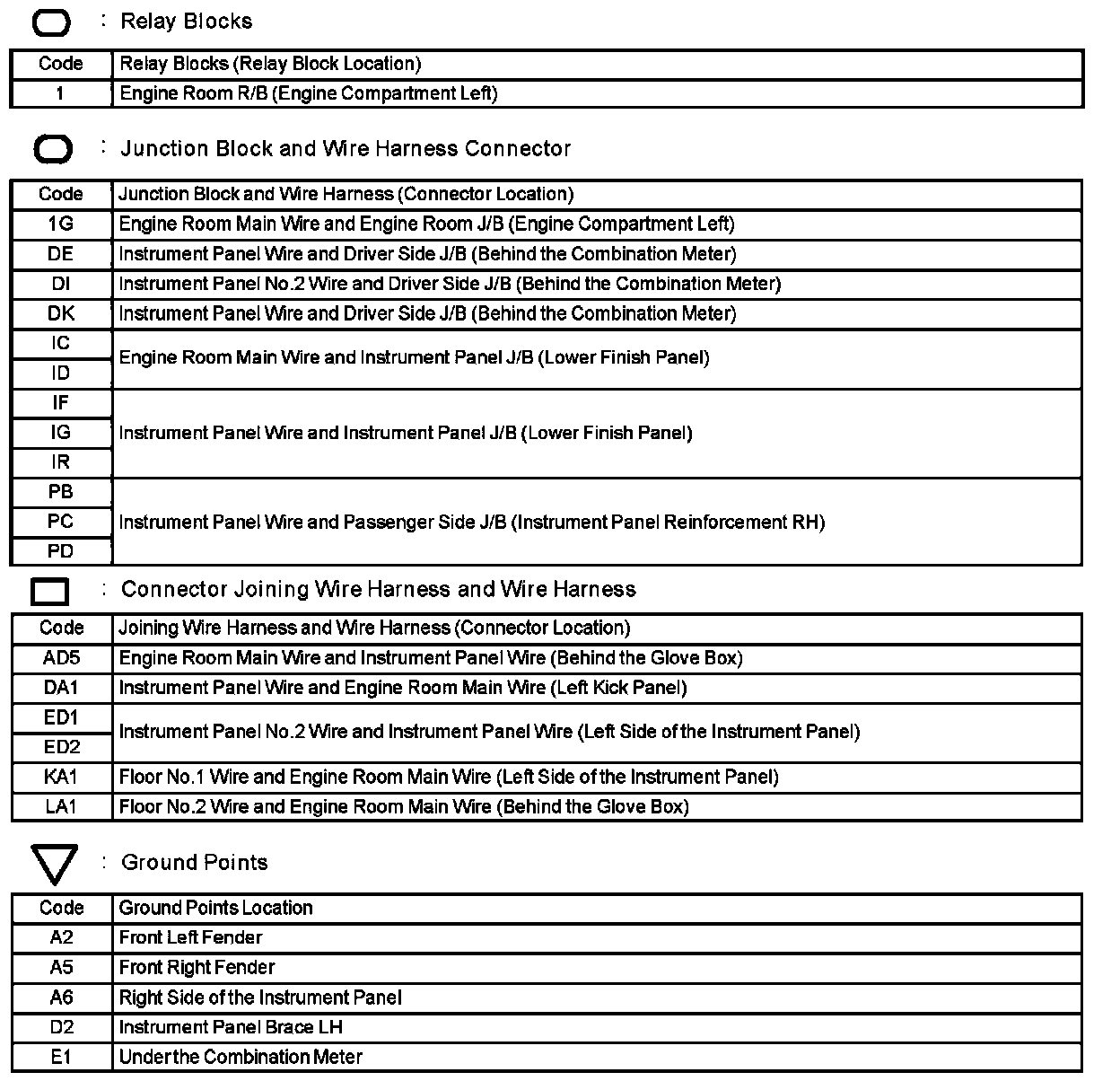

Diagram Legend:
Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
