Heater Control Switch Circuit
HEATER CONTROL SWITCH CIRCUITCIRCUIT DESCRIPTION
The heater control panel LH receives the heater control panel switch operation signal from the heater control panel RH.
Wiring Diagram:

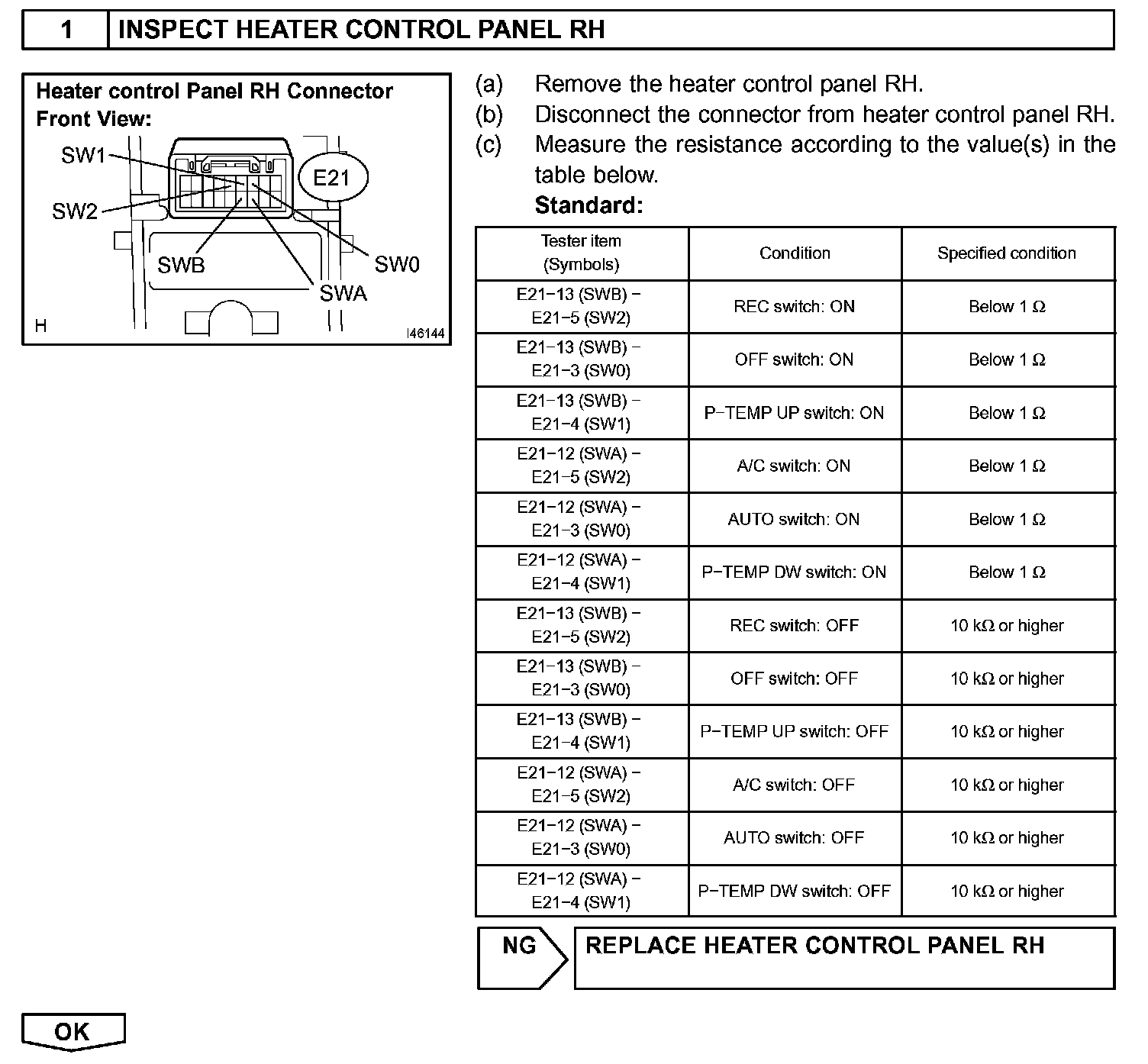

Step 1:

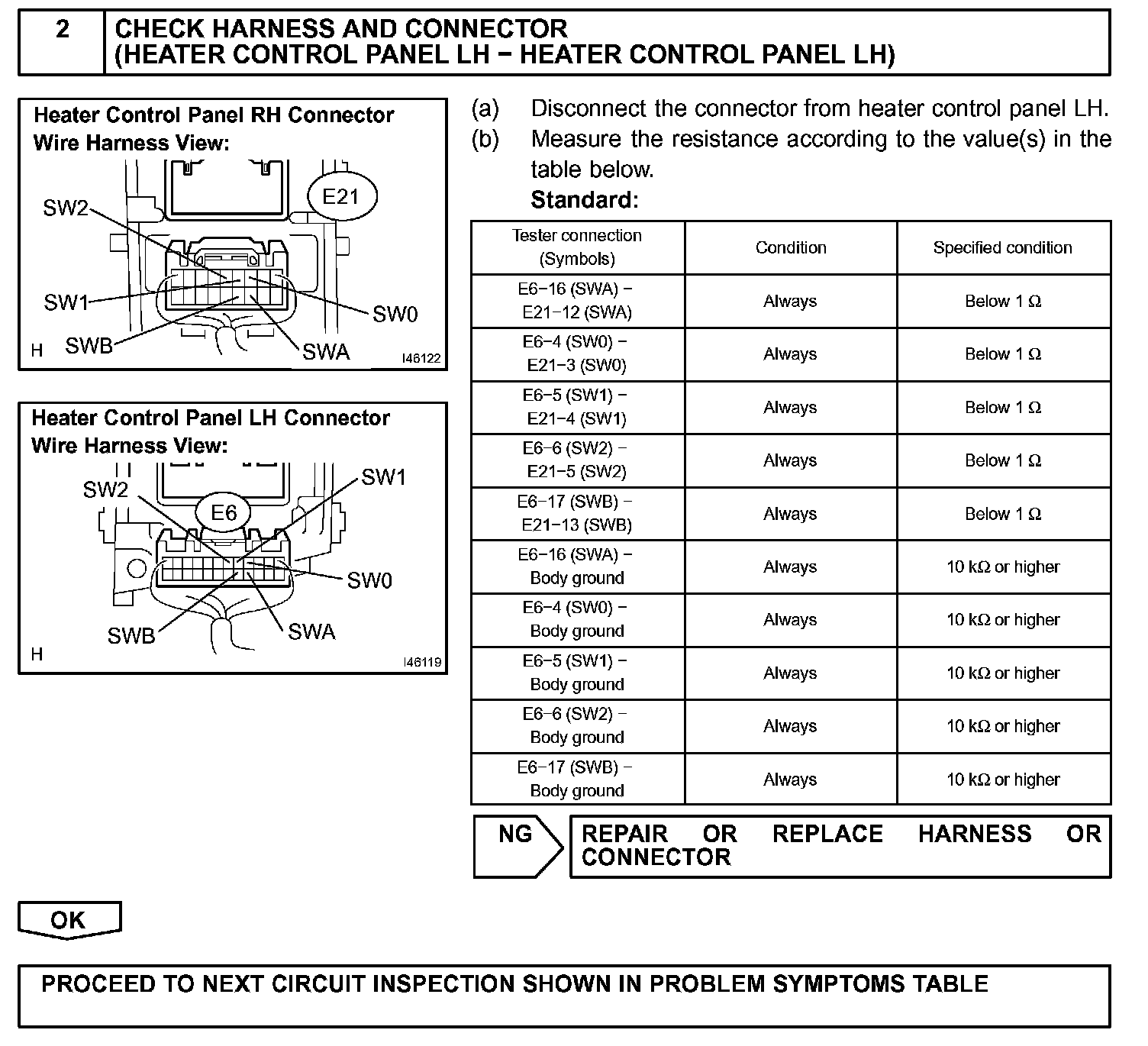

Step 2:
INSPECTION PROCEDURE
