Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER




2. REMOVE CIGARETTE LIGHTER ASSEMBLY

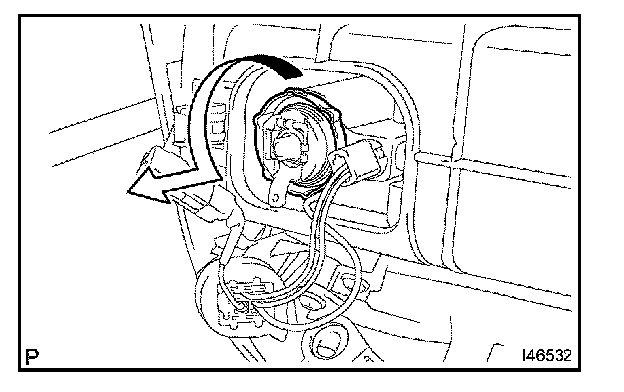

a. Remove the ring nut as shown in the illustration.

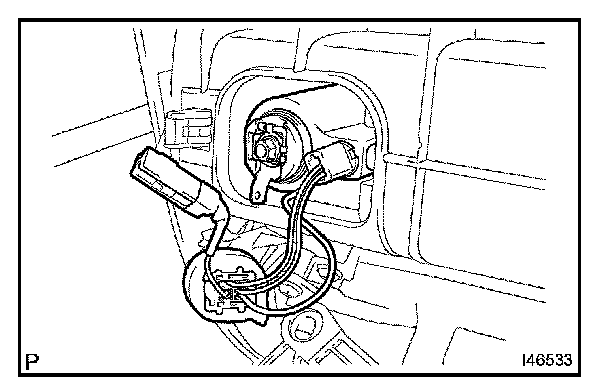

b. Remove cigarette lighter socket and remove the cigarette lighter assembly.
