Instrument Panel, Gauges and Warning Indicators: Description and Operation

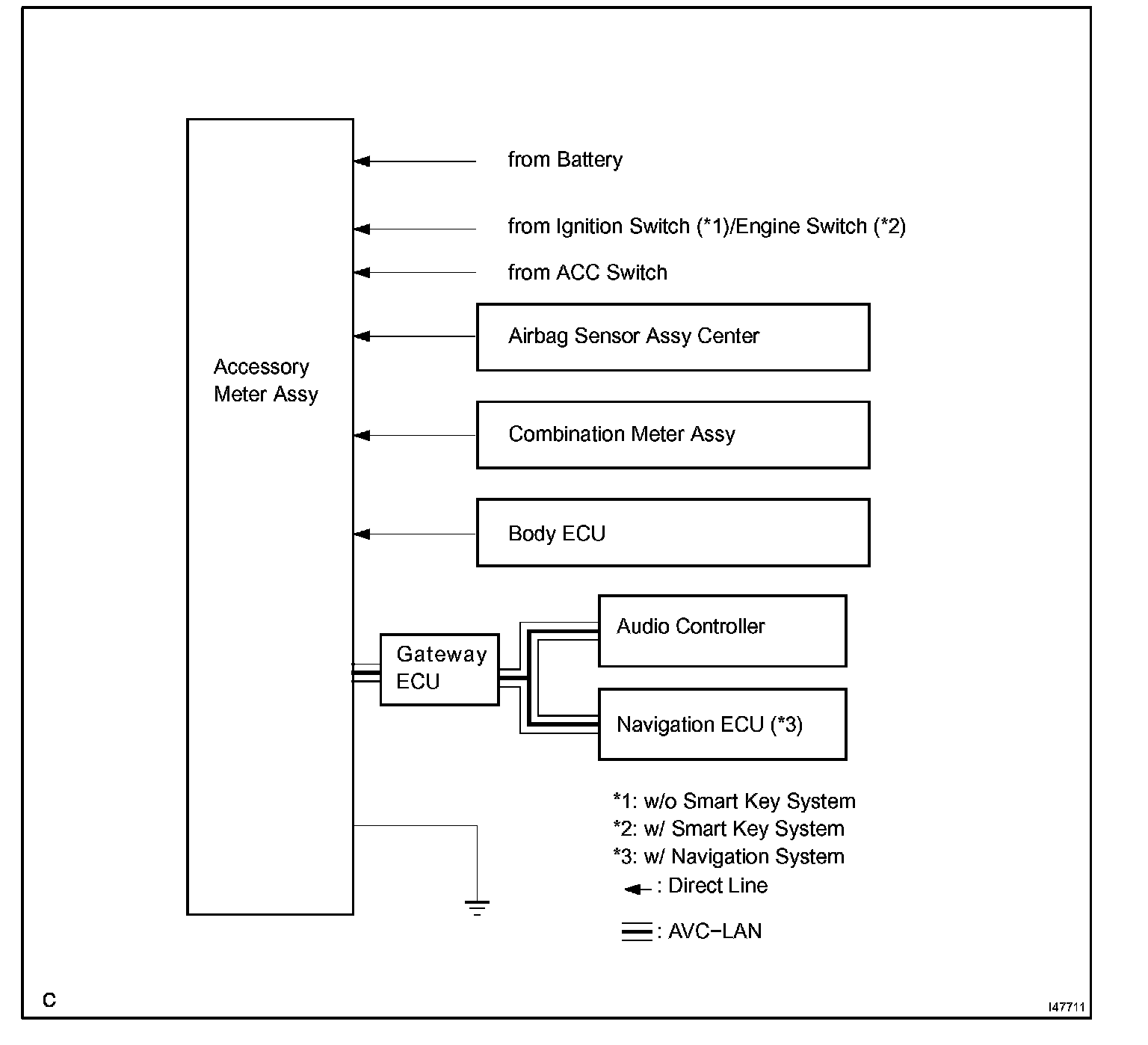

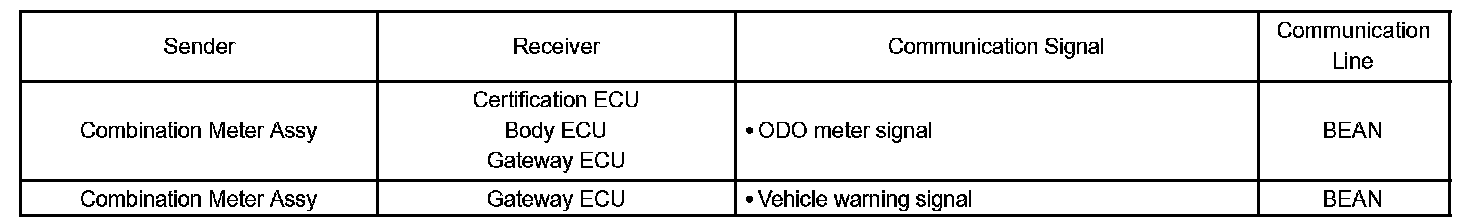

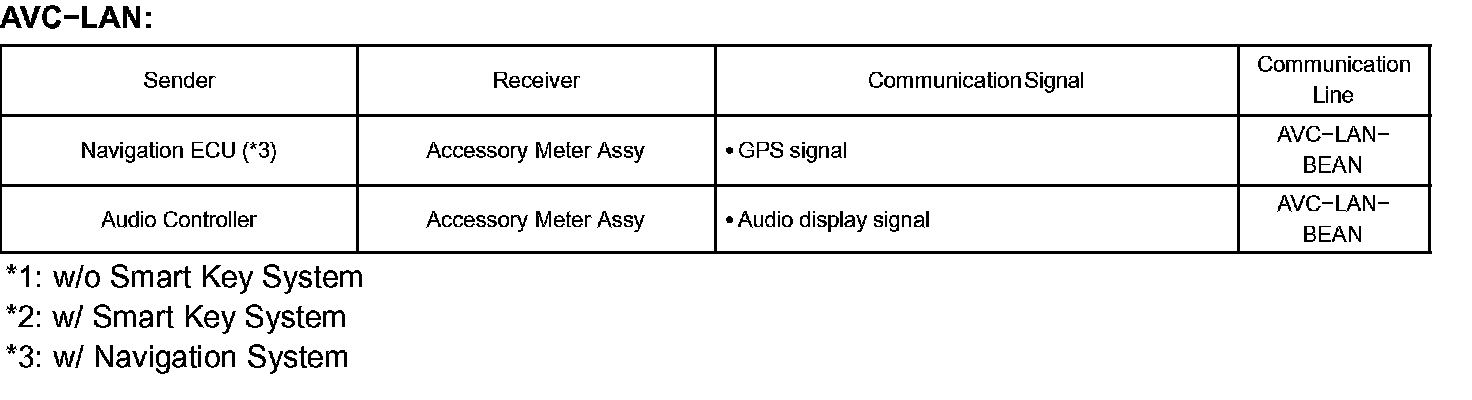

SYSTEM DIAGRAM

Part 1:

Part 2:

1. COMBINATION METER ASSEMBLY













2. ACCESSORY METER ASSEMBLY

SYSTEM DESCRIPTION













1. Combination Meter Assy

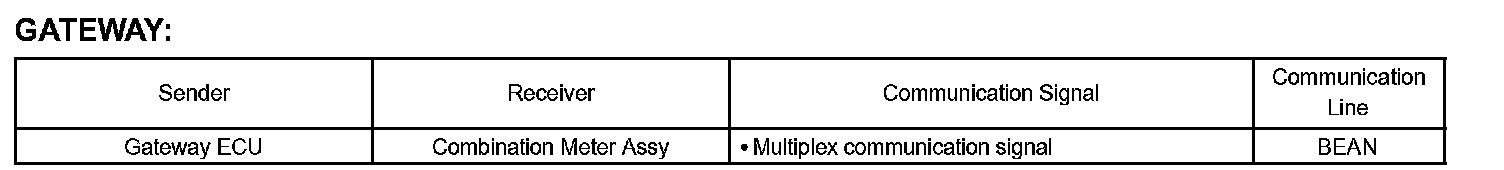

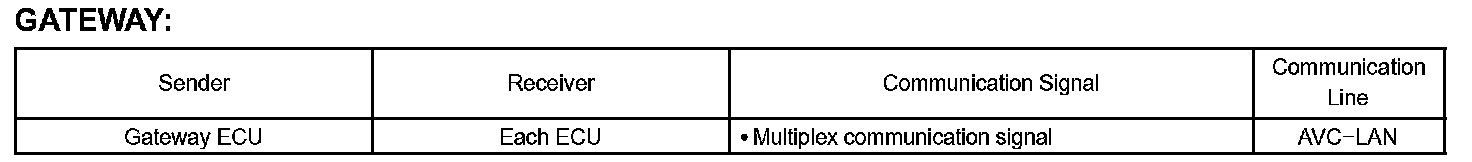

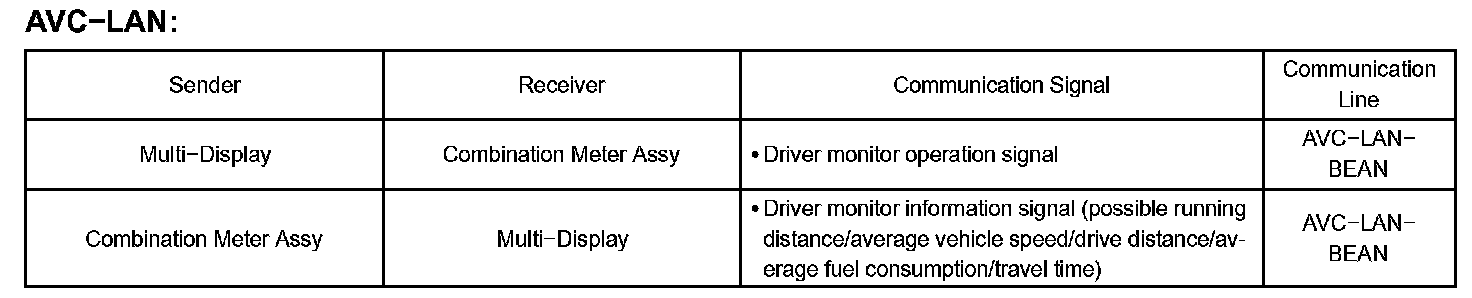

HINT: CAN signals and AVC LAN signals are transmitted to or received from the combination meter assembly through the gateway ECU.




MULTI-INFORMATION DISPLAY

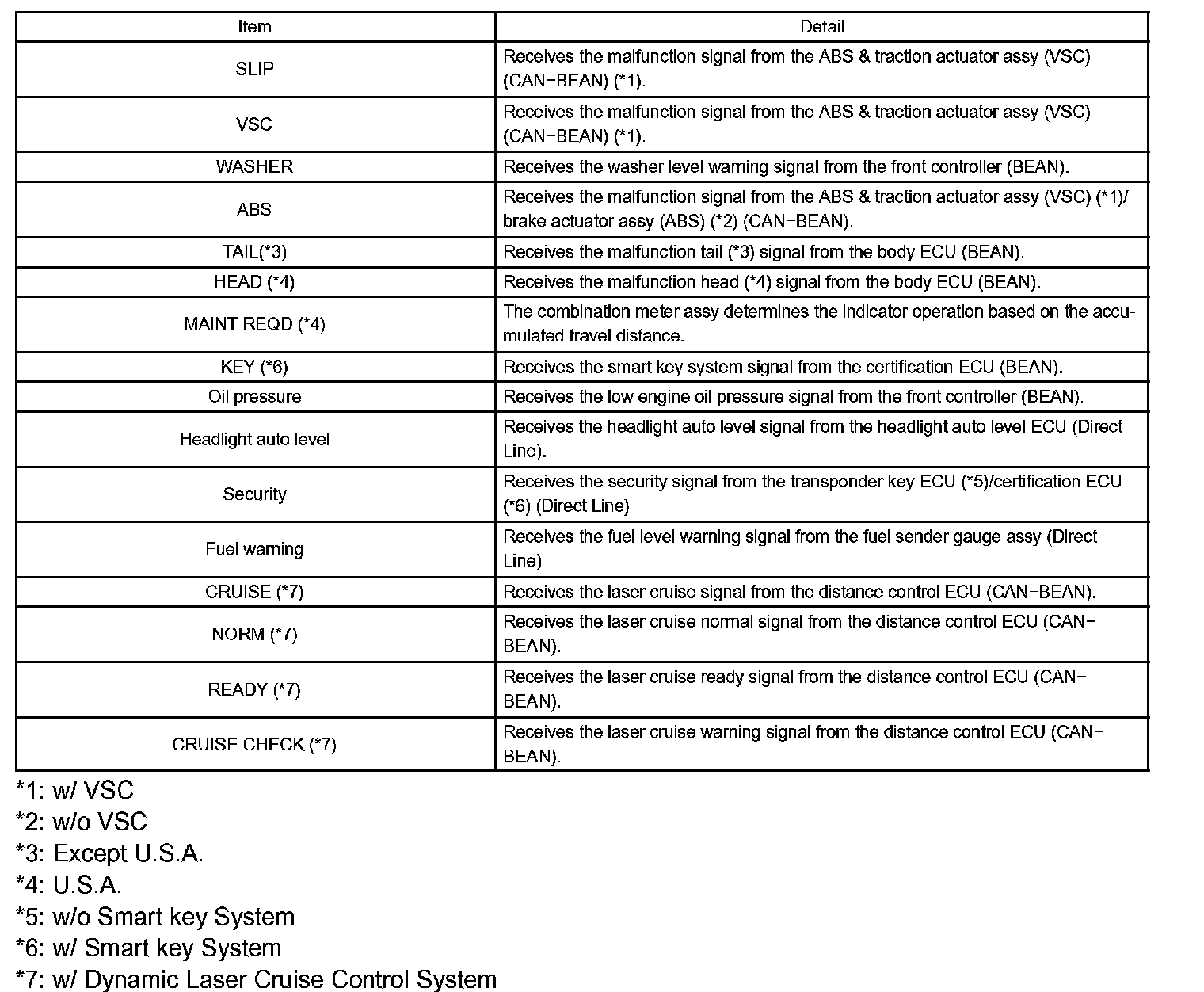

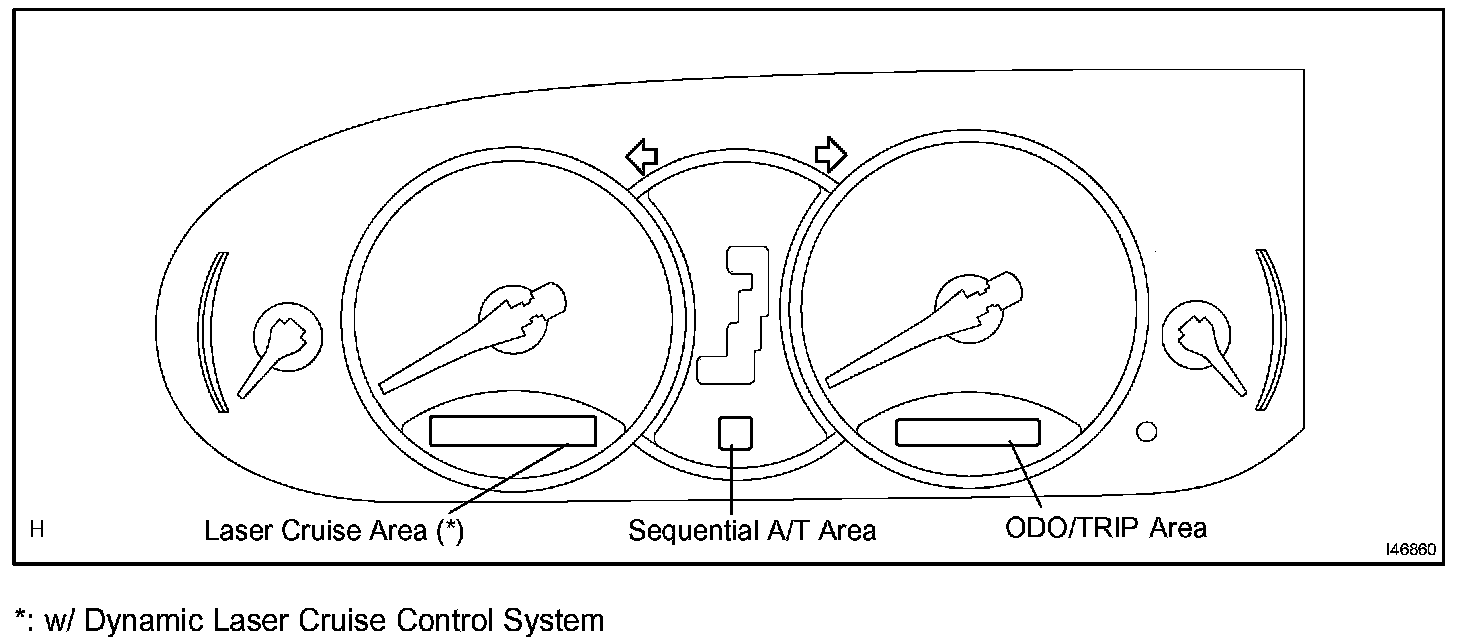

- The multi-information display consists of two display areas (Laser cruise area and ODO/TRIP area). These areas display the contents given in the table.
- A steering pad switch (for multi-information display) that switches the contents of the multi-information display has been provided on the steering wheel.




2. ACCESSORY METER ASSEMBLY

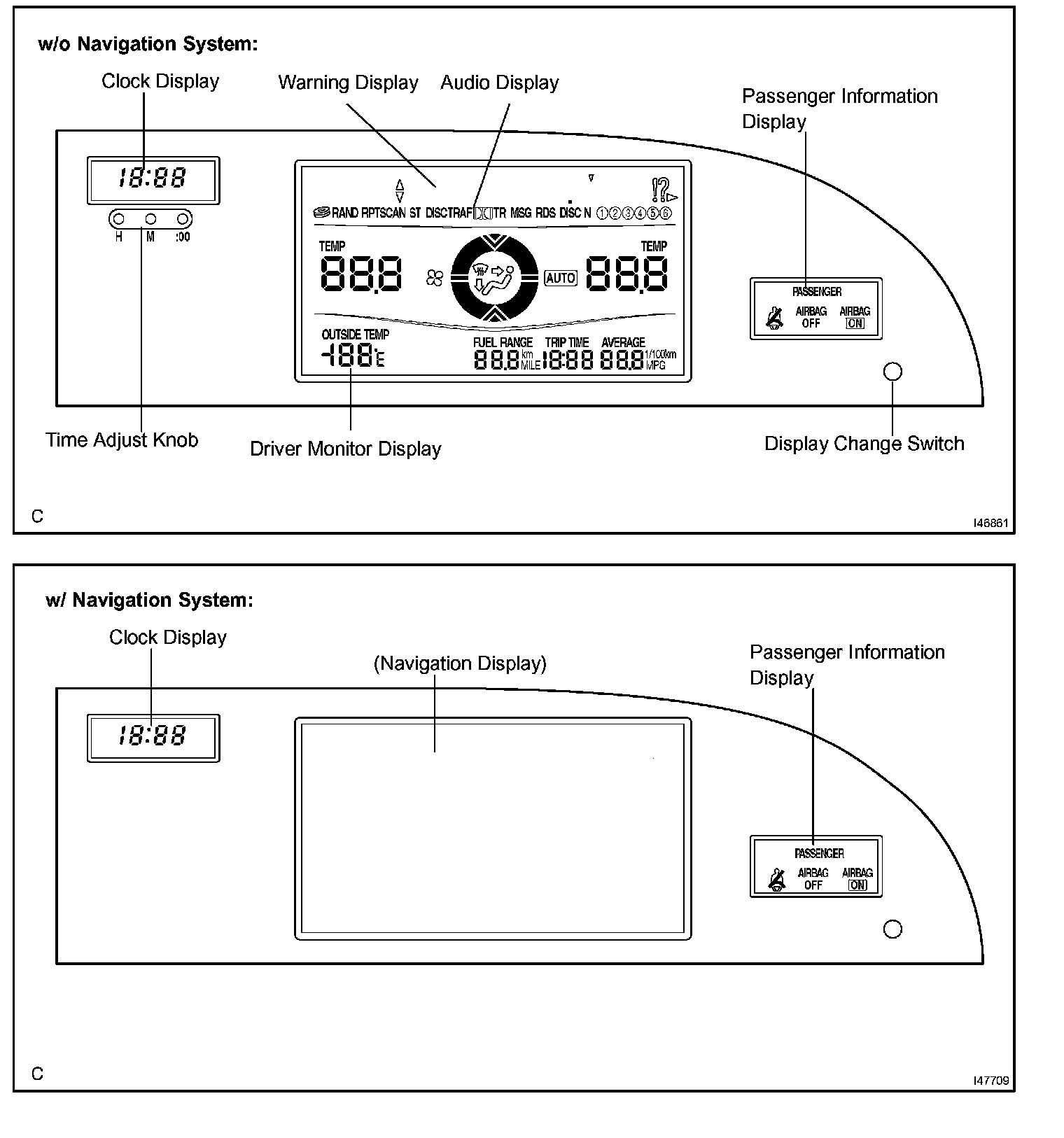

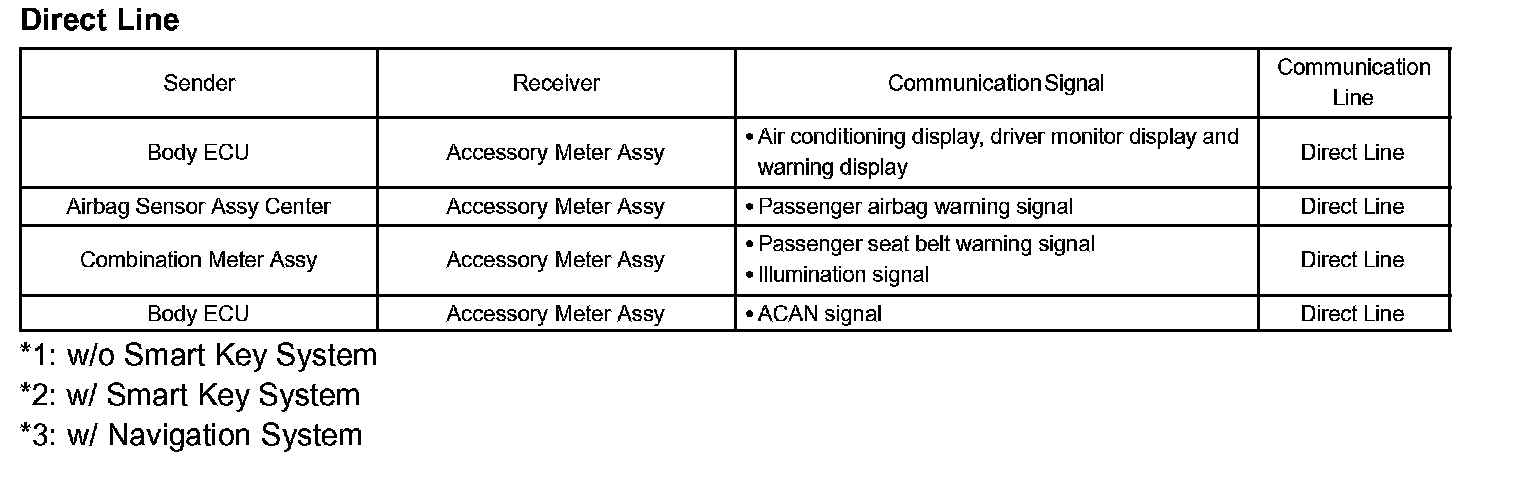

- The accessory meter assembly consists of six displays (clock display, warning display, audio display, A/C display, driver information display, and passenger information display). These areas display the contents given in the table.
