Combination Meter Assembly

COMBINATION METER ASSEMBLY

OVERHAUL

HINT: Installation is in the reverse order of removal.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2




4. REMOVE INSTRUMENT PANEL FINISH PLATE (W/O SMART KEY SYSTEM)
a. Remove the instrument panel finish plate.




5. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY

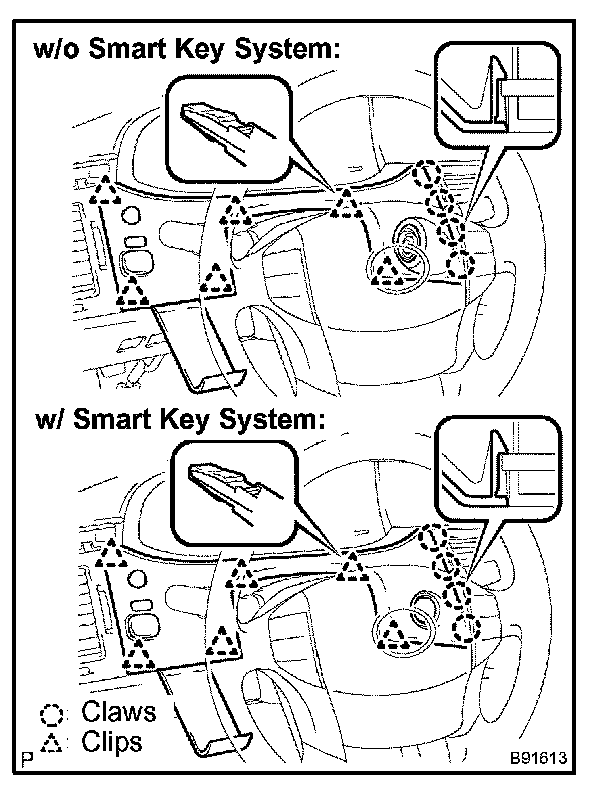

a. Using a moulding remover, disengage the 4 claws and 6 clips then remove the instrument panel sub-assembly.

6. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER




7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
a. Remove the 4 screws.

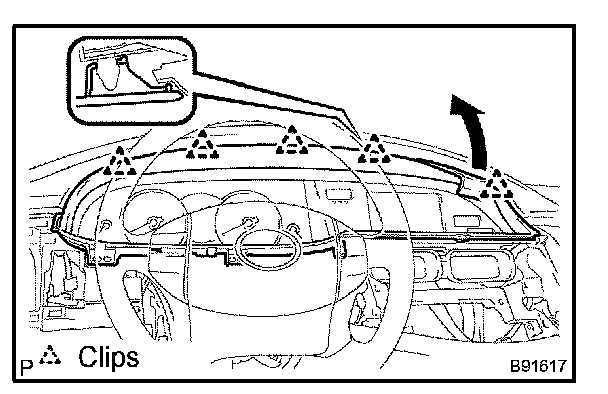

b. Using a moulding remover, disengage the 5 clips and remove the instrument cluster finish panel sub-assembly.




8. REMOVE COMBINATION METER ASSEMBLY

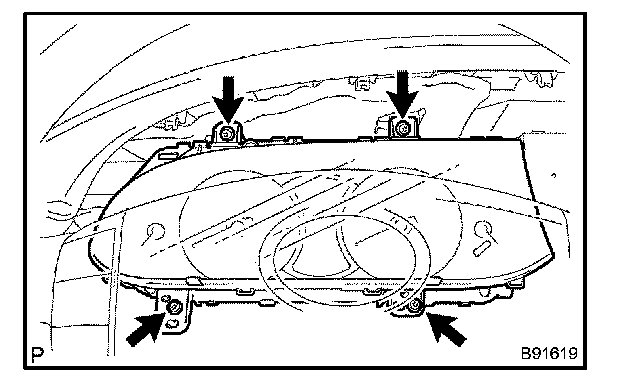

a. Remove the 4 screws.
b. Pull out the combination meter assembly, then disconnect the connectors.




9. REMOVE COMBINATION METER GLASS

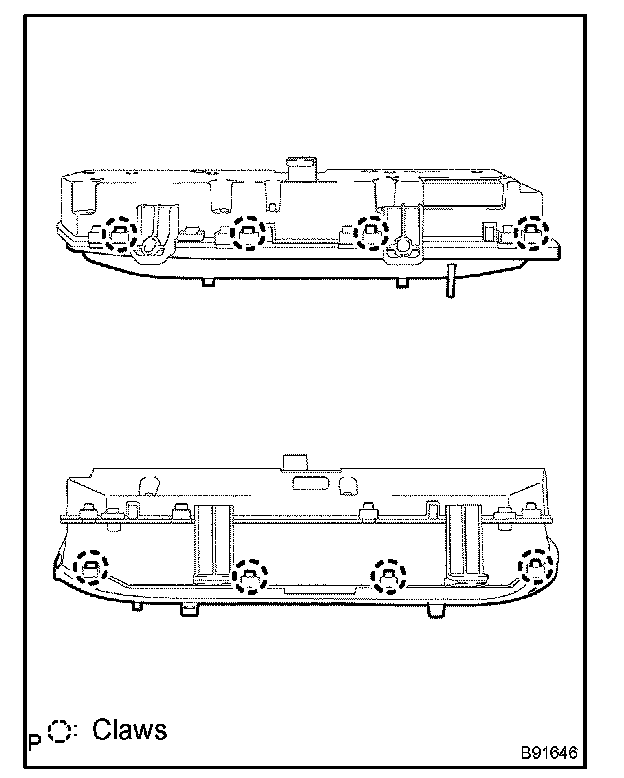

a. Disengage the 8 claws and remove the combination meter glass.

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. PERFORM INITIALIZATION
Some systems need initialization when disconnecting the cable from the negative battery terminal.
