Malfunction In Clock Display

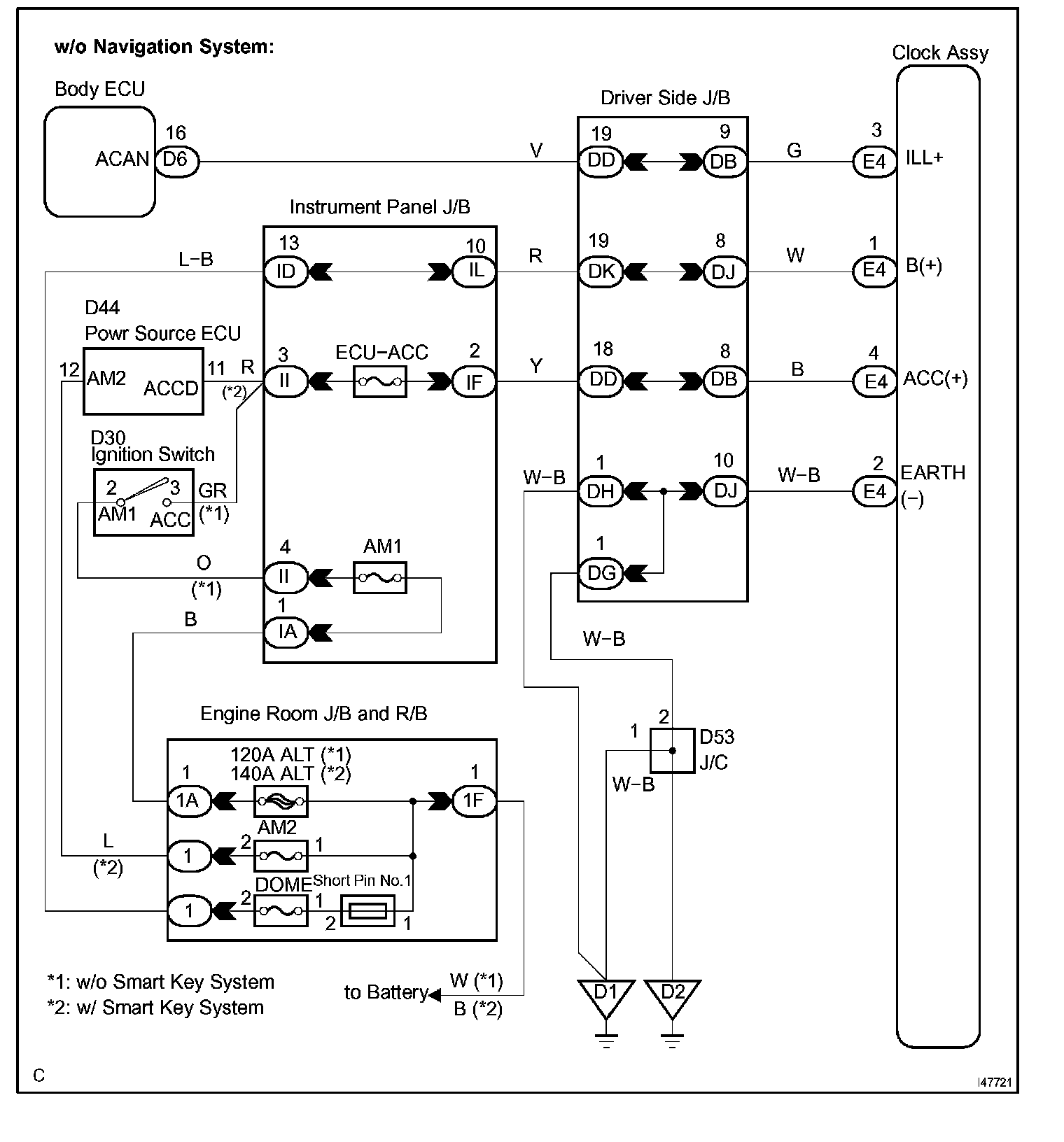

MALFUNCTION IN CLOCK DISPLAYWiring Diagram (Part 1):
Wiring Diagram (Part 2):

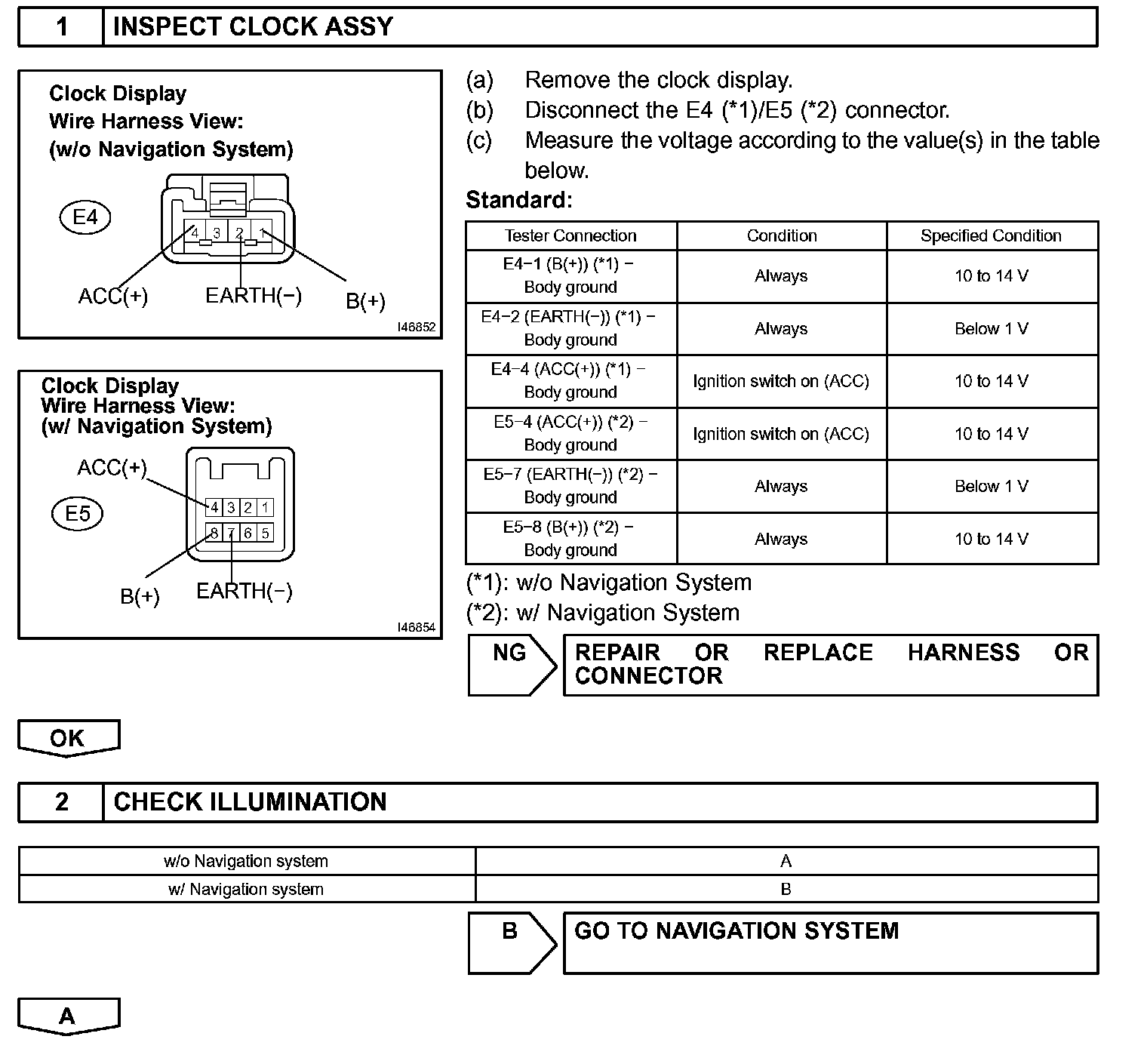

Step 1-2:
Step 3-4:
INSPECTION PROCEDURE
HINT:
- The whole accessory meter assembly should be replaced if the passenger seat belt warning light has a malfunction because this part is not independently supplied.
- If any DTC for the clock communication system is output, there may be a malfunction in communication between the clock assembly and multi-display.
- The combination meter assembly controls illumination through the ILL+ terminal.
- If deviation in the clock exceeds the specification, replace the accessory meter assembly.
Standard:
w/o Navigation system: ±1 second/day
w/ Navigation system: -2 to 6 seconds/day
