OPERATING LIGHT CONTROL RHEOSTAT DOES NOT CHANGE LIGHT BRIGHTNESS
Wiring Diagram:

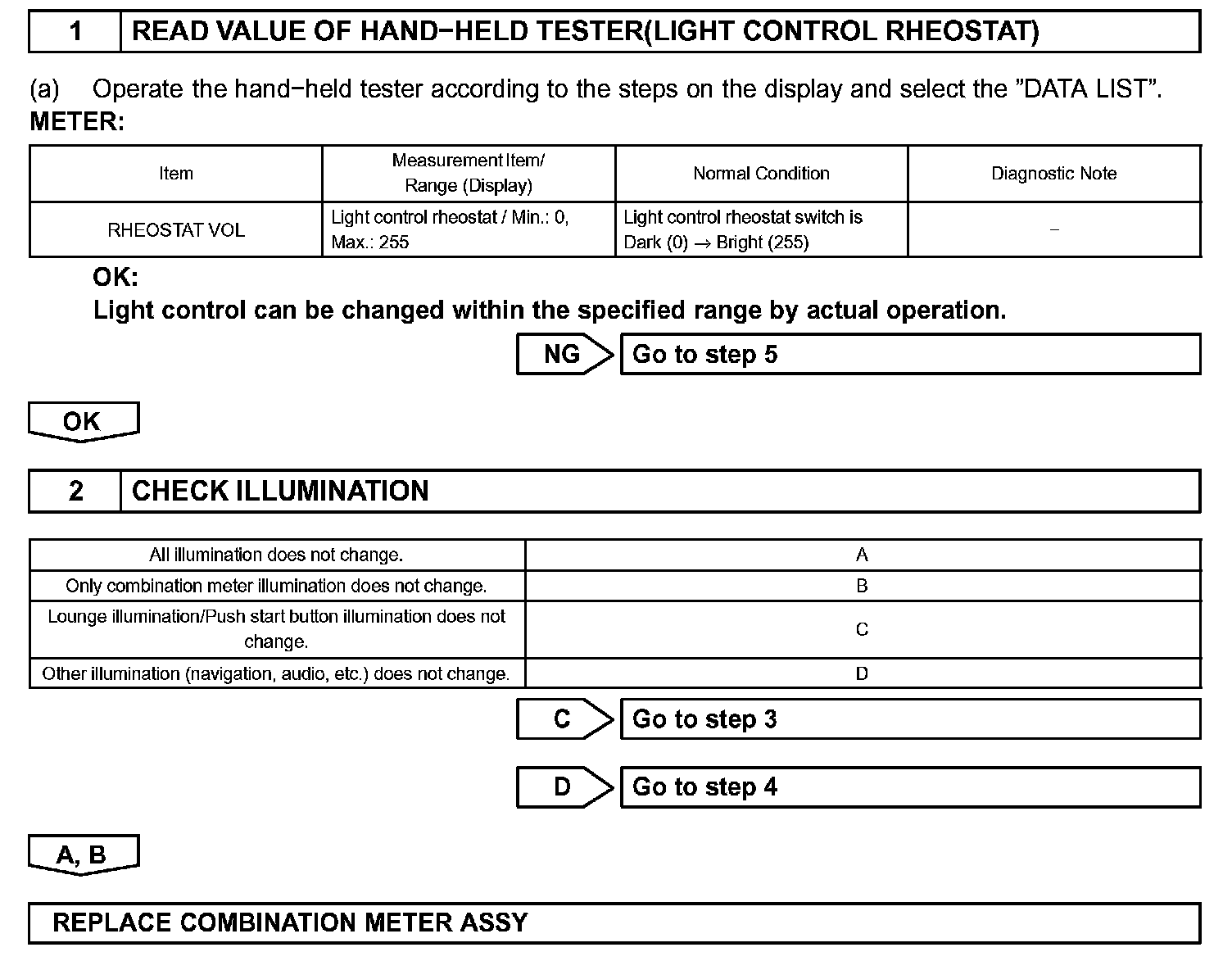

Step 1-2:
Step 3-5:

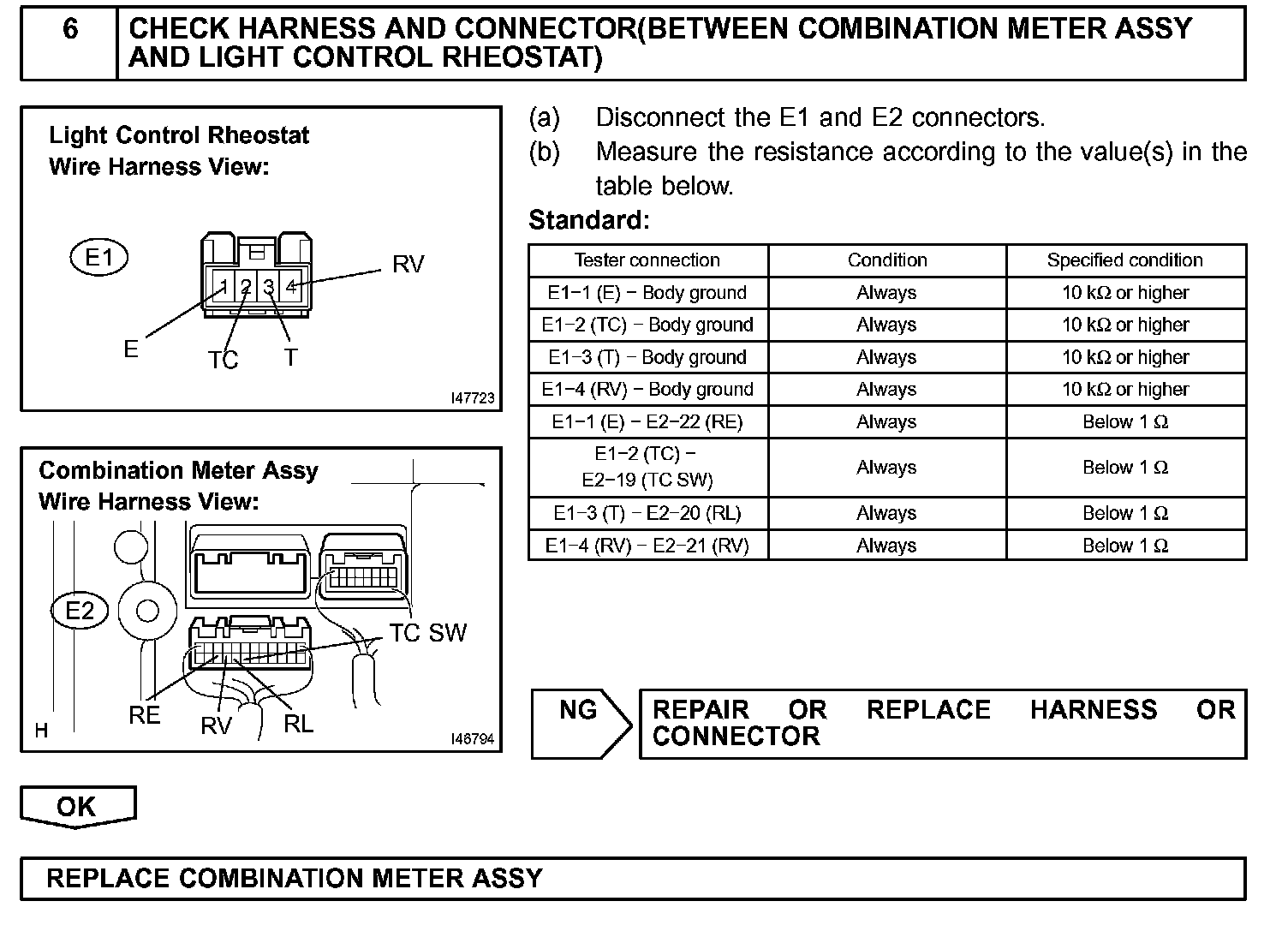

Step 6:
INSPECTION PROCEDURE
