Seat Belt Warning Light For Passenger Side Does Not Operate

SEAT BELT WARNING LIGHT FOR PASSENGER SIDE DOES NOT OPERATE

Wiring Diagram:

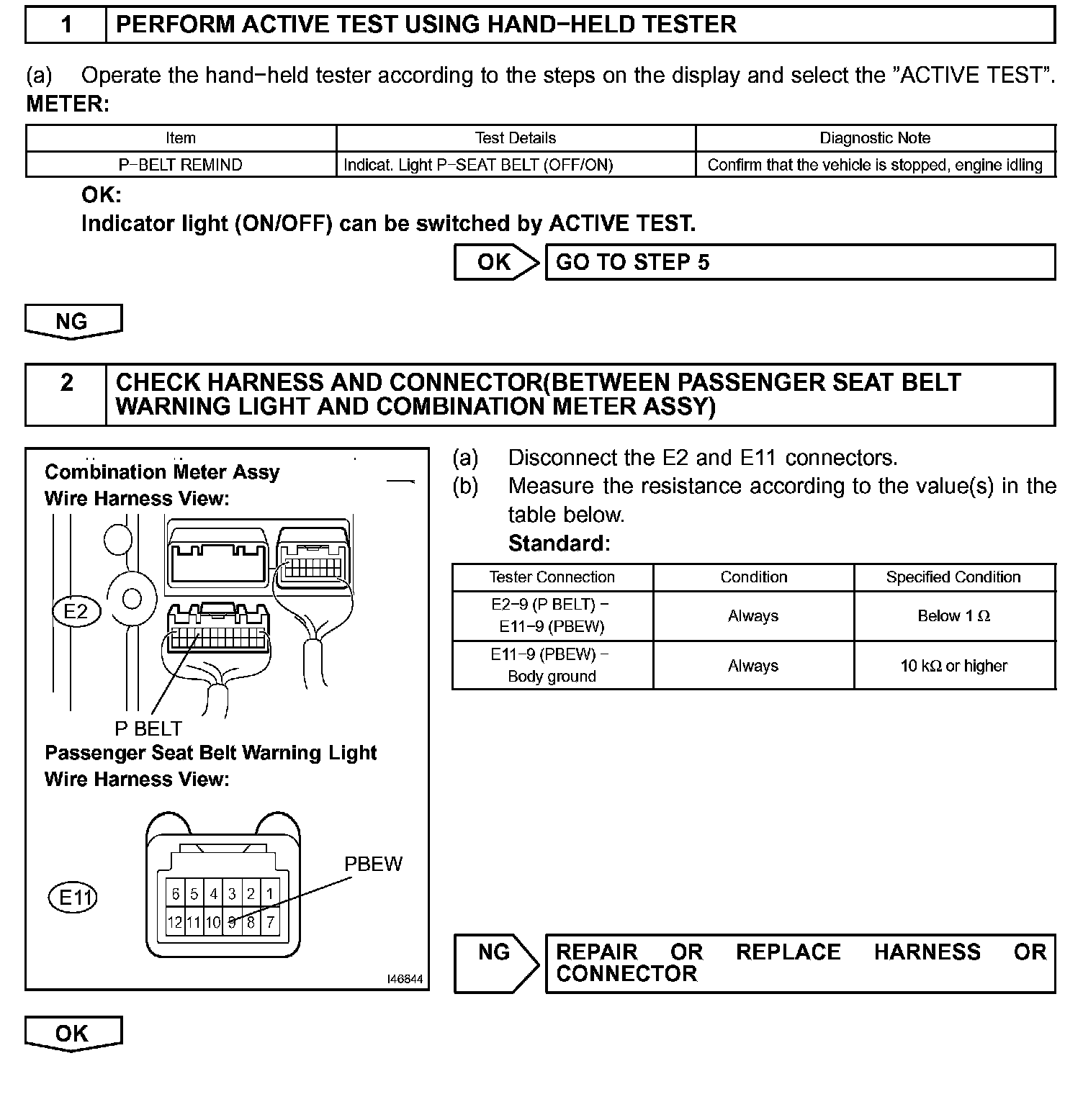

Step 1-2:

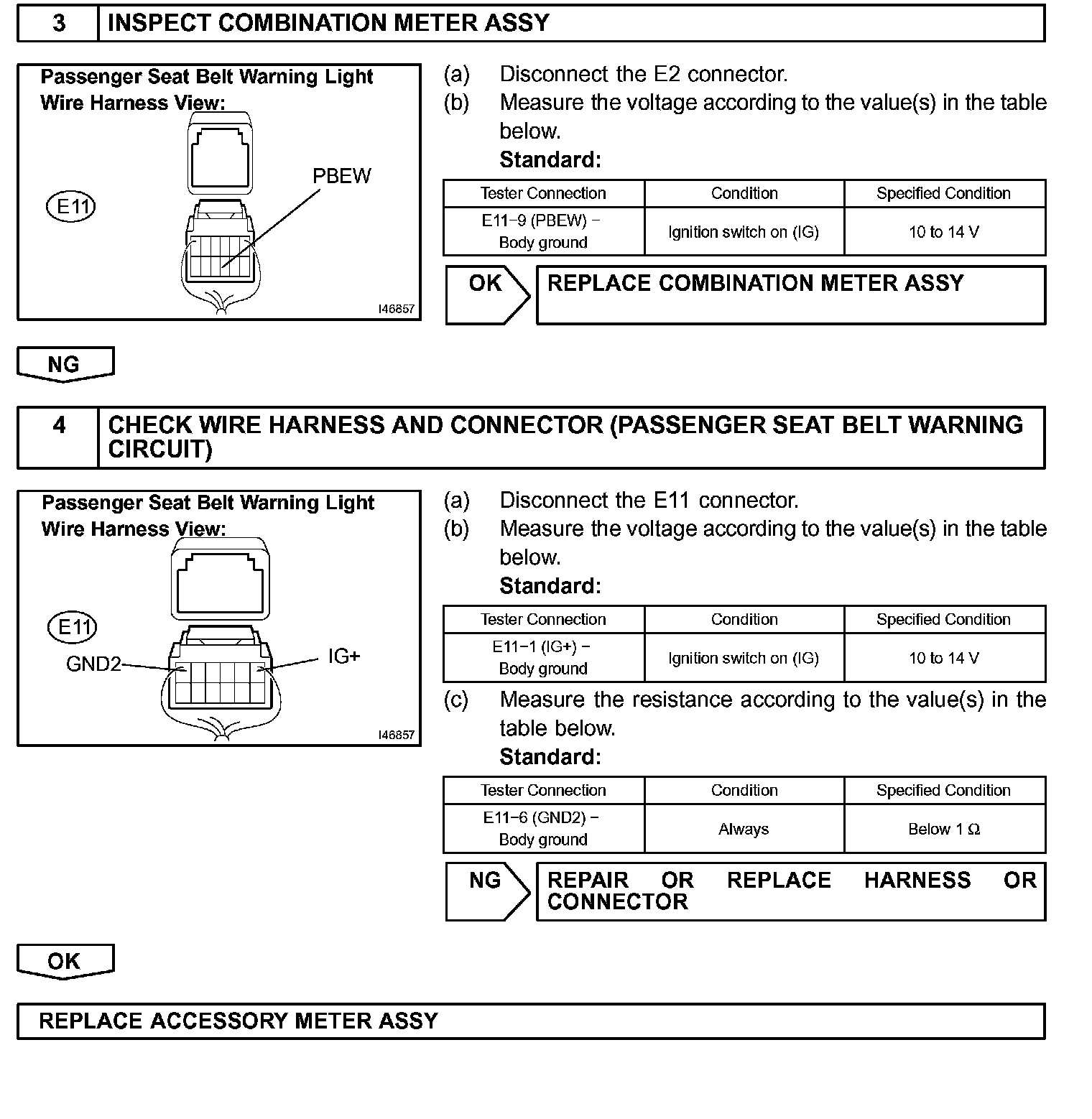

Step 3-4:

Step 5-6:

Step 7:

INSPECTION PROCEDURE

HINT:
- Displays except for the seat belt warning indicator are shown in the navigation system, supplemental restraint system, and A/C system.
- The passenger seat belt warning light can be inspected with it removed from the vehicle.
The accessory meter assembly should be replaced if the passenger seat belt warning light has a malfunction because this part is not independently supplied.
