Symptom Index

PROBLEM SYMPTOMS TABLE

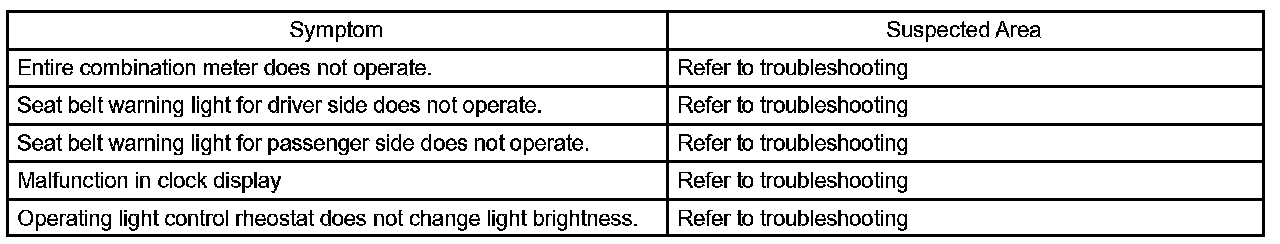

Problem Symptoms Table - Malfunction System:

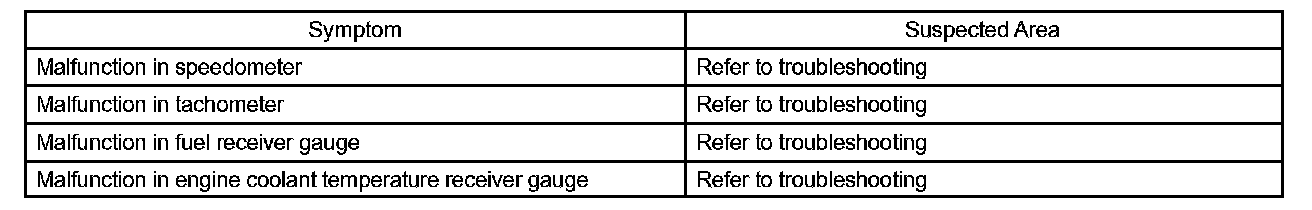

Problem Symptoms Table - Meter Gauges:

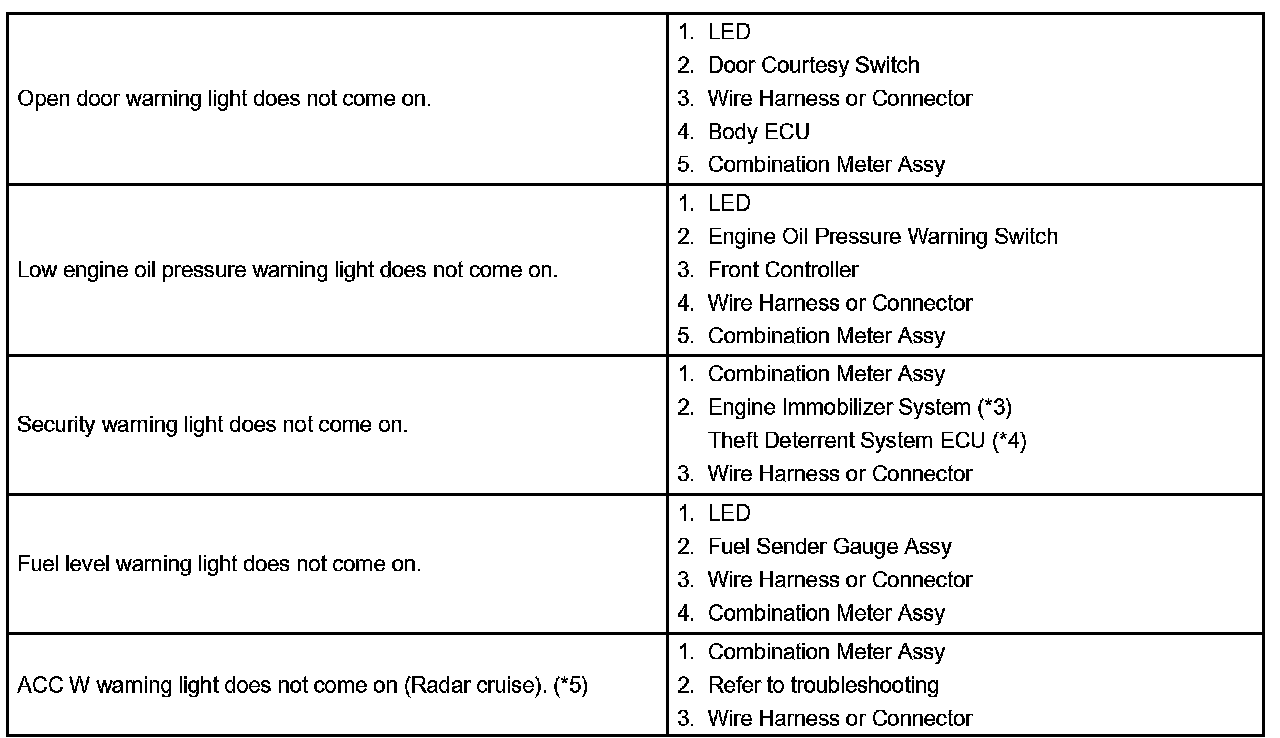

Problem Symptoms Table - Warning Lights Part 1:

Problem Symptoms Table - Warning Lights Part 2:

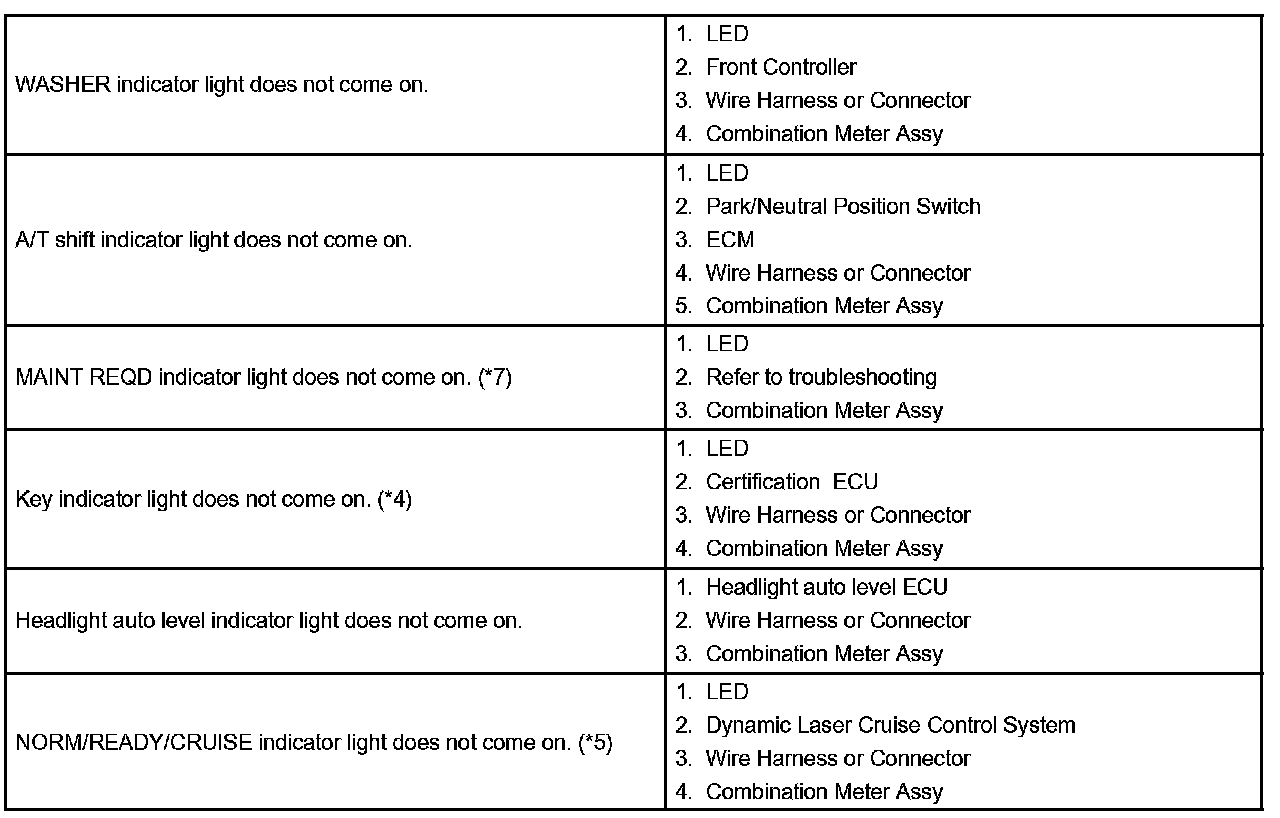

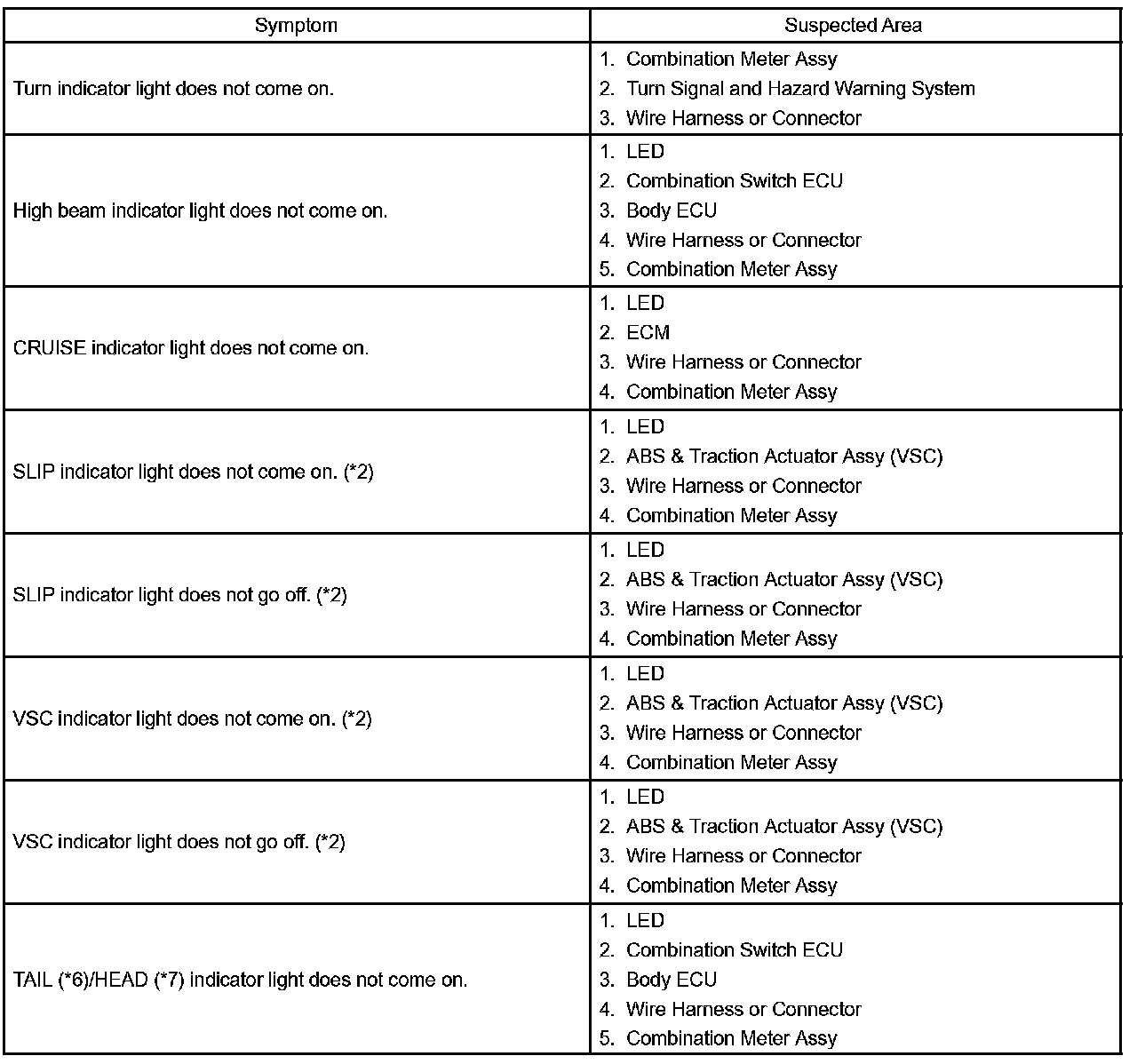

Problem Symptoms Table - Indicator Lights Part 1:

Problem Symptoms Table - Indicator Lights Part 2:

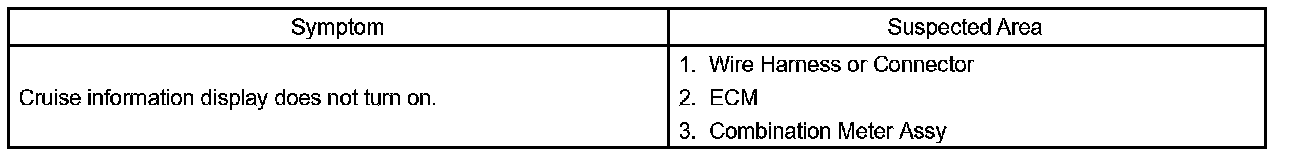

Problem Symptoms Table - Cruise Information Area:

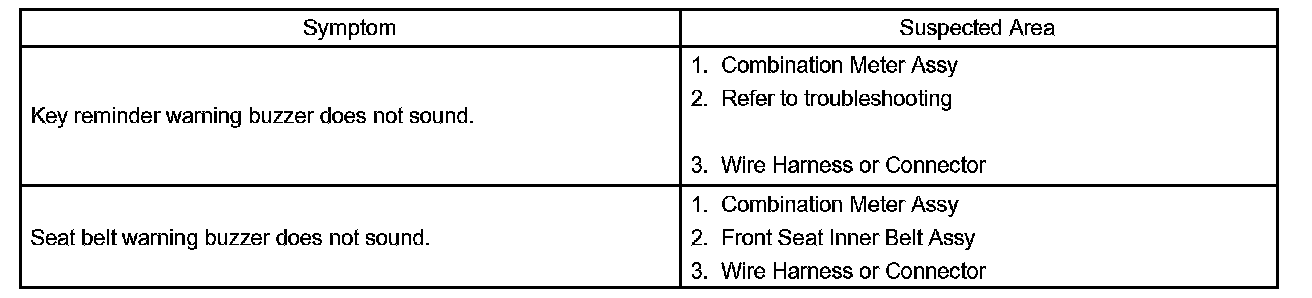

Problem Symptoms Table - Buzzer:

Problem Symptoms Table - Accessory Meter Assy:

HINT: Inspect the related "Fuse" and "Relay" before confirming the suspected area as shown in the charts.

HINT: Refer to on vehicle inspection in the combination meter.
