Fog/Driving Lamp: Service and Repair
FOG LIGHT ASSEMBLY LHOVERHAUL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.
1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY
2. REMOVE FRONT BUMPER ASSEMBLY
3. REMOVE FOG LIGHT ASSEMBLY LH

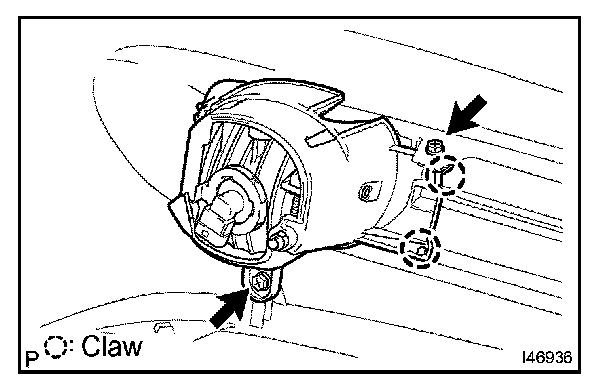

a. Remove the 2 screws.
b. Disengage the 2 claws and remove the fog light assembly LH.
4. REMOVE FOG LIGHT BRACKET LH
a. Disengage the 4 claws and fog light bracket LH.
5. REMOVE FOG LIGHT BULB
a. Turn the fog light bulb in the direction indicated by the arrow and remove it.
6. INSTALL FRONT BUMPER ASSEMBLY
7. INSTALL RADIATOR GRILLE SUB-ASSEMBLY
8. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT
9. PREPARATION FOR FOG LIGHT AIMING
10. FOG LIGHT AIMING INSPECTION
11. FOG LIGHT AIMING ADJUSTMENT
