High Pitched Horn Assy

Horn:

HIGH PITCHED HORN ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

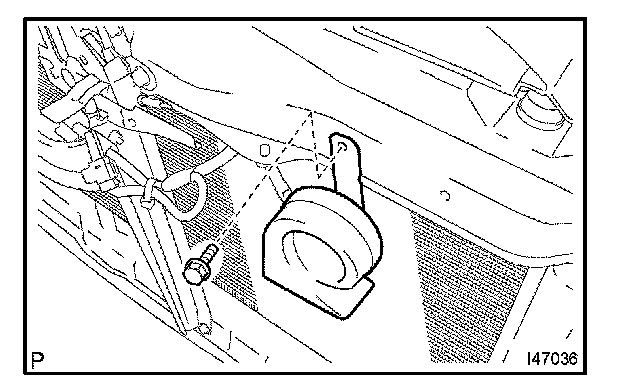

2. REMOVE HIGH PITCHED HORN ASSEMBLY
a. Disconnect the connector.
b. Remove the bolt and remove the high pitched horn assembly.

3. INSTALL HIGH PITCHED HORN ASSEMBLY
a. Install the high pitched horn assembly with the bolt.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

b. Connect the connector.

4. INSTALL RADIATOR GRILLE SUB-ASSEMBLY
