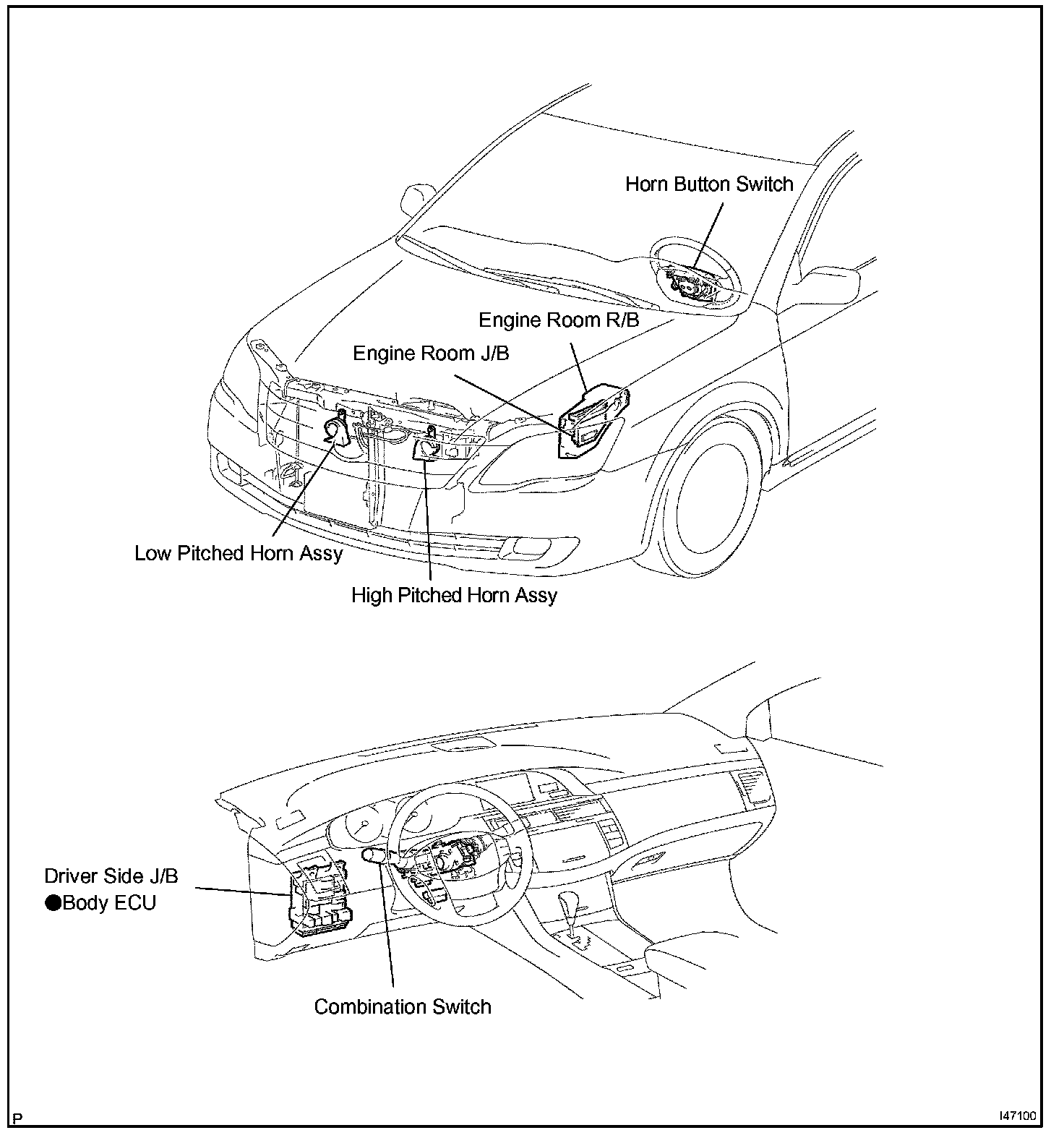

Low Pitched Horn Assy

Horn:

LOW PITCHED HORN ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY




2. REMOVE LOW PITCHED HORN ASSEMBLY
a. Disconnect the connector.

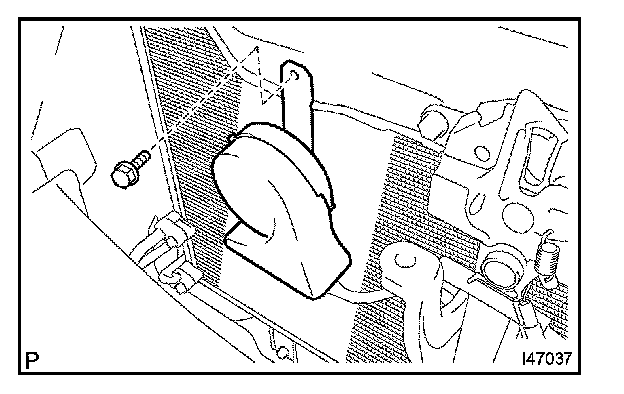

b. Remove the bolt and remove the low pitched horn assembly.

3. INSTALL LOW PITCHED HORN ASSEMBLY
a. Install the low pitched horn assembly with the bolt.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

b. Connect the connector.

4. INSTALL RADIATOR GRILLE SUB-ASSEMBLY
