Component Tests and General Diagnostics

INSPECTION

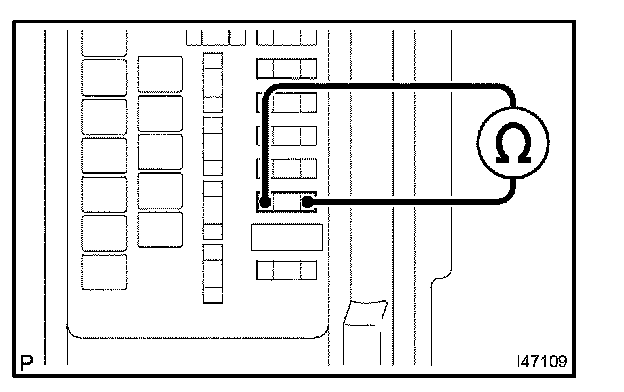

1. INSPECT FUSE(HORN)
a. Check the resistance of the HORN fuse.

Standard: Below 1Ohms

If the result is not as specified, replace the fuse.

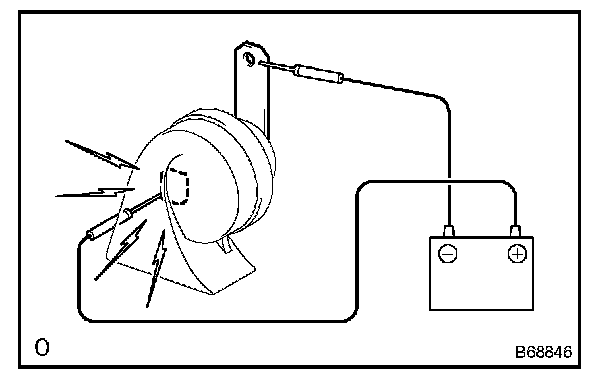

2. INSPECT LOW PITCHED HORN ASSEMBLY

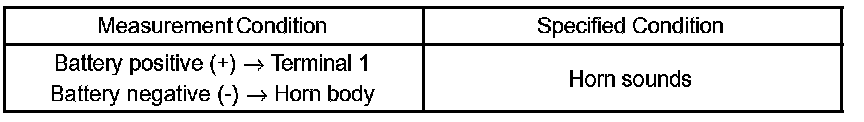

a. Check operation of the horn.
If the result is not as specified, replace the horn assembly.

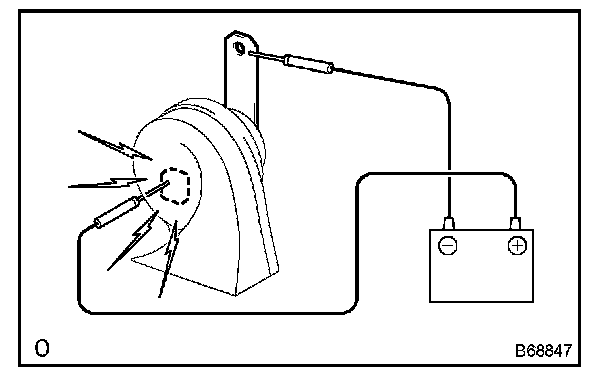

3. INSPECT HIGH PITCHED HORN ASSEMBLY
a. Check operation of the horn.
If the result is not as specified, replace the horn assembly.
