Rear Combination Light Assy LH

REAR COMBINATION LIGHT ASSEMBLY LH

OVERHAUL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE REAR FLOOR FINISH PLATE
2. REMOVE REAR BUMPER ASSEMBLY




3. REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
a. Disconnect the connector.

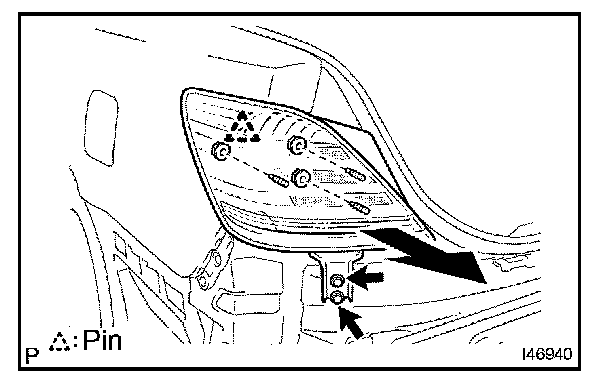

b. Remove the 3 nuts and the 2 bolts.
c. Remove the pin and the rear combination light assembly LH.




4. REMOVE REAR COMBINATION LIGHT BRACKET LH

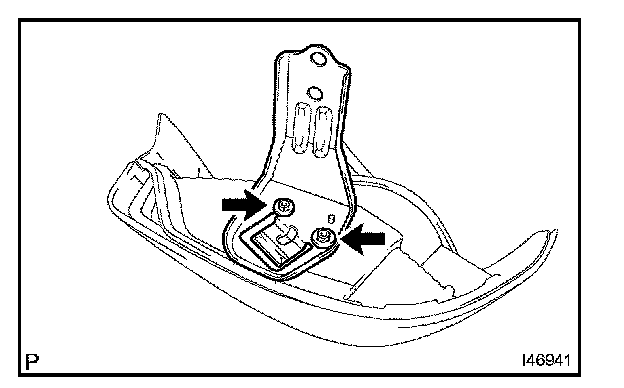

a. Remove the 2 nuts and the rear combination light bracket LH.




5. REMOVE REAR COMBINATION LIGHT SOCKET & WIRE

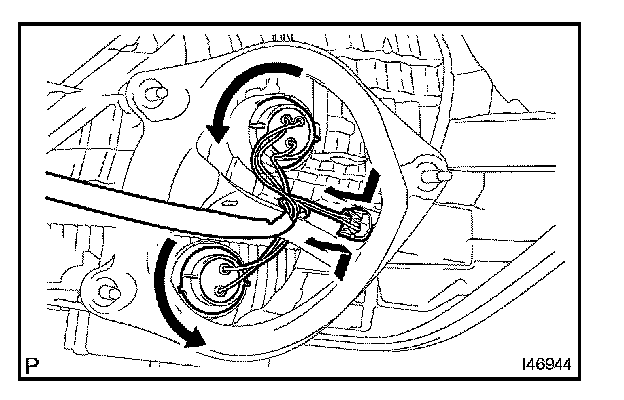

a. Remove the rear combination light socket & wire as shown in the illustration.

6. REMOVE REAR COMBINATION LIGHT BULB
7. REMOVE REAR COMBINATION LIGHT BODY GASKET LH
8. INSTALL REAR BUMPER ASSEMBLY
