Rear Light Assy LH

REAR LIGHT ASSEMBLY LH

OVERHAUL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.




1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

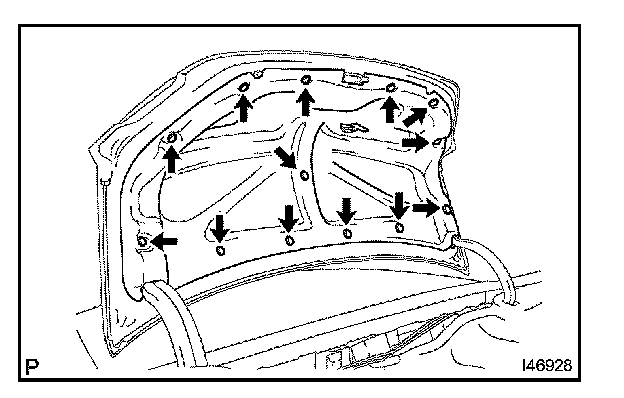

a. Remove the 13 clips and the luggage compartment door cover.




2. REMOVE REAR LIGHT ASSEMBLY LH
a. Disconnect the connector.

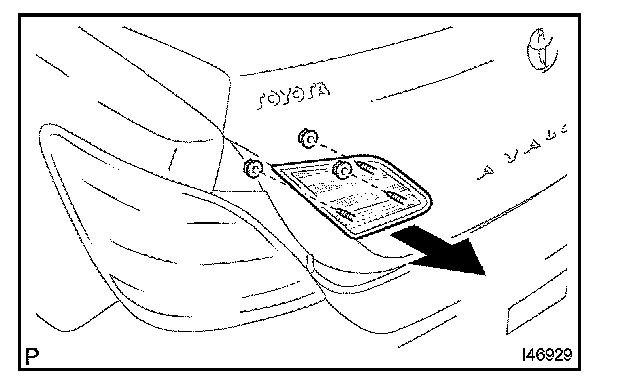

b. Remove the 3 nuts and the rear light assembly LH.




3. LUGGAGE ELECTRICAL KEY SWITCH (RH POSITION)
a. Remove the screw and the luggage electrical key switch.




4. REMOVE REAR LIGHT SOCKET & WIRE

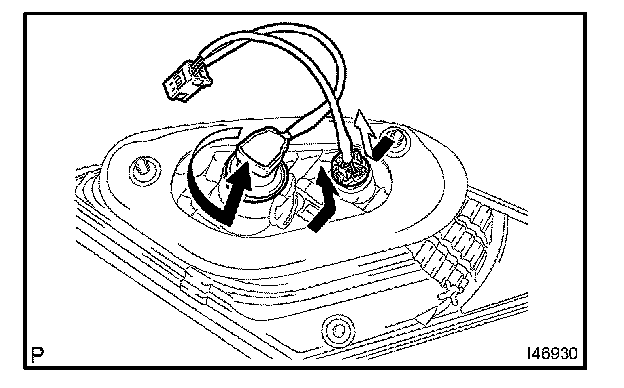

a. Remove the rear light socket & wire as shown in the illustration.

5. REMOVE REAR LIGHT BULB
6. REMOVE REAR LIGHT LH GASKET
