Door Courtesy Light and Courtesy Switch Circuit

DOOR COURTESY LIGHT AND COURTESY SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The body ECU detects the condition of the door courtesy switch assembly.

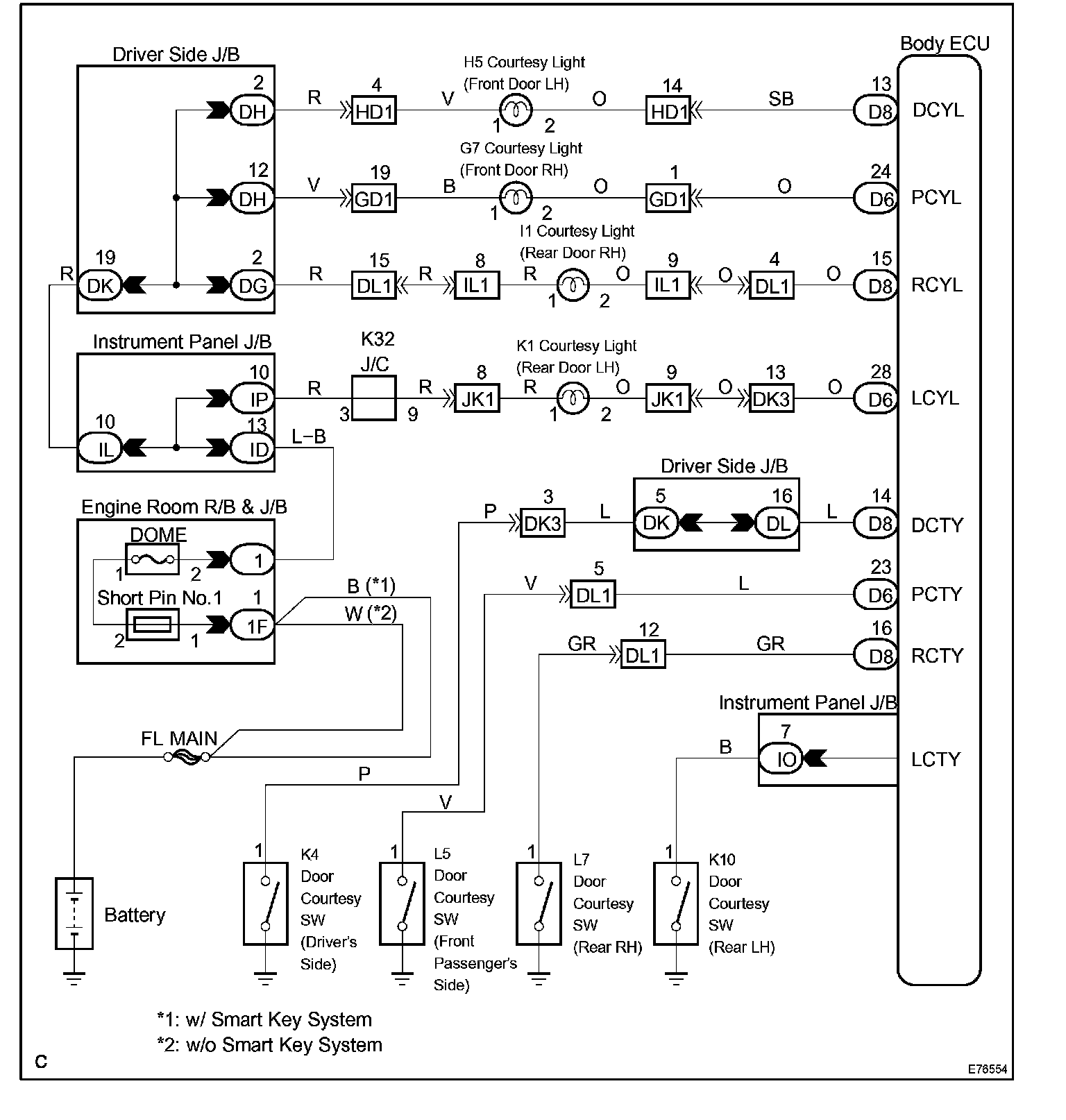

Wiring Diagram:

Step 1-2:

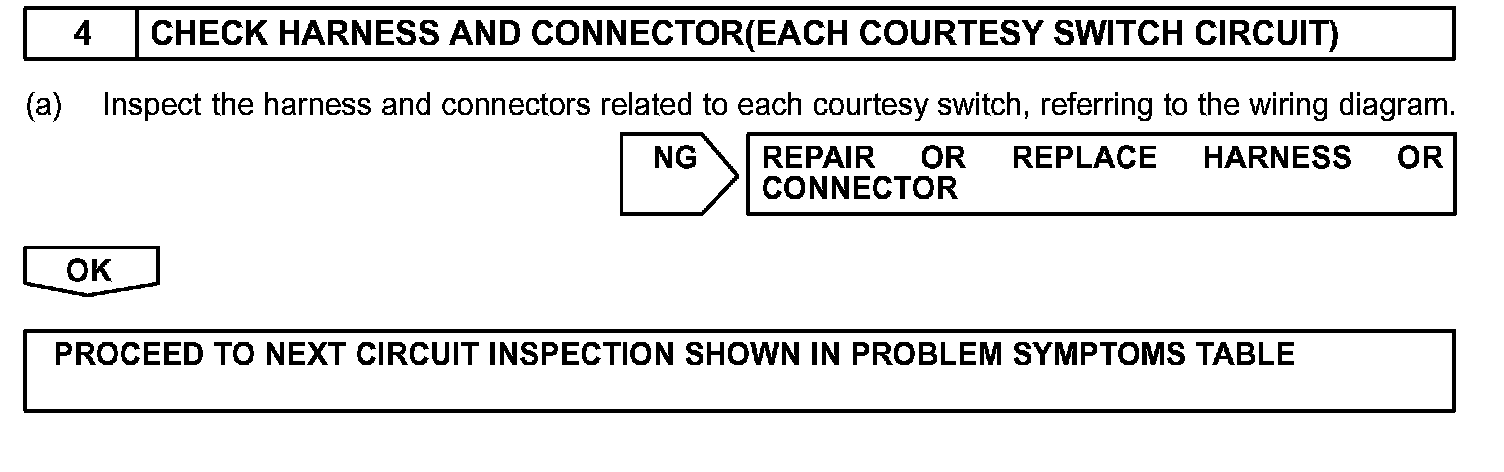

Step 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester, and from step 2 when not using the hand-held tester.
