Front Fog Light Circuit

FRONT FOG LIGHT CIRCUIT

CIRCUIT DESCRIPTION
The multiplex network body ECU controls the FOG relay when a signal is received from the headlight dimmer switch assembly.

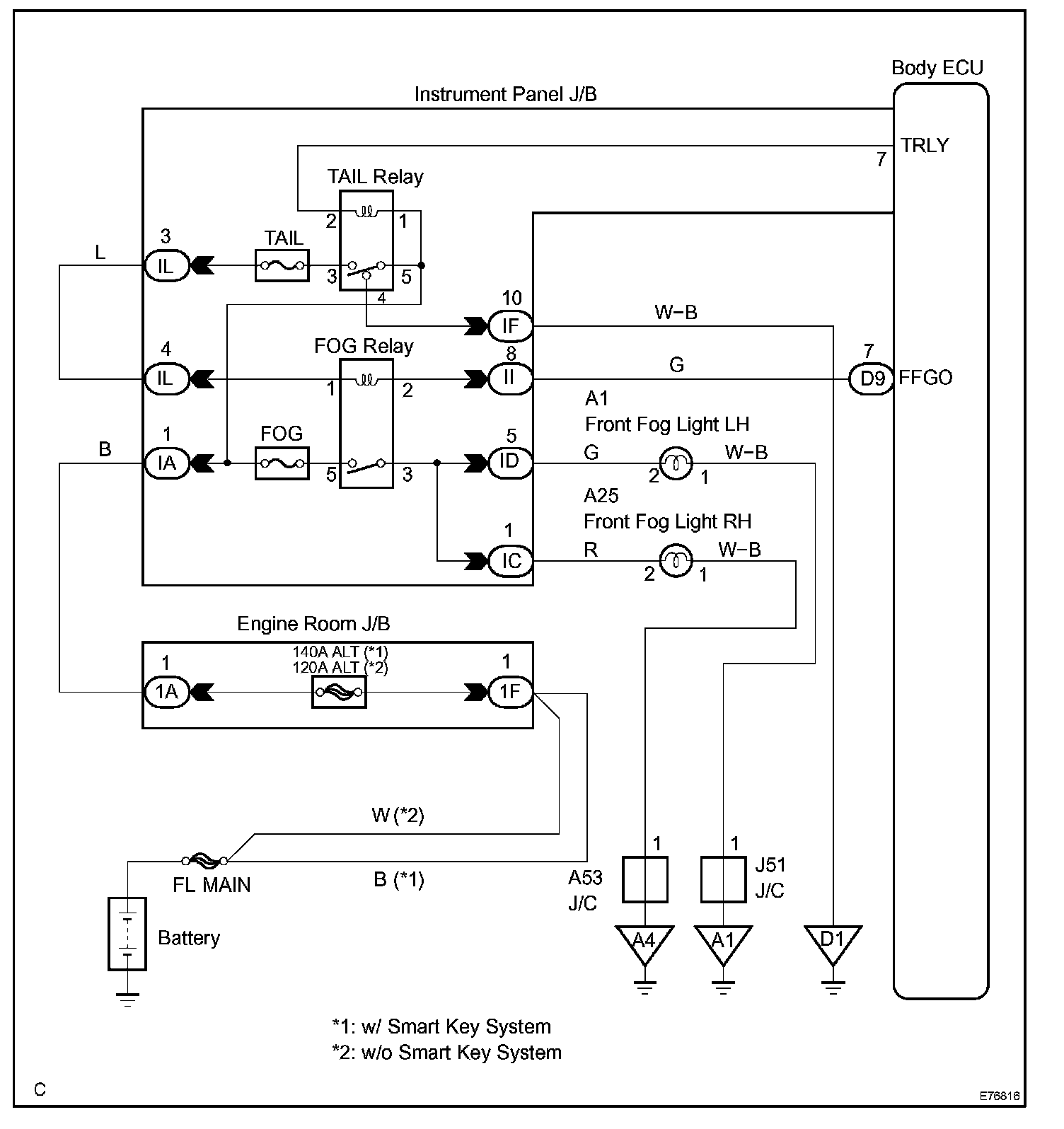

Wiring Diagram:

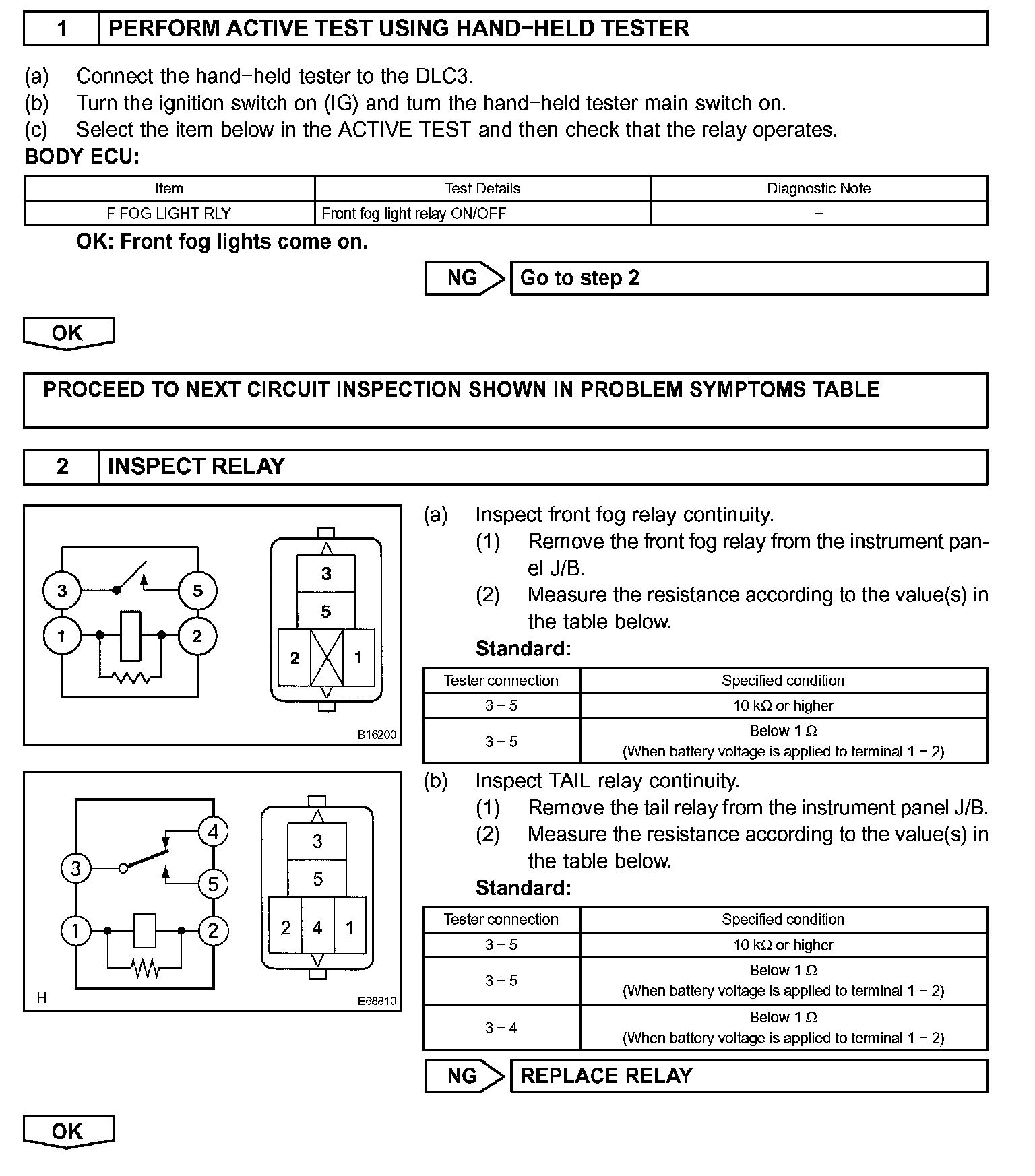

Step 1-2:

Step 3:

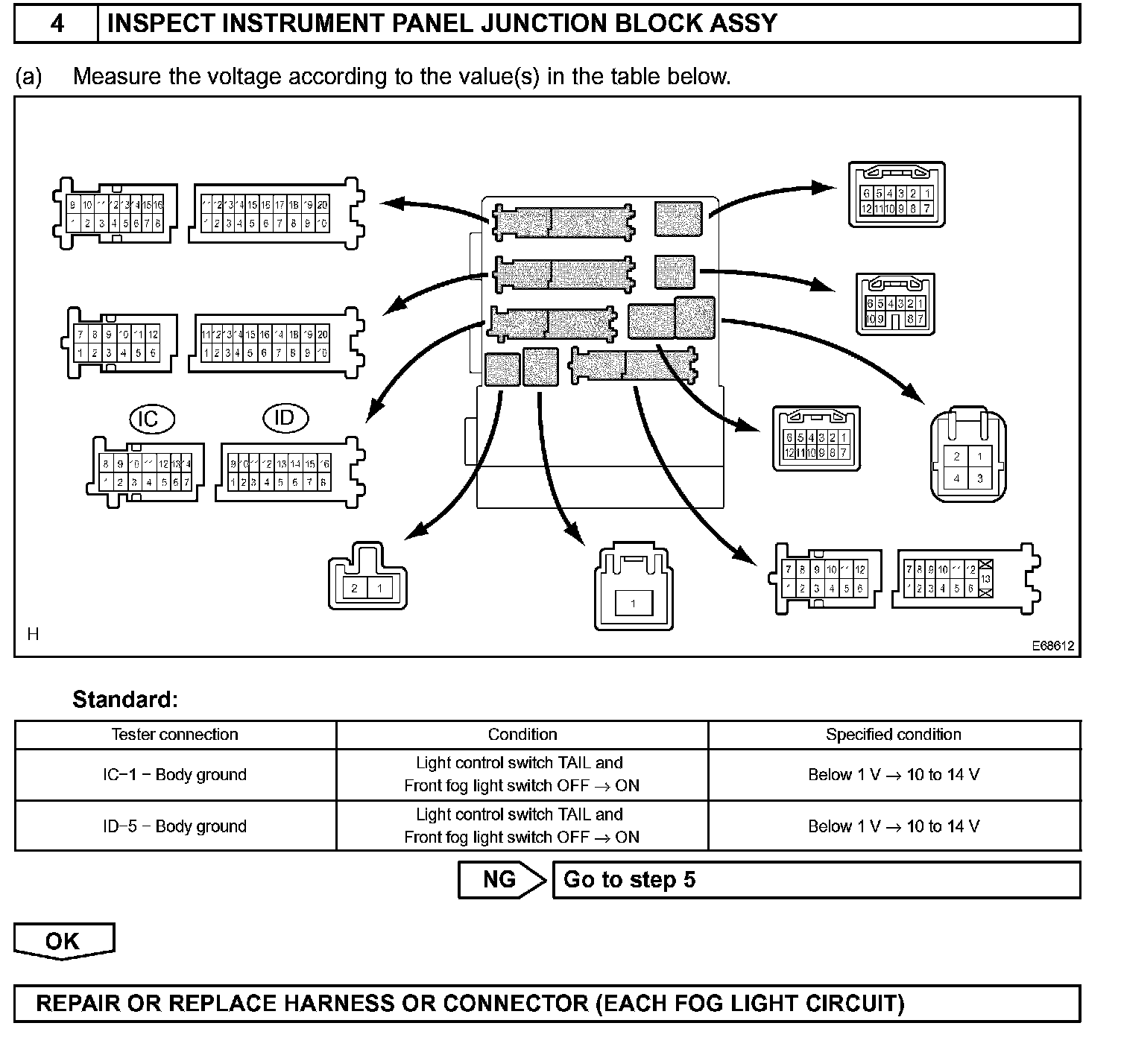

Step 4:

Step 5:

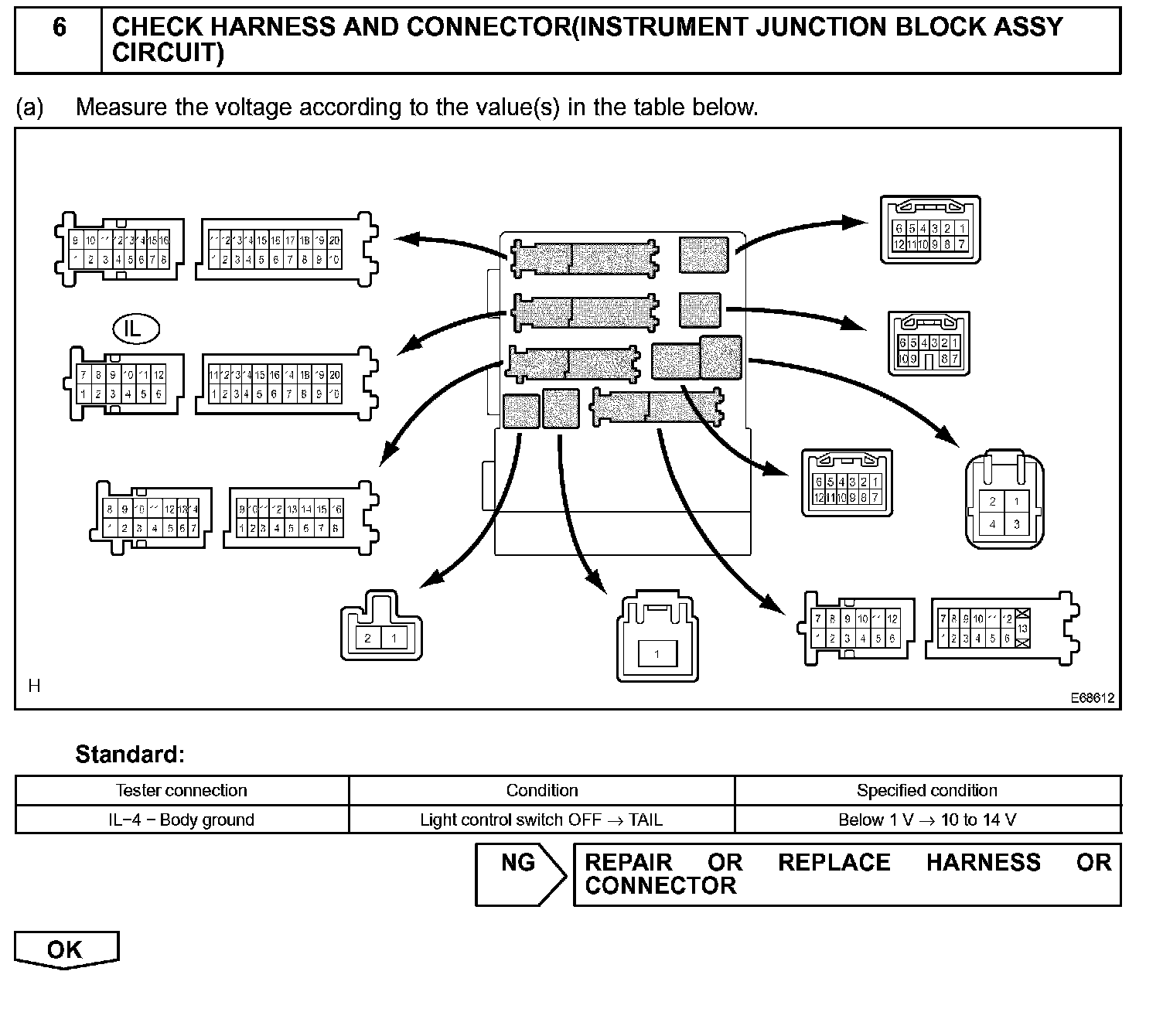

Step 6:

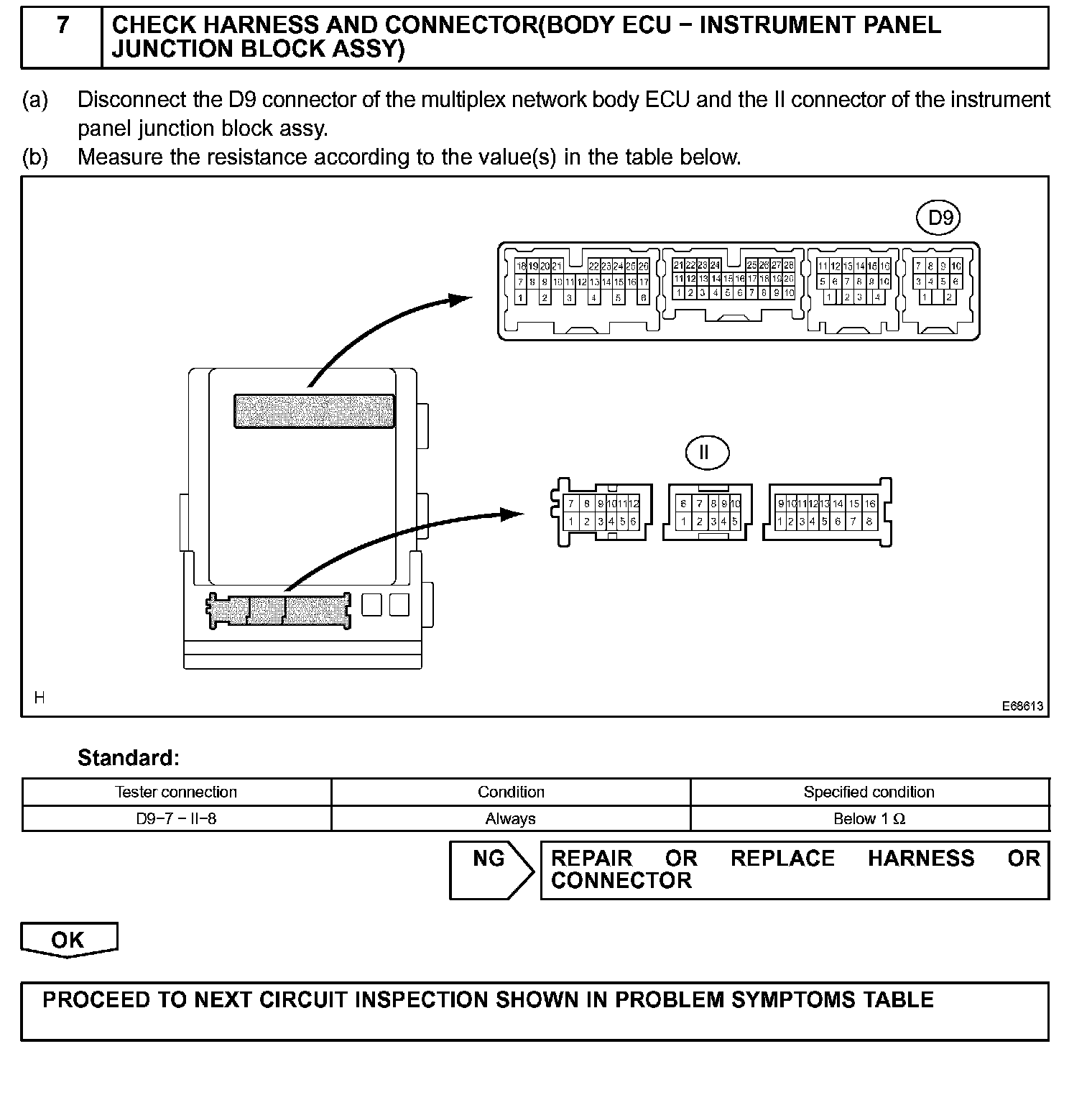

Step 7:

INSPECTION PROCEDURE
