Parking Brake Switch Circuit

PARKING BRAKE SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The body ECU receives the parking brake switch signal.

Wiring Diagram:






Step 1-2:

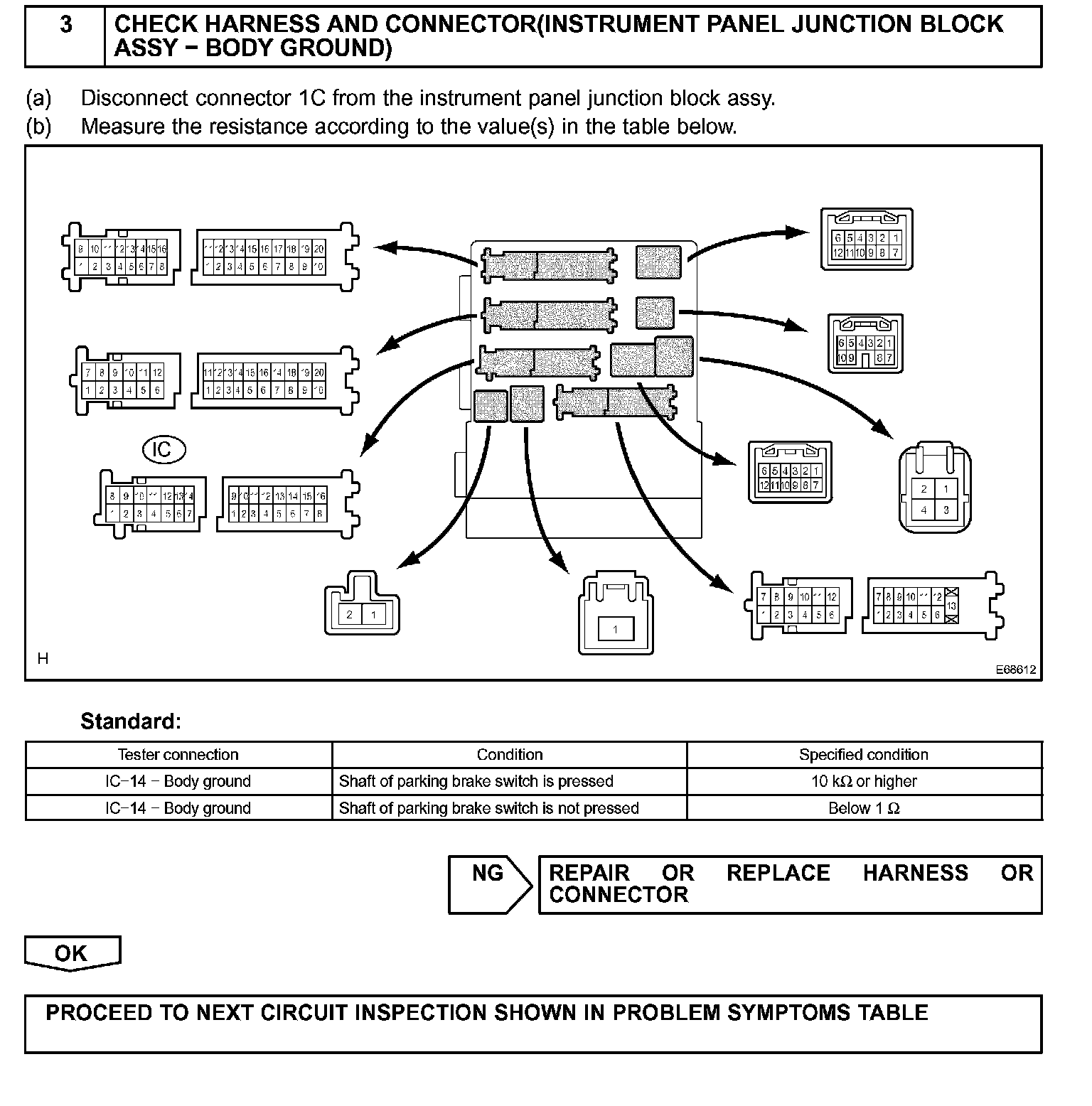

Step 3:




INSPECTION PROCEDURE
