Turn Signal Light Circuit

TURN SIGNAL LIGHT CIRCUIT

CIRCUIT DESCRIPTION
Receiving the signal of the turn signal switch from the combination switch ECU, the body ECU turns the turn signal light on.

The driver side junction block ECU activates the flasher relay while the theft deterrent system gives the warning and turns on the turn signal light and the hazard warning light.

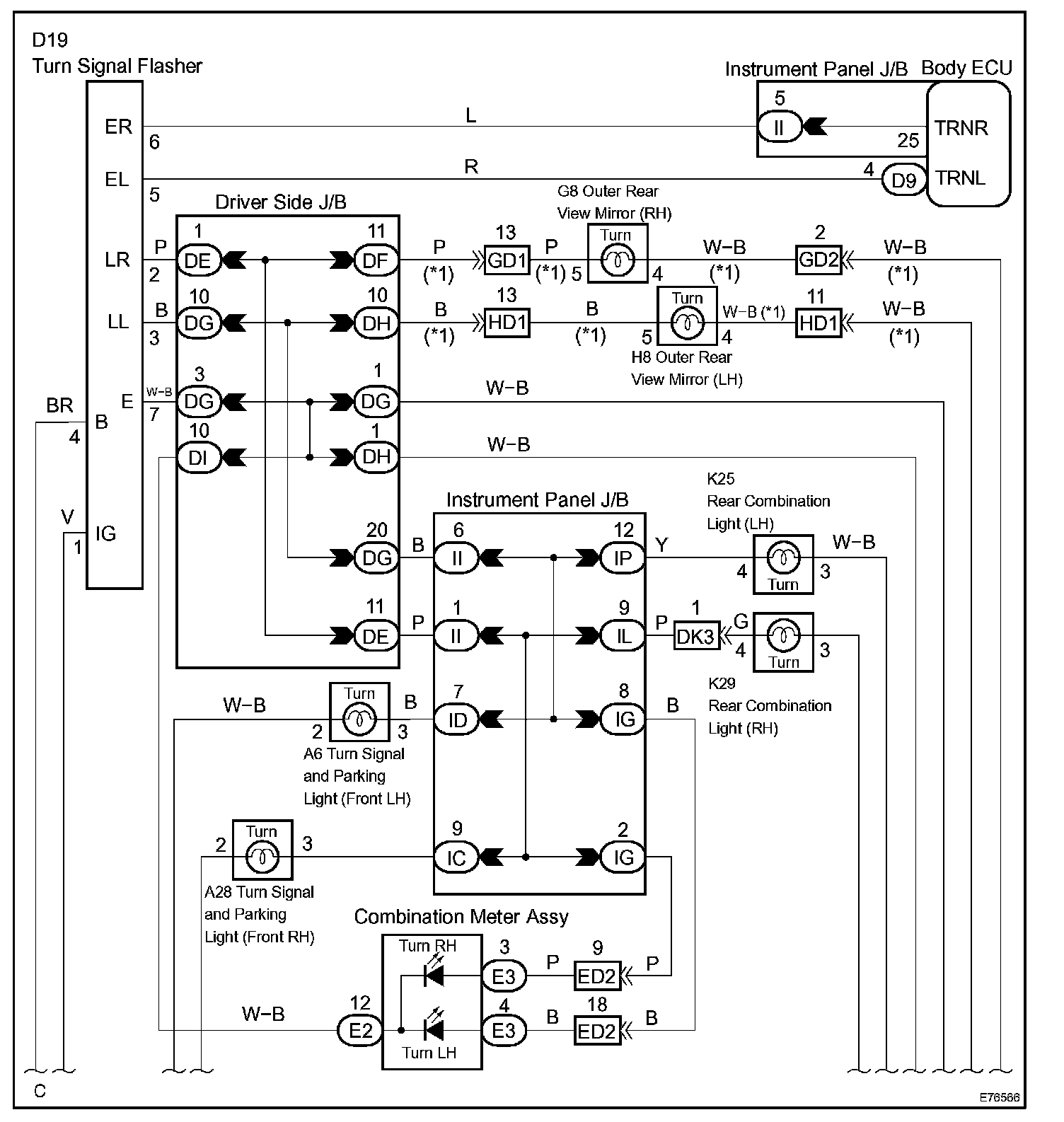

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

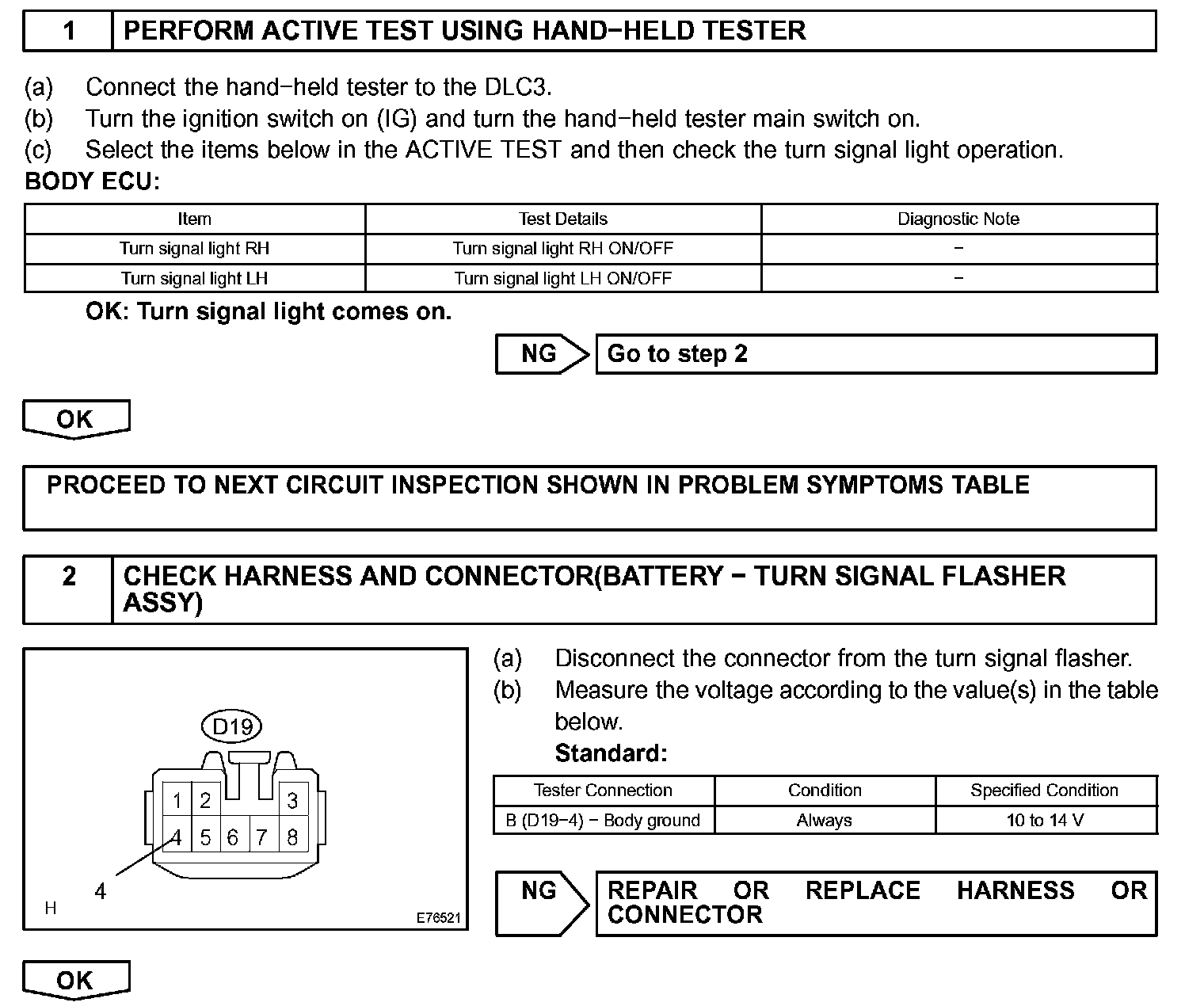

Step 1-2:

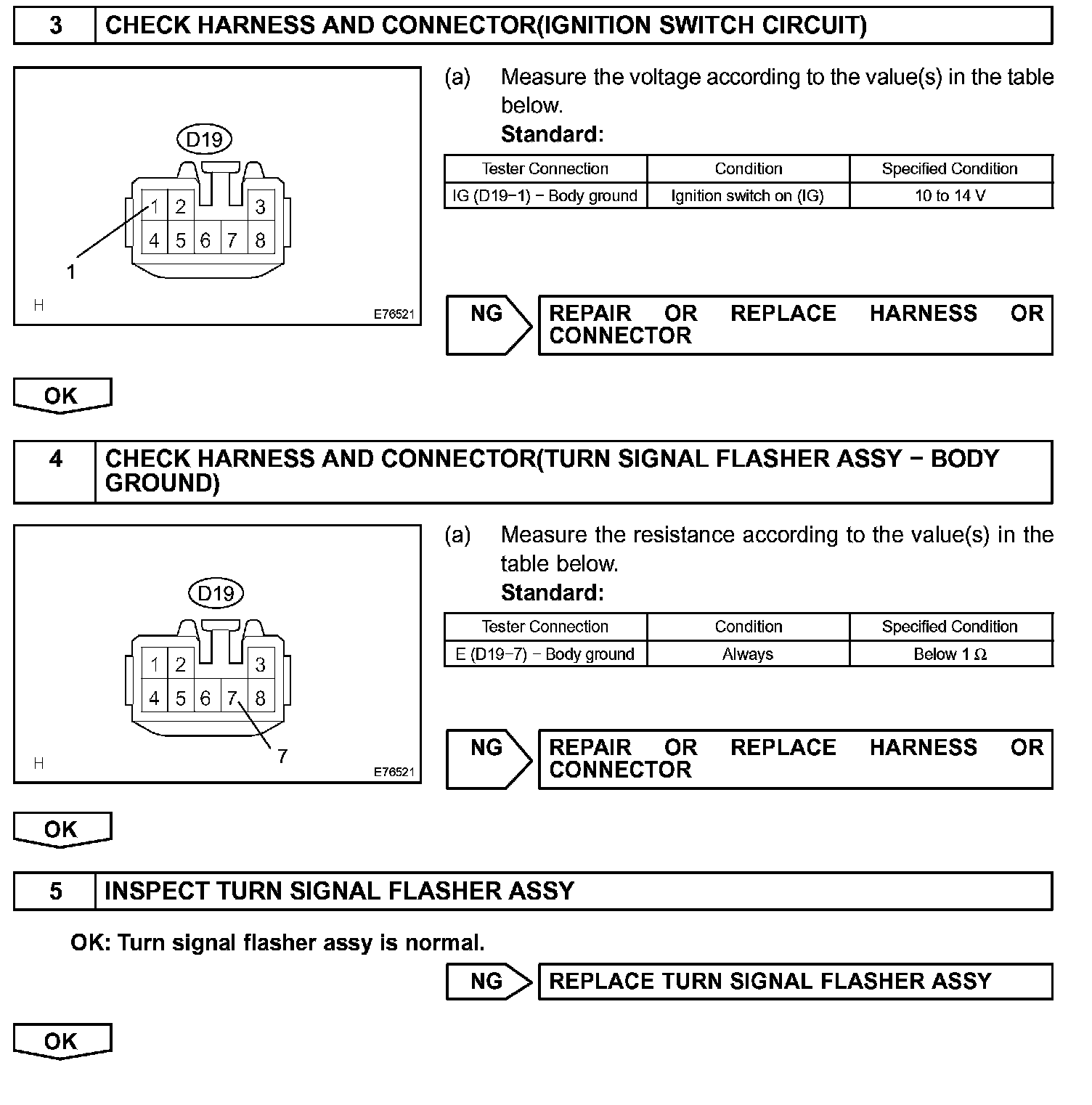

Step 3-5:

Step 6:

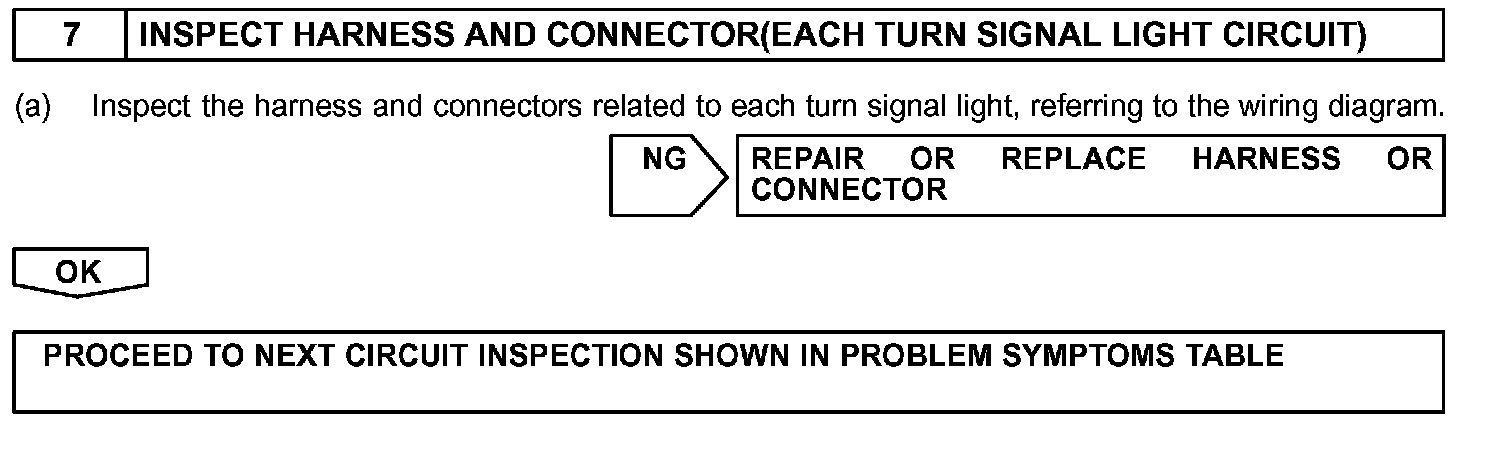

Step 7:

INSPECTION PROCEDURE
